SAIL-M12W-4-5.0T
SAIL-M12W-4-5.0T
Dimensioned drawing
Male, angled
SAIL-M12W-4-5.0T
Pole scheme
Male
SAIL-M12W-4-5.0T
Wiring diagram

SAIL-M12W-4-5.0T

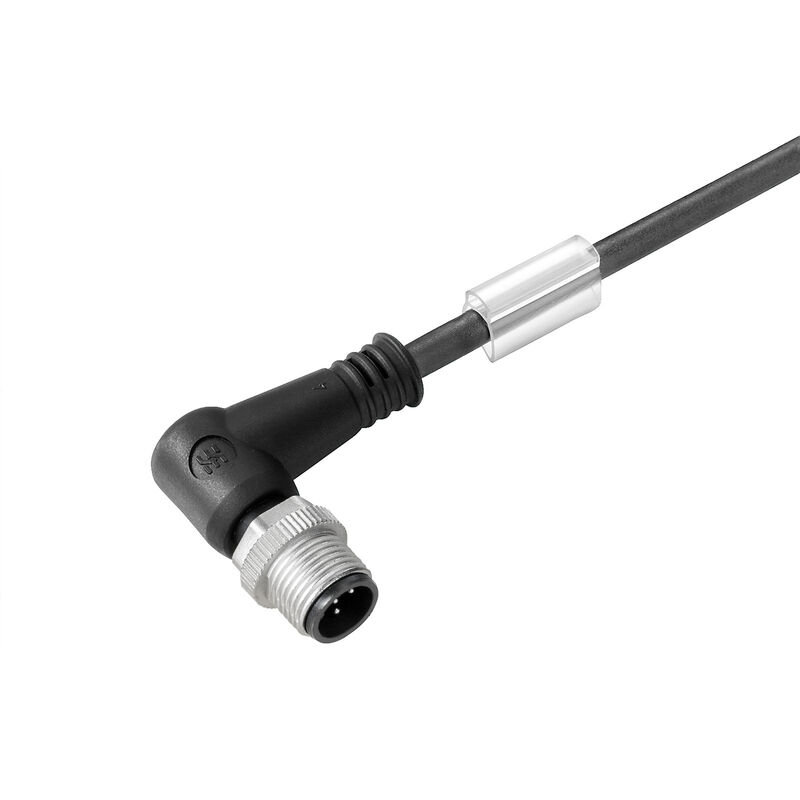

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 5 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt-ID 1021790500
Ladda ner datablad Engineering Support Product Downloads
Aksesuarlar 7 İlgili ürünler 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 5 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Art.nr.
1021790500
Typ
SAIL-M12W-4-5.0T
GTIN (EAN)
4032248735594
Qty.
1 adet

Dimensions and weights

Net weight
159,28 g

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant with exemption
Исключение из RoHS (если применимо/известно)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

PP
Acceleration
5 m/s²
Bending cycles
10 Mio
Bending radius, min., moving
7.5 x cable diameter
Bending radius, min., stationary
4 x cable diameter
Cable length
5 m
Colour coding
brown
white
blue
black
Configurable cable length
No
Core cross-section
0,34 mm²
Halogen
No
Irradiation crosslinked
No
Odolnost proti zkrutu
360 °/m
Outer cladding in accordance with UL AWM style
20233 (80 °C / 300 V)
Outside diameter
4.9 mm ± 0.2 mm
Pólusok száma
4
Resistente a las salpicaduras de soldadura
Yes
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
200 m/s
Suitable for cable carriers
Yes
Temperaturbereich, fest verlegt
-40...105 °C
Temperature range, moving
-30...105 °C
Welding spark resistance
Yes

General technical data

Anslutningsgänga
M12
Coding
A-coded
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
IP68
when screwed in
IP65
IP66
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, 90°

Electrical properties

Névleges feszültség
250 V
Szigetelési ellenállás
108 Ω

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, male contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
