SAIL-VSA-8.0U

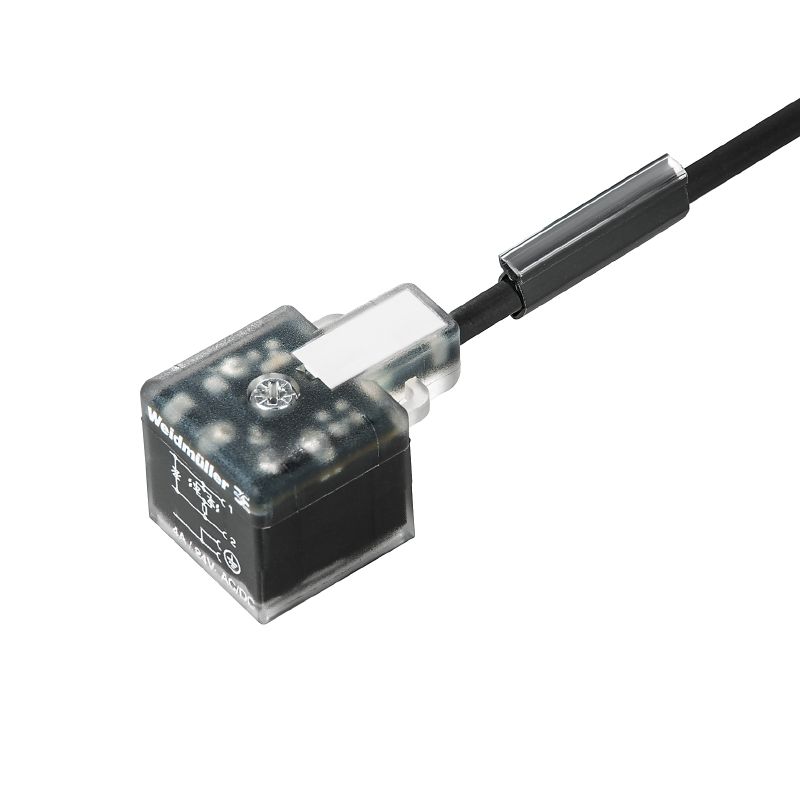

Valve cable (assembled), One end without connector - valve plug, Design A (18 mm), Cable length: 8 m, PUR, black

Product ID 9457710800
Gegevensblad downloaden Engineering Support
Verwante producten 13
Approvals General ordering data Dimensions and weights Environmental Product Compliance Технические характеристики кабеля General technical data Classifications

Approvals

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Versión
Valve cable (assembled), One end without connector - valve plug, Design A (18 mm), Cable length: 8 m, PUR, black
Заказ №
9457710800
Type
SAIL-VSA-8.0U
GTIN (EAN)
4032248826483
Qty.
1 items

Dimensions and weights

Net weight
234,96 g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Технические характеристики кабеля

PP
Acceleration
5 m/s²
Bending cycles
2 Mio
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
8 m
Colour coding
brown
blue
Green/yellow
Core cross-section
0,5 mm²
Diámetro exterior
4.6 mm ± 0.2 mm
Halogen
No
Number of poles
3
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
200 m/s
Suitable for cable carriers
Yes
Temperaturbereich, fest verlegt
-50...80 °C
Temperature range, moving
-25...80 °C
Torsion resistance
0 °/m
Welding spark resistance
No

General technical data

Campo di temperatura custodia
-25…+80 °C
Codage
Design A (18 mm)
Contact surface
tinned
Coppia di serraggio
Mounting screw M3: 0.4 Nm
Courant nominal
4 A
LED
Yes
Matériau des contacts
CuZn
Tension nominale
24 V
Valamennyi szelepcsatlakozó védőáramkörrel ellátott
Zener diode
Version
One end without connector - valve plug
Védelmi osztály
IP67
when screwed in

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-12
ECLASS 15.0
27-06-03-12
