Eigenschappen

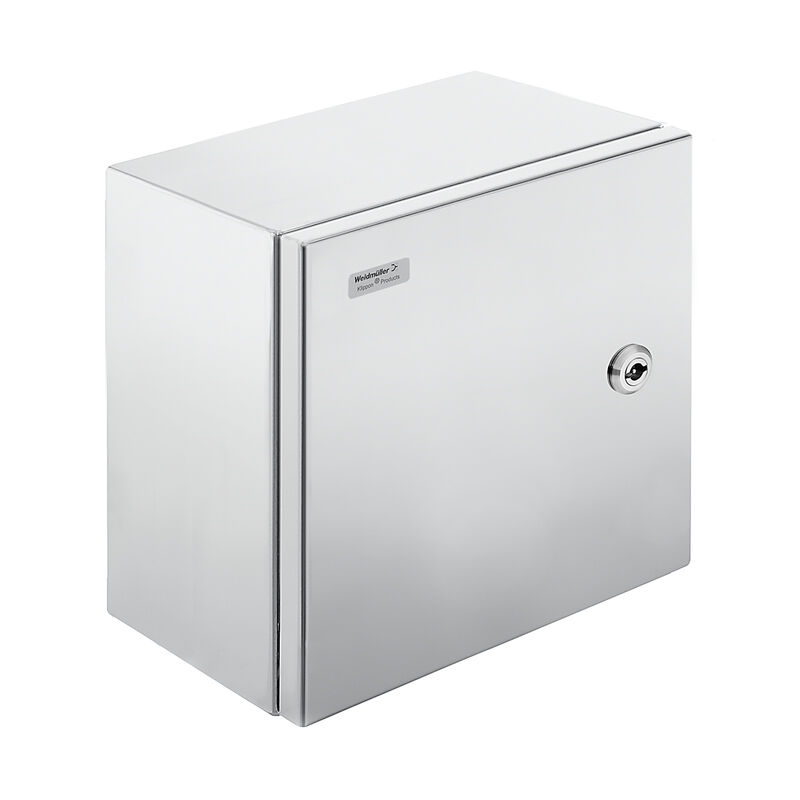

| Version | Klippon EBi QL (Essential Box industrial - Quarter Lock), Enclosures, Height: 300 mm, Width: 300 mm, Depth: 200 mm, Gland plates: Bottom, Material: Stainless steel 1.4301 (304), untreated, silver |
| Order No. | 8000090364 |
| Type | KEBIQL303020S2N1 AL |
| GTIN (EAN) | 4064675855774 |
| Qty. | 1 items |
| Depth | 200 mm |
| Depth (inches) | 7,874 inch |
| Height | 300 mm |
| Height (inches) | 11,811 inch |
| Width | 300 mm |
| Width (inches) | 11,811 inch |
| Net weight | 6.435 g |
| Operating temperature | -40 °C...85 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| M12 | 72 |
| M16 | 45 |
| M20 | 28 |
| M25 | 18 |
| M32 | 15 |
| M40 | 8 |
| M12 | 72 |
| M16 | 45 |
| M20 | 28 |
| M25 | 18 |
| M32 | 15 |
| M40 | 8 |
| M12 | 55 |
| M16 | 36 |
| M20 | 21 |
| M25 | 18 |
| M32 | 8 |
| M40 | 6 |
| Declaration of Conformatiy No. (DoC LVD) | DE PS2650 220428 001ISS00 |
| Enclosure attachment | Installation through the housing rear wall |
| Flange plate | Yes |
| Gland plates | Bottom |
| Impact resistance | 10 J version standard |
| Lid attachment | Quarter-turn fastener with double-bit insert |
| Material | Stainless steel 1.4301 (304) |
| Material thickness of cover | 1,5 mm |
| Material thickness of enclosure | 1,5 mm |
| Material thickness of flange | 3 mm |
| Note: protection class | IP protection is only given after wall mounting using the enclosed sealing washers. |
| Operating temperature, max. | 85 °C |
| Operating temperature, min. | -40 °C |
| Protection degree | IP66 |
| Seal material | Chloroprene |
| Silicone | No |
| Surface finish | untreated |
| WDU 10 / ZDU 10 | 1x20 |
| WDU 16 / ZDU 16 | 1x16 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 2x40 |
| WDU 35 / ZDU 35 | 1x12 |
| WDU 4 / ZDU 4 | 2x33 |
| WDU 6 / ZDU 6 | 2x25 |
| WDU 10 / ZDU 10 | 1x20 |
| WDU 16 / ZDU 16 | 1x15 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 2x40 |
| WDU 35 / ZDU 35 | 1x12 |
| WDU 4 / ZDU 4 | 2x33 |
| WDU 6 / ZDU 6 | 2x25 |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity - Klippon EBi Empty Enclosures - DoC KEBI DE PS2650 220428 001ISS00](https://mdcop.weidmueller.com/mediadelivery/asset/900_256769) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_255370) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8000090364) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000261 |
| ETIM 7.0 | EC000261 |
| ETIM 8.0 | EC000261 |
| ETIM 9.0 | EC000261 |
| ECLASS 9.0 | 27-18-01-01 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-01-01 |
| ECLASS 11.0 | 27-18-01-01 |
| ECLASS 12.0 | 27-18-01-01 |
| ECLASS 13.0 | 27-18-01-01 |
| ECLASS 14.0 | 27-18-01-01 |
| Approvals |  |
| ROHS | Conform |
