Eigenschappen

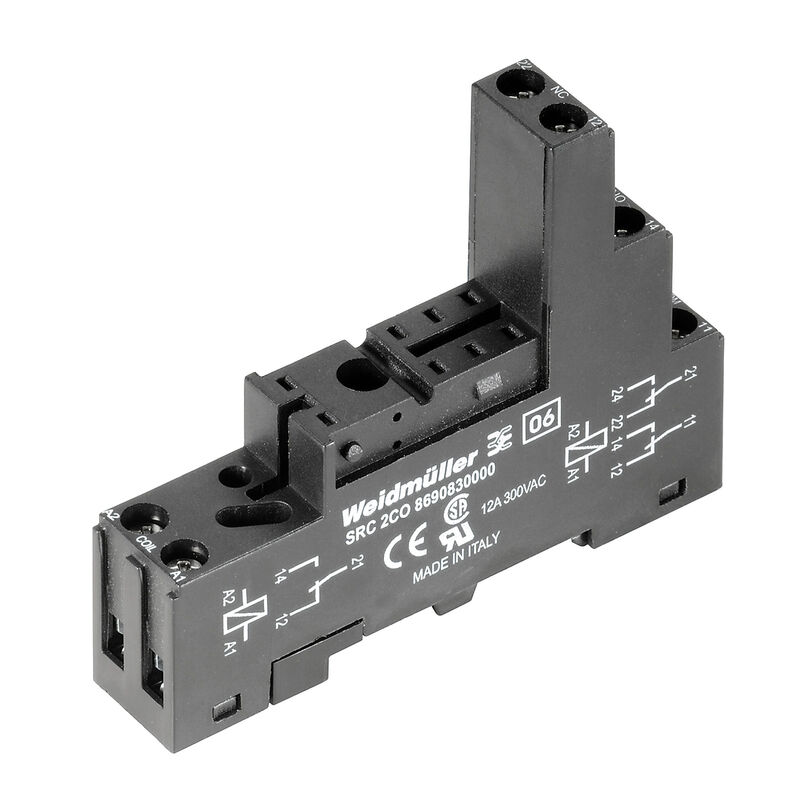

| Version | RIDERSERIES FG, Relay socket, Number of contacts: 2, CO contact, Screw connection |
| Order No. | 8690830000 |
| Type | SRC 2CO |
| GTIN (EAN) | 4032248361519 |
| Qty. | 10 items |

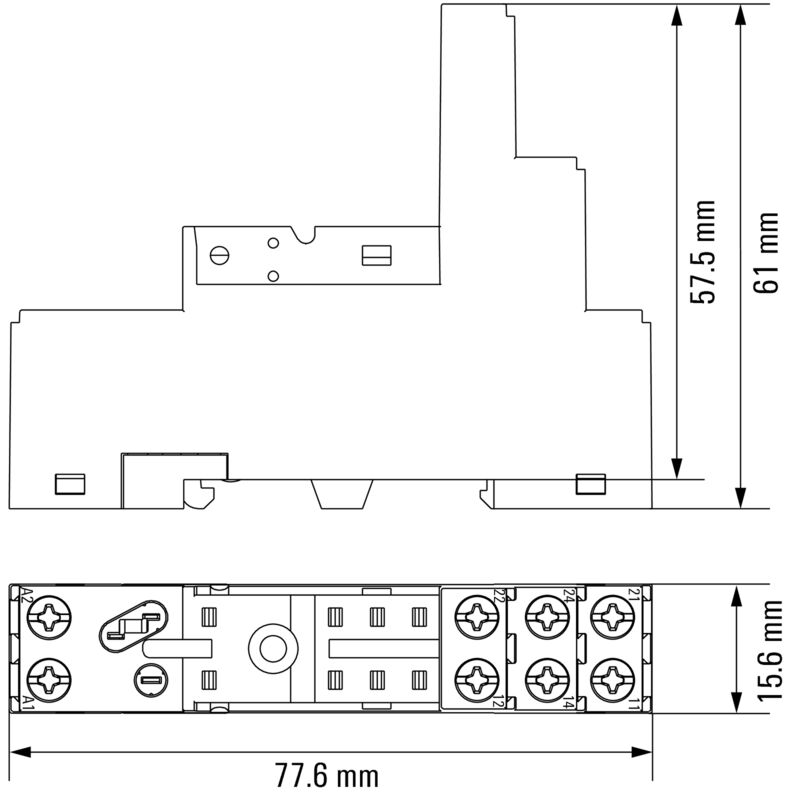

| Depth | 61 mm |
| Depth (inches) | 2,402 inch |
| Height | 77,6 mm |
| Height (inches) | 3,055 inch |
| Width | 15,6 mm |
| Width (inches) | 0,614 inch |
| Net weight | 43,26 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -40 °C...70 °C |
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate No. (cURus) | E223759 |
| Continuous current | 12 A |
| Contact type | 2 CO contact |
| Rail | TS 35 |
| Colour | black |
| Dielectric strength for control side - load side | 2.5 kVeff / 1 Min. |
| Dielectric strength of neighbouring contacts | 2.5 kVeff / 1 Min. |
| Protection degree | IP20 |
| Standards | UL508 |
| Certificate No. (cURus) | E223759 |
| Wire connection method | Screw connection |
| Stripping length, rated connection | 7 mm |
| Tightening torque, min. | 0,5 Nm |
| Tightening torque, max. | 0,8 Nm |
| Clamping range, rated connection | 2,5 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping range, max. | 1,5 mm² |
| Wire cross-section, solid, min. | 0,5 mm² |
| Wire cross-section, solid, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 2,5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0,5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 2,5 mm² |
| Blade size | size PH1 |
| Pitch in mm (P) | 5 mm |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35365) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66691) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8690830000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8690830000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001456 |
| ETIM 7.0 | EC001456 |
| ETIM 8.0 | EC001456 |
| ETIM 9.0 | EC001456 |
| ECLASS 9.0 | 27-37-16-03 |
| ECLASS 9.1 | 27-37-16-03 |
| ECLASS 10.0 | 27-37-16-03 |
| ECLASS 11.0 | 27-37-16-03 |
| ECLASS 12.0 | 27-37-16-03 |
| ECLASS 13.0 | 27-37-16-03 |
| ECLASS 14.0 | 27-37-16-03 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E223759 |
