ZT 2.5/4AN/4 SW

ZT 2.5/4AN/4 SW

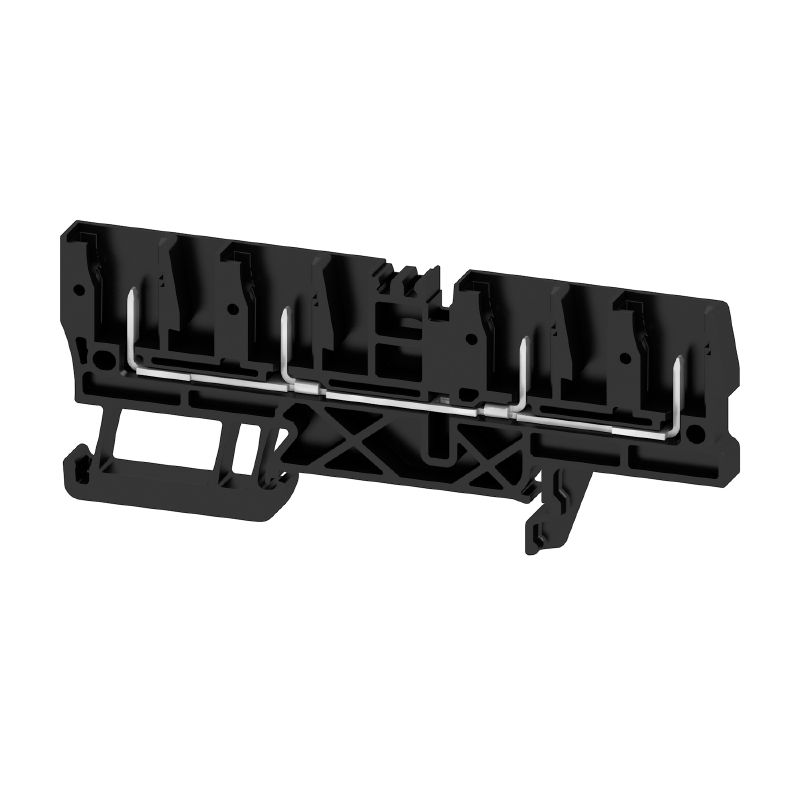

Pluggable terminal, Tension-clamp connection, dark beige, black, 2.5 mm², 24 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35

Product ID 2716230000
Gegevensblad downloaden Product Downloads
Verwante producten 161
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) General Rating data Classifications

Approvals

ROHS
Conform

General ordering data

Ausfuehrung
Pluggable terminal, Tension-clamp connection, dark beige, black, 2.5 mm², 24 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35
Best.-Nr.
2716230000
Type
ZT 2.5/4AN/4 SW
GTIN (EAN)
4050118773217
Qty.
50 Pièce

Dimensions and weights

Depth
34,5 mm
Depth (inches)
1,358 inch
Height
85,5 mm
Height (inches)
3,366 inch
Width
5,1 mm
Width (inches)
0,201 inch
Masa netto
8,96 g

Temperatures

Storage temperature
-25 °C...55 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
dark beige
black
UL 94 flammability rating
V-0

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Počet svěrných bodů na úroveň
4
Levels cross-connected internally
Nein
PE connection
Non
Tartósín
TS 35
PE function
Nie

Additional technical data

Explosion-tested version
No
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Tipo de conexión, conexión adicional
pluggable

Conductors for clamping (rated connection)

Anslutningsarea, flertrådig, max.
4 mm²
Connection cross-section, stranded, min.
0,13 mm²
Connection direction
top
Csupaszolási hossz
10 mm
Numero di collegamenti
4
Przekrój przyłącza przewodu, cienki przewód wielodrutowy z tulejkami kablowymi DIN 46228/1, min.
0,13 mm²
Tipo di collegamento
Tension-clamp connection
Wire connection cross section AWG, max.
AWG 26
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,13 mm²
Сечение подсоединяемого провода, тонкий скрученный, мин.
0,13 mm²
결선 단면규격 AWG, 최소
AWG 30
와이어 결선 단면, 가는 꼬임, 최대
0 mm²
와이어 결선 단면적, 와이어 종단 페룰 DIN 46228/4 채용 가는 꼬임, 최소
0,13 mm²
클램프 범위, 최대
4 mm²
클램프 범위, 최소
0,13 mm²

General

Carril de montaje
TS 35
Sección de conexión del conductor AWG, min.
AWG 30
Wire connection cross section AWG, max.
AWG 26

Rating data

Rated cross-section
2,5 mm²
Rated voltage
500 V
Rated DC voltage
800 V
Nominal current
24 A
Current at maximum wires
24 A
Resistenza di passaggio conforme a IEC 60947-7-x
1,33 mΩ
Степень загрязнения
3

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-17
ECLASS 15.0
27-25-01-17
