SAIE-M23-L-EM
SAIE-M23-L-EM

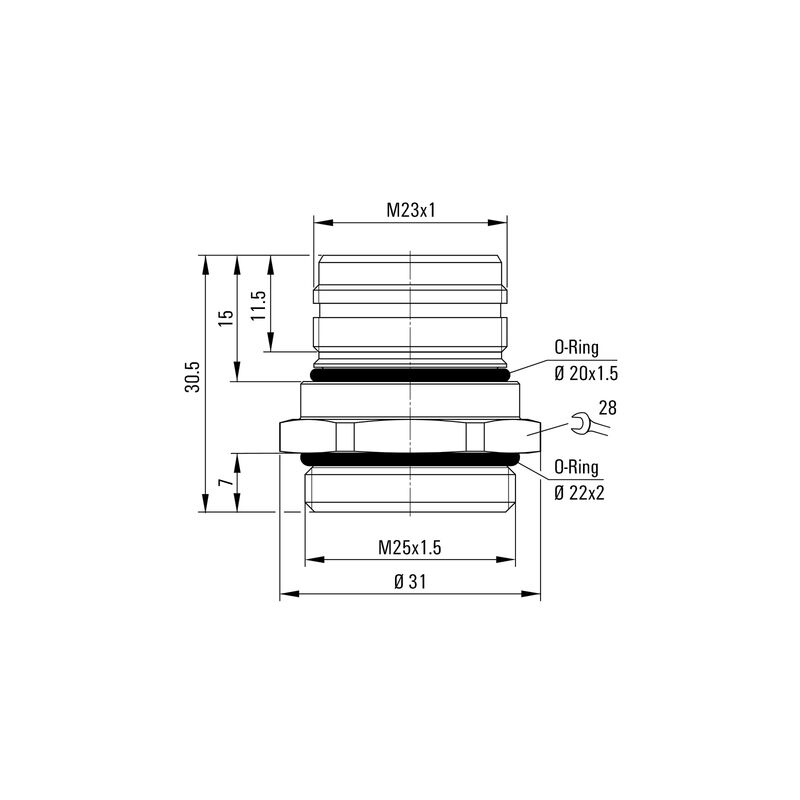

Dibujo acotado

SAIE-M23-L-EM

Dit product is binnenkort niet meer beschikbaar.

Laatste besteldatum: /Date(1798671600000)/

Sensor/Actuator plug-in connector, Built-in plugs, Empty enclosure

Product ID 1170320000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Is accessoire van 4 Verwante producten 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance Tekniska data för konfektionerbara kontaktdon Classifications

Approvals

Сертификаты
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Сертификат № (UR)
E344862

General ordering data

Версия
Sensor/Actuator plug-in connector, Built-in plugs, Empty enclosure
Заказ №
1170320000
Typ
SAIE-M23-L-EM
GTIN (EAN)
4032248962419
Förp.
1 items

Dimensions and weights

Net weight
30,8 g

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Tekniska data för konfektionerbara kontaktdon

Materiale base della custodia
Copper-zinc alloy
Zakres temperatury obudowy
-40…+125 °C
보호 등급
IP67
IP69K
실드 결선
Yes
오염 심각도
3

Classifications

ETIM 8.0
EC003556
ETIM 9.0
EC003556
ETIM 10.0
EC003556
ECLASS 14.0
27-44-02-24
ECLASS 15.0
27-44-02-24
