AP PPT/35

AP PPT/35

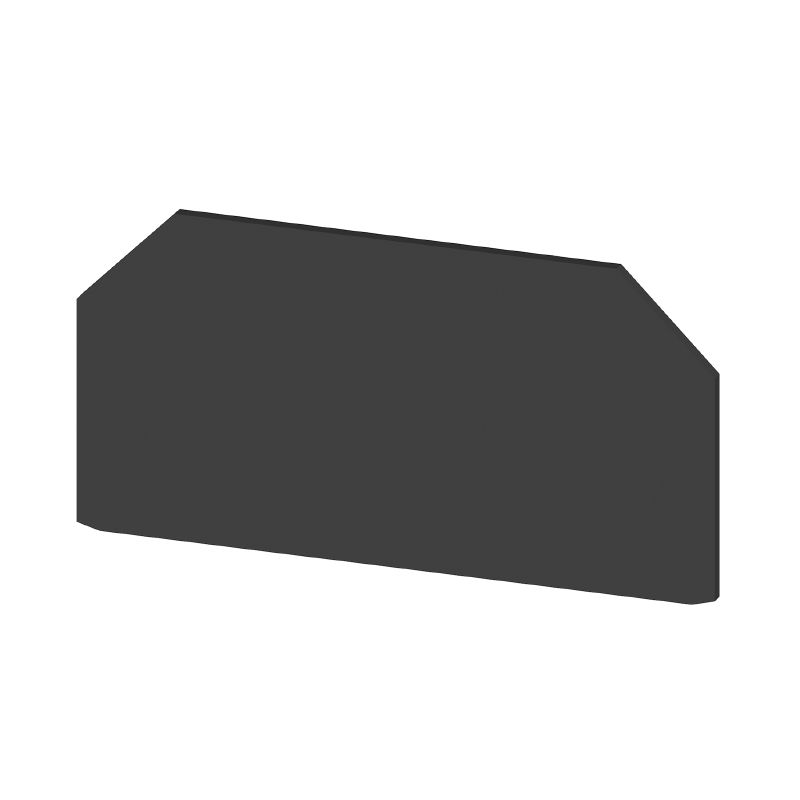

End plate for terminals, Anthracite, Height: 138 mm, Width: 3 mm, V-2, Snap-on: Yes

Ürün No. 3835120000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
aksesuarıdır 2 İlgili ürünler 416
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data General Classifications

Approvals

ROHS
Conform

General ordering data

Version
End plate for terminals, Anthracite, Height: 138 mm, Width: 3 mm, V-2, Snap-on: Yes
Best.-Nr.
3835120000
Type
AP PPT/35
GTIN (EAN)
4008190003364
Qty.
10 adet

Dimensions and weights

Depth
71,15 mm
Depth (inches)
2,801 inch
Hauteur
138 mm
Height (inches)
5,433 inch
Anchura
3 mm
Width (inches)
0,118 inch
Net weight
49,368 g

Temperatures

Tárolási hőmérséklet
-25 °C...55 °C
环境温度
-50 °C…55 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
100 °C

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Färgkod
Anthracite
UL 94 flammability rating
V-2

System specifications

Wykonanie
End plate

Additional technical data

zatrzaskowe
Yes
Указание по установке
Direct mounting

General

設置アドバイス
Direct mounting

Classifications

ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
