Özellikler

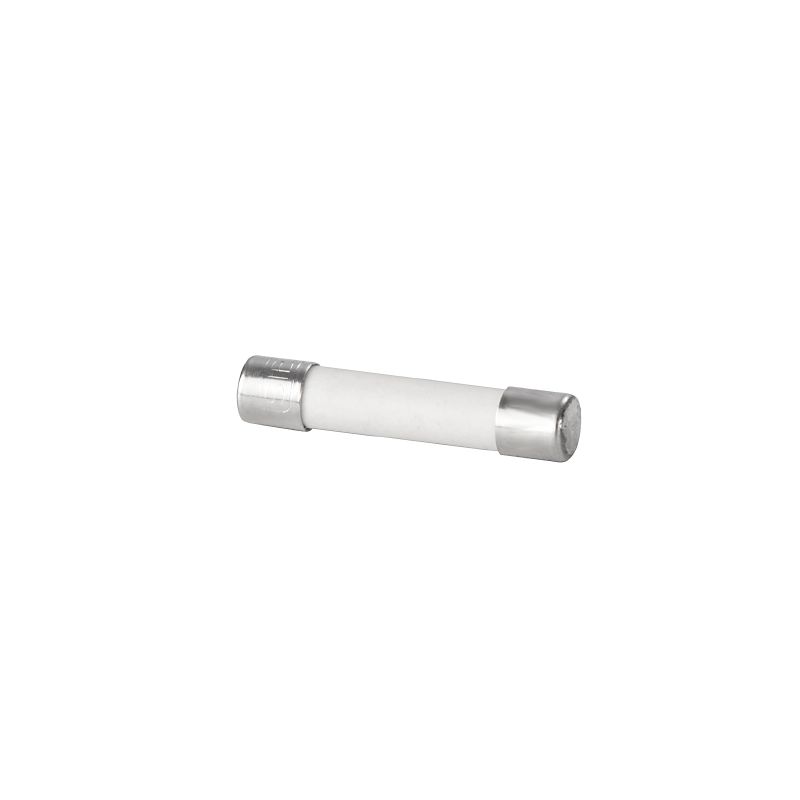

| Version | Miniature fuse, medium time-lag, 0.5 A, G-Si. 5 x 25 |
| Order No. | 0510300000 |
| Type | G 25/0.50A/M WS |
| GTIN (EAN) | 4008190018368 |
| Qty. | 10 adet |
| Depth | 5 mm |
| Depth (inches) | 0,197 inch |
| Height | 25 mm |
| Height (inches) | 0,984 inch |
| Width | 5 mm |
| Width (inches) | 0,197 inch |
| Net weight | 1,18 g |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Colour | Light Grey |
| Version | Fuse accessories |
| Cartridge fuse | G-Si. 5 x 25 |
| Characteristics | medium time-lag |
| Colour | Light Grey |
| Colour of the indicator | white |
| Current | 0,5 A |
| Melting integral | 1,1 A²s |
| Optical function display | Yes |
| Power output (@ 1.5 In) | 0,2 W |
| Rated breaking capacity | 1,5 kA |
| Version | Fuse accessories |
| Voltage drop | 250 mV |
| Rated voltage | 250 V |
| Rated current | 0,5 A |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000035 |
| ETIM 7.0 | EC000035 |
| ETIM 8.0 | EC002704 |
| ETIM 9.0 | EC002704 |
| ECLASS 9.0 | 27-14-20-01 |
| ECLASS 9.1 | 27-14-20-01 |
| ECLASS 10.0 | 27-14-20-01 |
| ECLASS 11.0 | 27-14-20-01 |
| ECLASS 12.0 | 27-14-20-01 |
| ECLASS 13.0 | 27-14-20-01 |
| ECLASS 14.0 | 27-14-20-01 |
| ROHS | Conform |
