Özellikler

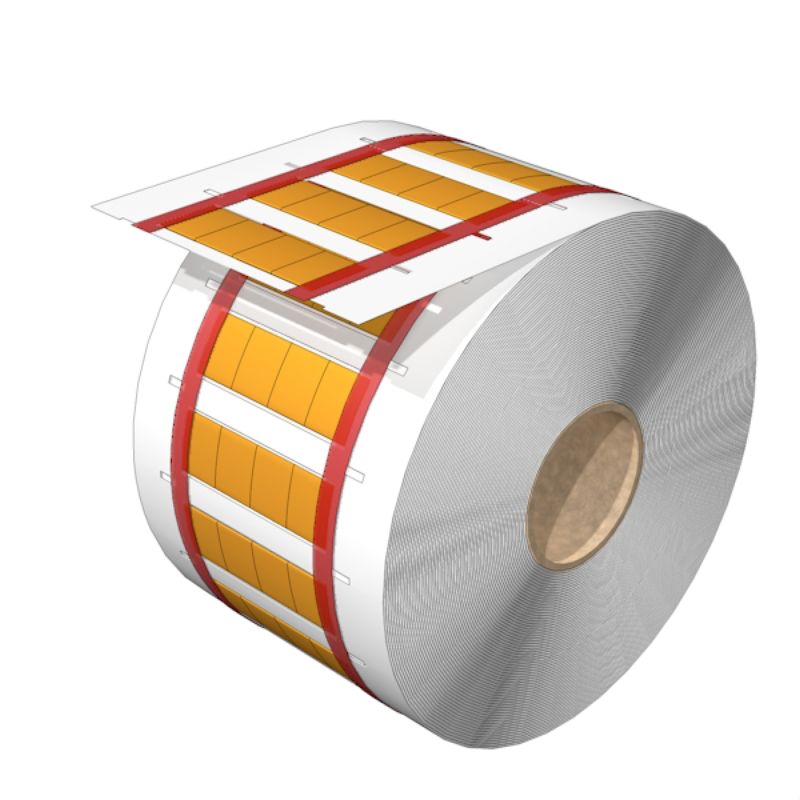

| Version | Conductor and cable markers, 3.2 - 9.5 mm, 12.7 x 16.1 mm, yellow |
| Order No. | 2526140000 |
| Type | HS 3.2-9.5/12 MM Y |
| GTIN (EAN) | 4050118537291 |
| Qty. | 2.000 adet |
| Depth | 0,9 mm |
| Depth (inches) | 0,035 inch |
| Height | 12,7 mm |
| Height (inches) | 0,5 inch |
| Width | 16,1 mm |
| Width (inches) | 0,634 inch |
| Net weight | 0,3 g |
| Operating temperature range | -55...135 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | yellow |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | Yes |
| Material | Polyolefine |
| Number per roll | 2000 |
| Operating temperature range | -55...135 °C |
| Operating temperature range, max. | 135 °C |
| Operating temperature range, min. | -55 °C |
| Recommended industries |
Plant manufacture
Energy Device manufacturer Machinery |
| Width | 16,1 mm |
| Conductor cross-section, max. | 16 mm² |
| Conductor cross-section, min. | 4 mm² |
| Conductor O.D. | 3.2 - 9.5 mm |
| Conductor O.D., max. | 9,5 mm |
| Conductor O.D., min. | 3,2 mm |
| Cross-section for connected wire | 4 - 16 mm² |
| Halogen | Yes |
| Rate of shrinkage | 3:1 |
| Recommended shrinking temperature | 90 °C |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2526140000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
