RJ45C5 R1U 2.8N4G/Y RL
PCB plug-in connector, RJ45 jacks, Cat. 5 , THT/THR solder connection, 90°, Latch option: top, Shield tabs: none, 30...80 µ" Ni / ≥ 30 µ" Au , LED: Yes, green, yellow, Number of poles: 12, Tape
Özellikler
| Version | PCB plug-in connector, RJ45 jacks, Cat. 5 , THT/THR solder connection, 90°, Latch option: top, Shield tabs: none, 30...80 µ" Ni / ≥ 30 µ" Au , LED: Yes, green, yellow, Number of poles: 12, Tape |
| Order No. | 2562950000 |
| Type | RJ45C5 R1U 2.8N4G/Y RL |
| GTIN (EAN) | 4050118571974 |
| Qty. | 200 adet |
| Packaging | Tape |
| Depth | 15,7 mm |
| Depth (inches) | 0,618 inch |
| Height | 16,74 mm |
| Height (inches) | 0,659 inch |
| Height of lowest version | 13,44 mm |

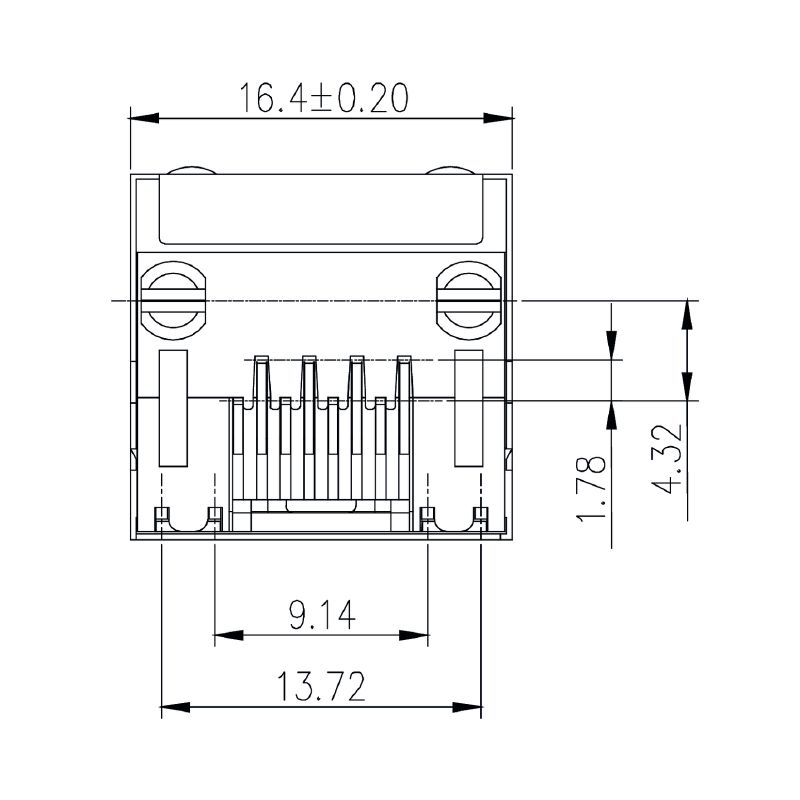

| Width | 16,4 mm |
| Width (inches) | 0,646 inch |
| Net weight | 4,075 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Category | Cat. 5 |
| Colour of left LED | green |
| Colour of right LED | yellow |
| Forward current | 20 mA |
| Forward voltage, max. | 2,6 V |
| Forward voltage, min. | 1,8 V |
| Latch option | top |
| LED | Yes |
| Mounting onto the PCB | THT/THR solder connection |
| Number of poles | 12 |
| Number of solder pins per pole | 1 |
| Outgoing elbow | 90° |
| Performance-Category | Cat. 5 |
| Pitch in inches (P) | 0,05 " |
| Pitch in mm (P) | 1,27 mm |
| Plugging cycles | 750 |
| Product family | OMNIMATE Data - RJ45 modular jack |
| Protection degree | IP20 |
| Shield surface | nickel-plated |
| Shield tabs | none |
| Shielding | Yes |
| Shielding material | Brass |
| Solder eyelet hole diameter (D) | 0,9 mm |
| Solder eyelet hole diameter tolerance (D) | ± 0.1 mm |
| Solder pin dimensions | Octagonal |
| Solder pin length (l) | 2,75 mm |
| Solder pin length tolerance |
|
| Solder pin length tolerance | +0.2 / -0.2 mm |
| Soldering process |
Reflow soldering
Manual soldering Wave soldering |
| Tolerance of solder pin position | ± 0.15 mm |
| Type of connection | Solder connection |
| Wiring | 8-core |
| Dielectric strength, contact / contact | 1000 V DC |
| Dielectric strength, contact / shield | 1500 V DC |
| Insulation strength | ≥ 500 MΩ |
| PoE / PoE+ | conforming to IEEE 802.3at |
| Rated current | 1.5 A |
| Rated voltage | 125 V |
| Connector standard | IEC 60603-7-51 |
| Insulating material | PA 9T |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Insulating material group | II |
| Comparative Tracking Index (CTI) | ≥ 500 |
| Insulation strength | ≥ 500 MΩ |
| Moisture Level (MSL) | 1 |
| UL 94 flammability rating | V-0 |
| Contact base material | Phosphor bronze alloy |
| Contact material | Cu-alloy |
| Contact surface | Gold over nickel |
| Layer structure of plug contact | 30...80 µ" Ni / ≥ 30 µ" Au |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 85 °C |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 85 °C |
| Packaging | Tape |
| VPE length | 356 mm |
| VPE width | 344 mm |
| VPE height | 126 mm |
| Tape reel diameter ∅ (A) | 330 mm |
| Surface resistance | Rs = 109 - 1012 Ω |
| Approval/Certificate/Document of Conformity | [Certificate of Compliance](https://mdcop.weidmueller.com/mediadelivery/asset/900_217537) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212097) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2562950000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
| ETIM 8.0 | EC002637 |
| ETIM 9.0 | EC002637 |
| ECLASS 9.0 | 27-44-04-02 |
| ECLASS 9.1 | 27-44-04-02 |
| ECLASS 10.0 | 27-44-04-02 |
| ECLASS 11.0 | 27-46-02-01 |
| ECLASS 12.0 | 27-46-02-01 |
| ECLASS 13.0 | 27-46-02-01 |
| ECLASS 14.0 | 27-46-02-01 |
| ROHS | Conform |
