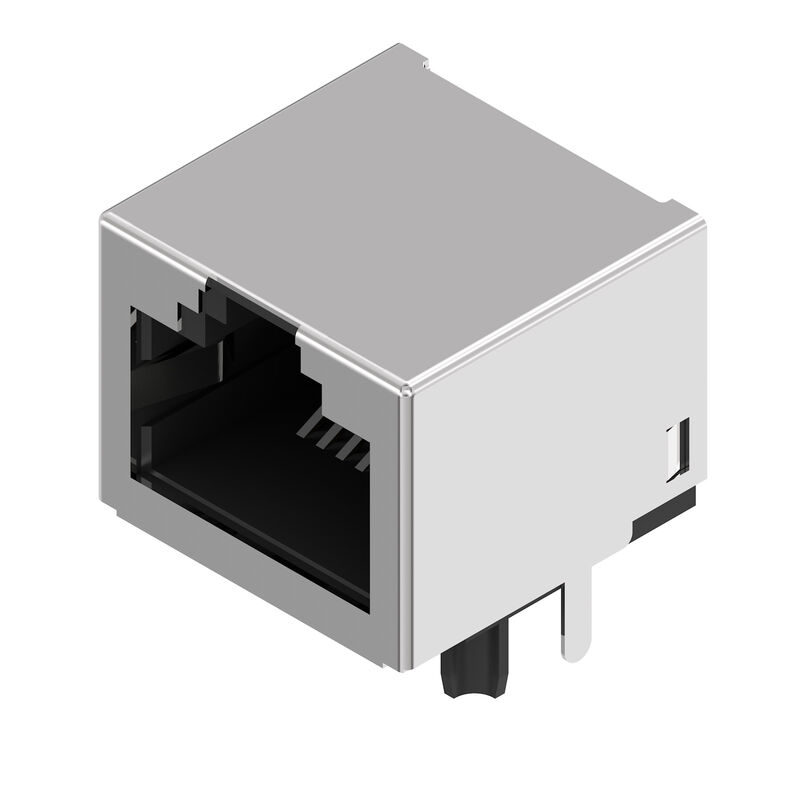

RJ45C5 R1U 2.8N4N RL
PCB plug-in connector, RJ45 jacks, Cat. 5 , THT/THR solder connection, 90°, Latch option: top, Shield tabs: none, 30...80 µ" / ≥ 30 µ" , LED: No, Number of poles: 8, Tape
Özellikler
| Version | PCB plug-in connector, RJ45 jacks, Cat. 5 , THT/THR solder connection, 90°, Latch option: top, Shield tabs: none, 30...80 µ" / ≥ 30 µ" , LED: No, Number of poles: 8, Tape |
| Order No. | 2638490000 |
| Type | RJ45C5 R1U 2.8N4N RL |
| GTIN (EAN) | 4050118657104 |
| Qty. | 200 adet |
| Packaging | Tape |

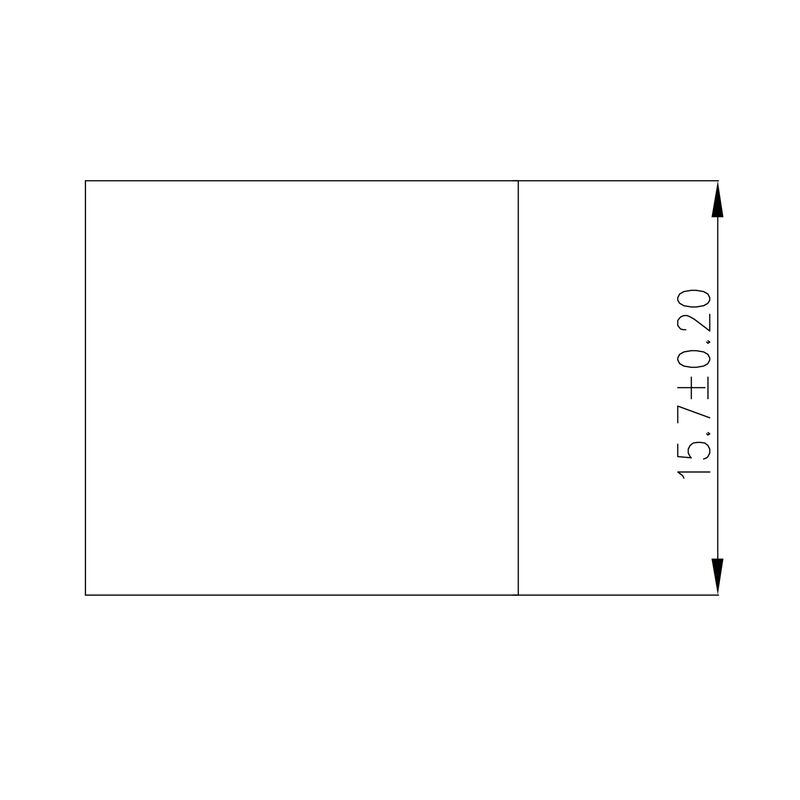

| Depth | 15,7 mm |
| Depth (inches) | 0,618 inch |

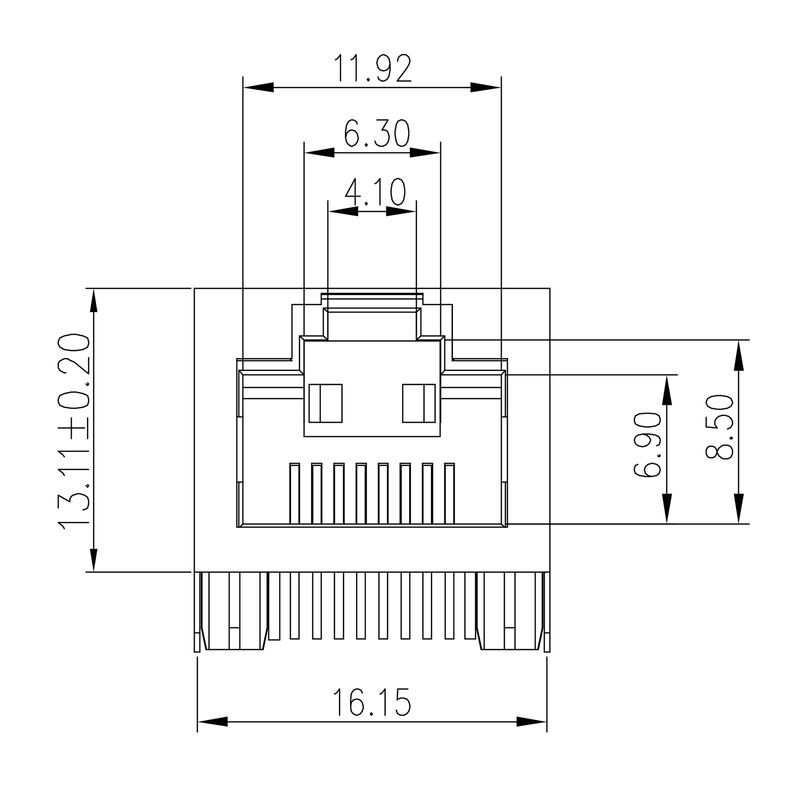

| Height | 13,11 mm |
| Height (inches) | 0,516 inch |
| Width | 16,4 mm |
| Width (inches) | 0,646 inch |
| Net weight | 7,095 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Category | Cat. 5 |
| Latch option | top |
| LED | No |
| Mounting onto the PCB | THT/THR solder connection |
| Number of poles | 8 |
| Outgoing elbow | 90° |
| Performance-Category | Cat. 5 |
| Pitch in inches (P) | 0,04 " |

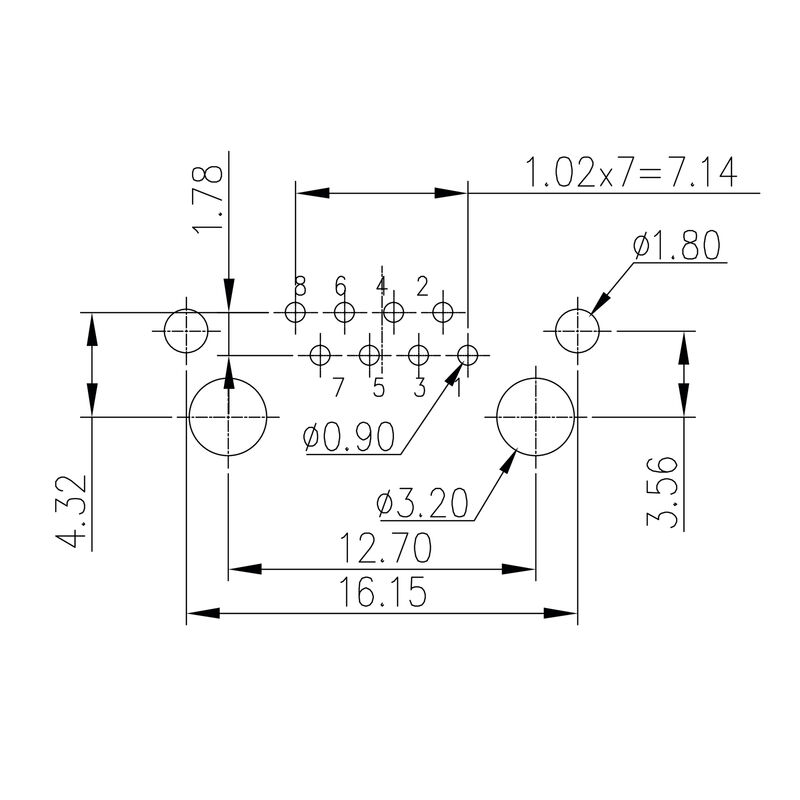

| Pitch in mm (P) | 1,02 mm |
| Plugging cycles | 750 |
| Product family | OMNIMATE Data - RJ45 modular jack |
| Protection degree | IP20 |
| Shield surface | nickel-plated |
| Shield tabs | none |
| Shielding | Yes |
| Shielding material | Brass, nickel-plated |
| Solder pin dimensions | Octagonal |

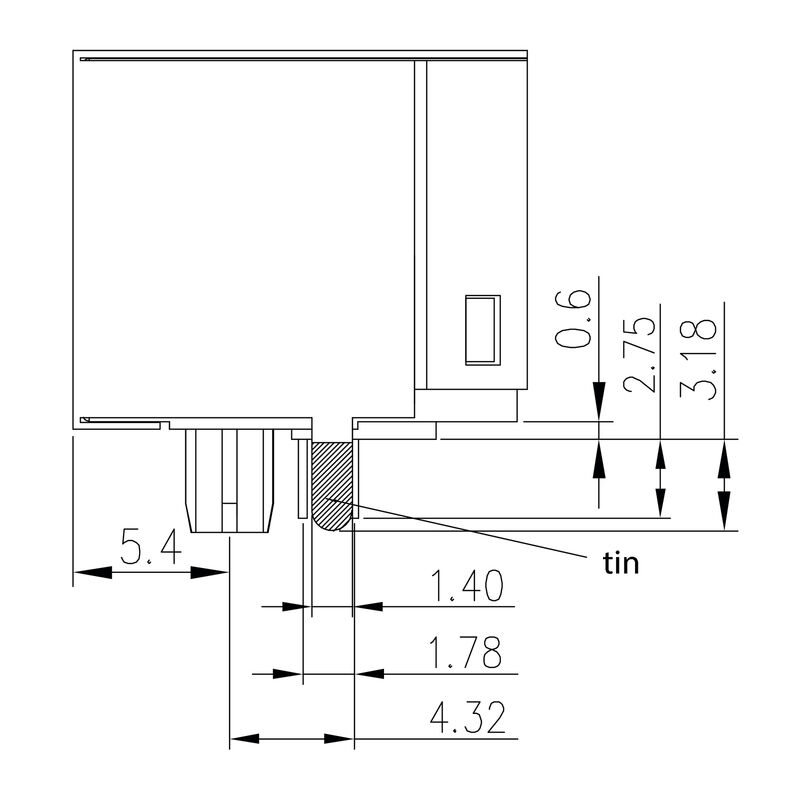

| Solder pin length (l) | 2,8 mm |
| Soldering process |
Reflow soldering
Manual soldering Wave soldering |
| Tolerance of solder pin position | ± 0.1 mm |
| Type of connection | Solder connection |
| Dielectric strength, contact / contact | 1000 V DC |
| Dielectric strength, contact / shield | 1500 V DC |
| Insulation strength | ≥ 500 MΩ |
| PoE / PoE+ | conforming to IEEE 802.3at |
| Rated current | 1.5 A |
| Rated voltage | 125 V |
| Connector standard | IEC 60603-7 |
| Insulating material | PA 9T |
| Colour |
black
Cyan |
| Colour chart (similar) |
RAL 9011
RAL 5018 |
| Insulating material group | II |
| Insulation strength | ≥ 500 MΩ |
| Moisture Level (MSL) | 1 |
| UL 94 flammability rating | V-0 |
| Contact base material | Phosphor bronze alloy |
| Contact material | Cu-alloy |
| Contact surface | Gold over nickel |
| Layer structure of solder connection | 30...80 µ" |
| Layer structure of plug contact | 30...80 µ" / ≥ 30 µ" |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 85 °C |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 85 °C |
| Packaging | Tape |
| VPE length | 357 mm |
| VPE width | 354 mm |
| VPE height | 126 mm |
| Approval/Certificate/Document of Conformity | [Certificate of Compliance](https://mdcop.weidmueller.com/mediadelivery/asset/900_217537) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212144) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
| ETIM 8.0 | EC002637 |
| ETIM 9.0 | EC002637 |
| ECLASS 9.0 | 27-44-04-02 |
| ECLASS 9.1 | 27-44-04-02 |
| ECLASS 10.0 | 27-44-04-02 |
| ECLASS 11.0 | 27-46-02-01 |
| ECLASS 12.0 | 27-46-02-01 |
| ECLASS 13.0 | 27-46-02-01 |
| ECLASS 14.0 | 27-46-02-01 |
| ROHS | Conform |
