Tämä tuote ei ole pian enää saatavana.

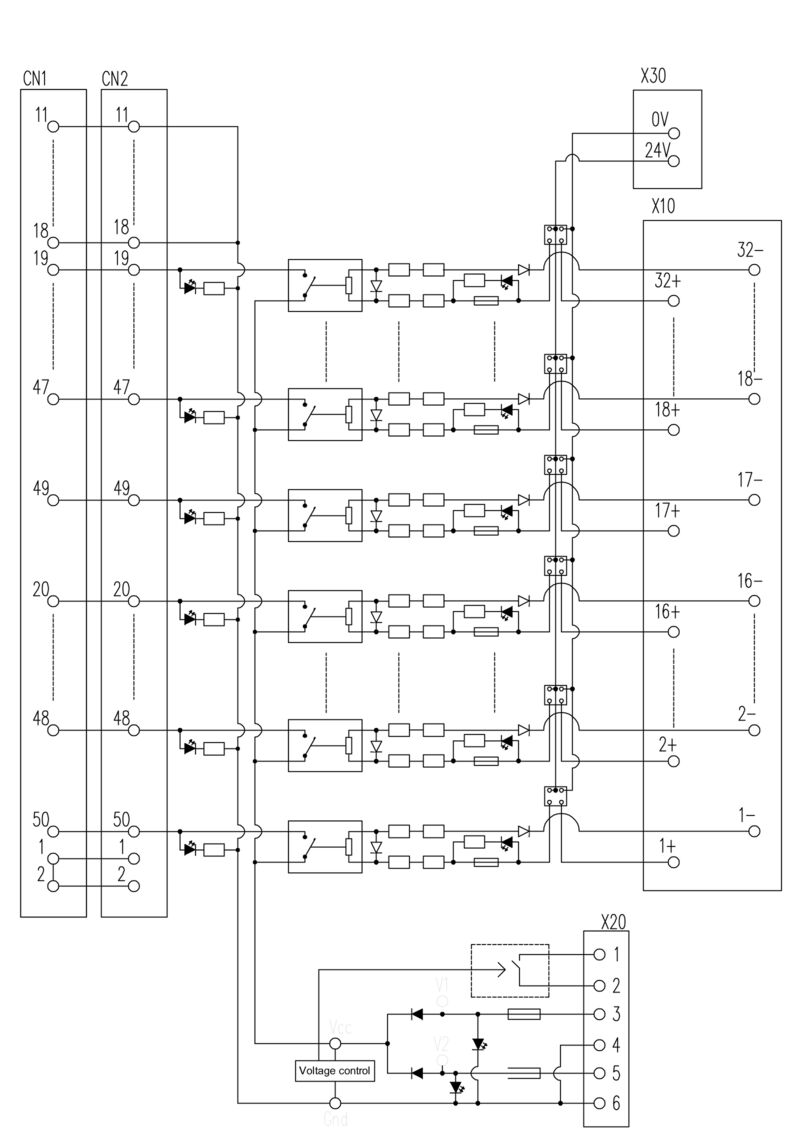

Interface, RS, 2 x AKB (50P), LM2NZF 5.08mm

Tuotteen tunnus 1384320000
Lataa tietosivu Tuotelataukset
Samankaltaiset tuotteet 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Connection data Rating data Ratings data input Ratings data output Coordinate di isolamento (EN50178) Connection field Supply connection Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Megfelel

General ordering data

Version
Interface, RS, 2 x AKB (50P), LM2NZF 5.08mm
Order No.
1384320000
Type
TBY-ADV151-24-PS-2KB-Z
GTIN (EAN)
4050118185539
Qty.
1 items
Estado de entrega
This article will no longer be available in the future.
Last order date
/Date(1770678000000)/

Dimensions and weights

Depth
95 mm
Depth (inches)
3,74 inch
Height
131 mm
Height (inches)
5,157 inch
Width
317 mm
Szerokość (cale)
12,48 inch
Net weight
864,766 g

Temperatures

Storage temperature
-40...85 °C
Operating temperature
-25...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS-Ausnahme (falls zutreffend/bekannt)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
4c2bf777-1c3a-4574-9dcf-a43fbd923cdb

General data

LED status display per relay
green
Trennung pro Relais
No
Contacteur
No
Fusibile per relè
Sí
LED status of the supply voltage
grön
Power supply fuse
1 A

Connection data

Connection (field side)
LM2NZF 5.08mm
Connection on control side
2 x AKB (50P)
Connection supply
LMNZF 5.08mm
Number of poles (control side)
50-pole plug

Rating data

Mechanical service life
5 x 106 switching cycles

Ratings data input

Input voltage
24 V DC ± 10%
Input current
7 mA (fuse on) / 0.5 mA (fuse off)

Ratings data output

Relay type
RSS
Material of contacts
AgNi aranyozott
Max. DC continuous current
10 mA
Minimum contact current
1 mA
Minimum contact voltage
1 V

Coordinate di isolamento (EN50178)

Номинальное входное напряжение
≤ 50 V DC
Nominell utgångsspänning
≤ 50 V DC
Overvoltage category input/input
III
Overvoltage category input/output
III
과전압 범주 출력/출력
III
Pollution severity level
2
Impulsspänningskontroll
1,5 kV
Szigetelésvizsgálati feszültség AC
0,35 kV
Clearance input/output
≥ 5.5 mm

Connection field

Clamping range, max.
2,5 mm²
Clamping range, min.
0,13 mm²
Flexible with sleeve, max.
1,5 mm²
Flexible with sleeve, min.
0,25 mm²
Flexible, max. H05(07) V-K
1,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Max. wire cross-section, AWG
AWG 14
Min. wire cross-section, AWG
AWG 24
Sleeve with plastic collar, max.
1,5 mm²
Solid, max. H05(07) V-U
2,5 mm²
Solid, min. H05(07) V-U
0,2 mm²
Stripping length
7,5 mm
Type of connection
Tension-clamp connection

Supply connection

Type of connection
Tension-clamp connection
Clamping range, min.
0,13 mm²
Clamping range, max.
2,5 mm²
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
2,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
1,5 mm²
Flexibel med hylsa, max.
1,5 mm²
Flexible with sleeve, min.
0,25 mm²
Ferrule with plastic collar, max.
1,5 mm²
Wire cross-section, min. AWG
AWG 14
Wire cross-section, max. AWG
AWG 24
Lunghezza di spellatura
7,5 mm

Classifications

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
