SAIE-M12B-5S-13/14SMT
Similar to illustration
SAIE-M12B-5S-13/14SMT
Dimensioned drawing
SAIE-M12B-5S-13/14SMT
Pole scheme
M12 = A-coded
SAIE-M12B-5S-13/14SMT

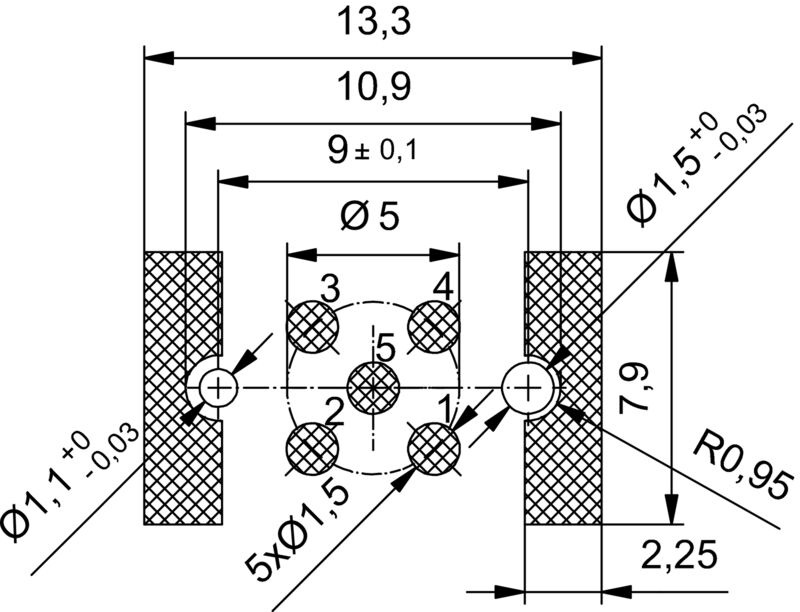

PCB design

SAIE-M12B-5S-13/14SMT

Built-in plugs, M12, Mounting thread: M 14, Number of poles: 5, Strand / cable length:

Ürün No. 2423140000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 26
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data of PCB plug-in connector General Info Material data System parameters Classifications

Approvals

ROHS
Conform

General ordering data

Versione
Built-in plugs, M12, Mounting thread: M 14, Number of poles: 5, Strand / cable length:
Référence
2423140000
Tipo
SAIE-M12B-5S-13/14SMT
GTIN (EAN)
4050118432008
Qty.
25 adet

Dimensions and weights

Net weight
7,885 g

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data of PCB plug-in connector

Coding
A-coded
Gehäuseoberfläche
nickel-plated
Housings
M12 socket
Installation height
13 mm
Mounting thread
M14
Number of poles
5
Schirmanschluss
Yes
Nominal voltage
60 V
Rated voltage
250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
Nominal current
4 A
Rated current
4 A (4- and 5-pole) / 2 A (8-pole)
Temperature range
-30…80 °C
Protection degree
IP67
Povrch kontaktu
Au (Gold)
Housing main material
CuZn
nickel-plated
Connection thread
M12
Tightening torque
M12: 0.8 Nm
Mounting thread
M 14
Montagedrehmoment
  • max.:
    1,2 Nm
Montagedrehmomentbereich
1.2 Nm
Mounting onto the PCB
SMD solder connection
Odpor izolace
100 MΩ
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn

General Info

Number of poles
5
Housing main material
CuZn
nickel-plated
Connection thread
M12
Contact material
Cu-alloy
Povrch kontaktu
Au (Gold)
Protection degree
IP67
Plugging cycles
≥ 100

Material data

Contact material
Cu-alloy
Contact surface
Au (Gold)

System parameters

Mounting onto the PCB
SMD solder connection
Insulation resistance
100 MΩ
Number of poles
5
Pin series quantity
1
Plugging cycles
≥ 100
Protection degree
IP67

Classifications

ETIM 8.0
EC003568
ETIM 9.0
EC003568
ETIM 10.0
EC003568
ECLASS 14.0
27-44-01-10
ECLASS 15.0
27-44-01-10
