Properties

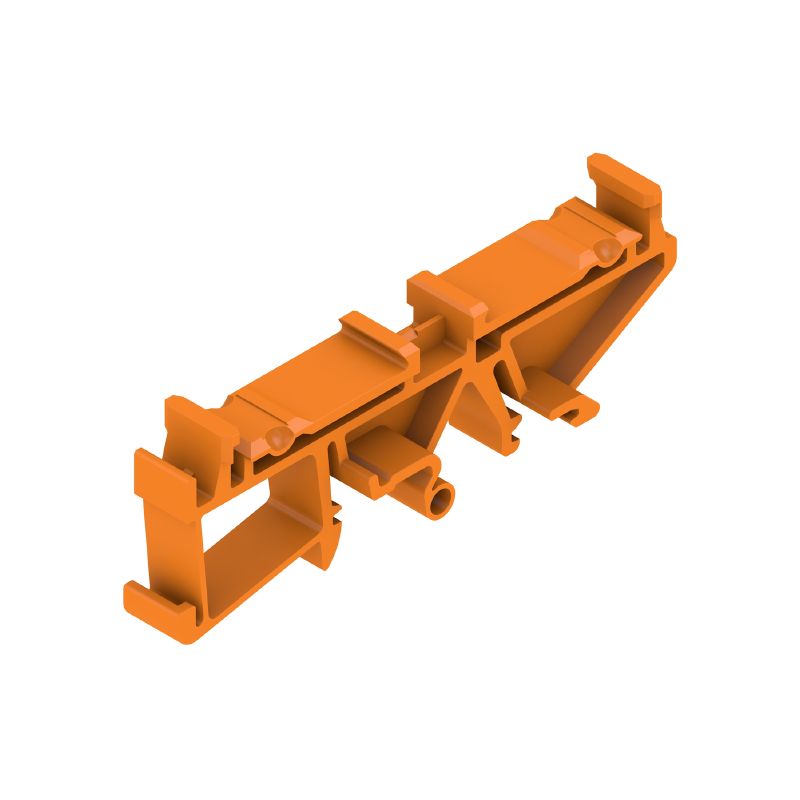

| Version | Mounting rail housing orange, Clip-in foot for RS 80/90/100, Width: 17.5 mm |
| Order No. | 1324460000 |
| Type | RF 180 OR 1665 |
| GTIN (EAN) | 4008190159870 |
| Qty. | 20 items |
| Depth | 26.6 mm |
| Depth (inches) | 1.047 inch |
| Height | 79.2 mm |
| Height (inches) | 3.118 inch |
| Width | 17.5 mm |
| Width (inches) | 0.689 inch |
| Net weight | 5.954 g |
| Operating temperature range | -50 °C ... 100 °C |
| Insulating material | PA 66 |
| UL 94 flammability rating | V-2 |
| Colour | orange |
| Colour chart (similar) | RAL 2000 |
| Encapsulation option | No |
| Protection degree |
IP20
IP00 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_99230) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1324460000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1324460000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1324460000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL ANALO.SIGN.CONV. EN](http://download.weidmueller.com/asset/download/file/38237)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 7.0 | EC002779 |
| ETIM 8.0 | EC002779 |
| ETIM 9.0 | EC002779 |
| ECLASS 11.0 | 27-18-27-92 |
| ECLASS 12.0 | 27-18-27-92 |
| ECLASS 13.0 | 27-19-06-05 |
| ROHS | Conform |
