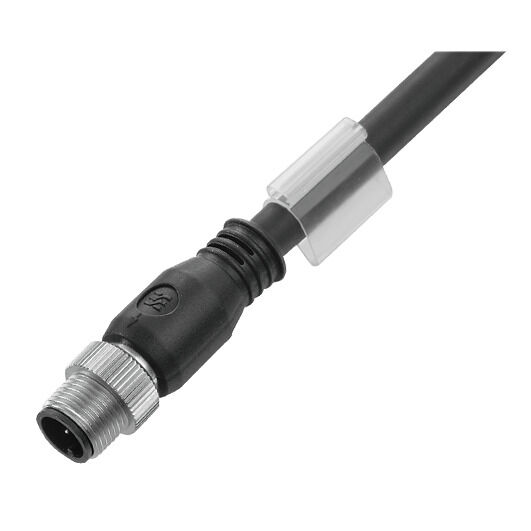

SAIL-M12G-4S0.2U
SAIL-M12G-4S0.2U
Dimensioned drawing
Male, straight
SAIL-M12G-4S0.2U
Pole scheme
M12 = A-coded
SAIL-M12G-4S0.2U
Wiring diagram

SAIL-M12G-4S0.2U

Bu ürün yakında mevcut olmayacak.

Datum der letzten Bestellung: /Date(1790719200000)/

Alternative product: 1906480070

센서/액추에이터 라인, 커넥터 없는 한쪽 끝, M12, 폴 수 : 4, 0.2 m, 핀, 직선형, 차폐: 예, LED: 아니요, 외피 재질: PUR, 할로겐: 아니요

Cikkszám 1906480020
Adatlap letöltése Supporto ingegneristico Download dei prodotti
Lisävarusteet 6 Samankaltaiset tuotteet 6
Tanúsítványok 일반 주문 데이터 Dimensions and weights Termékek környezetvédelmi megfelelősége Technical specifications for cable General technical data Elektrické vlastnosti General standards Standards Plug, left Plug, right Изображения продукции Klasyfikacje

Tanúsítványok

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Соответствовать
UL File Number Search
[Witryna UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

일반 주문 데이터

Version
센서/액추에이터 라인, 커넥터 없는 한쪽 끝, M12, 폴 수 : 4, 0.2 m, 핀, 직선형, 차폐: 예, LED: 아니요, 외피 재질: PUR, 할로겐: 아니요
Order No.
1906480020
Type
SAIL-M12G-4S0.2U
GTIN (EAN)
4050118292992
Ilość
1 szt.
Delivery status
Dieser Artikel ist demnächst nicht mehr lieferbar.
Datum der letzten Bestellung
/Date(1790719200000)/
Alternative product
[1906480070](~/p/1906480070)

Dimensions and weights

Net weight
20,24 g

Termékek környezetvédelmi megfelelősége

RoHS Compliance Status
準拠 (免除あり)
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
2 Mio
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
0,2 m
Cable Material
PUR halogen-free
Colour coding
black
brown
white
blue
Configurable cable length
No
Core cross-section
0,34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Drain wire integrated
No
Halogen
No
Hybrid cable
No
Hydrolysis and microbe resistant
Ano
Insulation
PP
Irradiation crosslinked
No
LABS-free
Sì
Length of torsion
1 m
Number of poles
4
Number of wires
4
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
5.4 mm ± 0.2 mm
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistant to welding beads
No
Sheath material
PUR
Sheath material hygroscopic
No
Sheathing colour
black
Shielded
Yes
Speed
3 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-25...80 °C
Temperature range, stationary
-40...80 °C
Torsion resistance
180 °/m
Welding spark resistance
Non

General technical data

Coding
A-coded
Connection thread
M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
109 Ω
jumpered
No
LED
아니요
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
im verschraubten Zustand
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0,8 - 1,2 Nm
Version
pin, straight

Elektrické vlastnosti

Insulation resistance
109 Ω
Nominal voltage
250 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, shielded

Plug, right

Plug right
volný konec vodiče
