Egenskaber

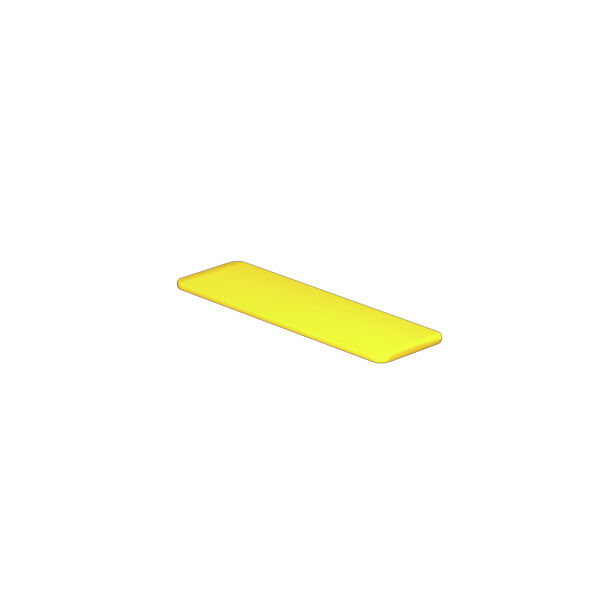

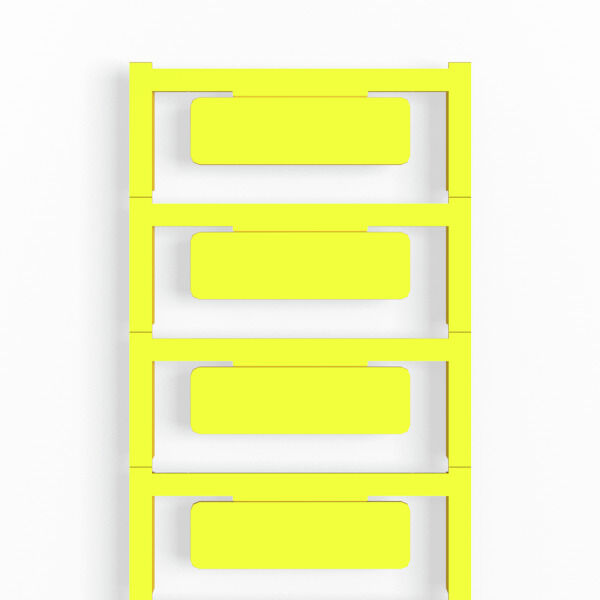

| Version | ClipCard, Device markers, 15 x 49 mm, yellow |
| Order No. | 1131970000 |
| Type | CC 15/49 K MC NE GE |
| GTIN (EAN) | 4032248912124 |
| Qty. | 40 Styk |
| Depth | 1,2 mm |
| Depth (inches) | 0,047 inch |
| Height | 15 mm |
| Height (inches) | 0,591 inch |
| Width | 49 mm |
| Width (inches) | 1,929 inch |
| Net weight | 3,025 g |
| Operating temperature range | -40...60 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Adhesive | Double-sided adhesive tape |
| Colour | yellow |
| compatible printer |
[PRINTJET CONNECT](~/p/2715590000)
[MCP PLUS](~/p/1925000000) |
| Halogen | No |
| Material | Polyamide 66 |
| Material colour according to resistance code | 4 |
| Number of markers per combination | 1 MultiCard = Device markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...60 °C |
| Operating temperature range, max. | 60 °C |
| Operating temperature range, min. | -40 °C |
| Recommended industries | Machinery |
| UL 94 flammability rating | V-2 |
| Version | Self-adhesive |
| Width | 49 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60498) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1131970000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1131970000) |
| Product Change Notification |
[MultiCard Material modification](https://mdcop.weidmueller.com/mediadelivery/asset/900_308560)
[MultiCard Material Modifikation](https://mdcop.weidmueller.com/mediadelivery/asset/900_308561) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
