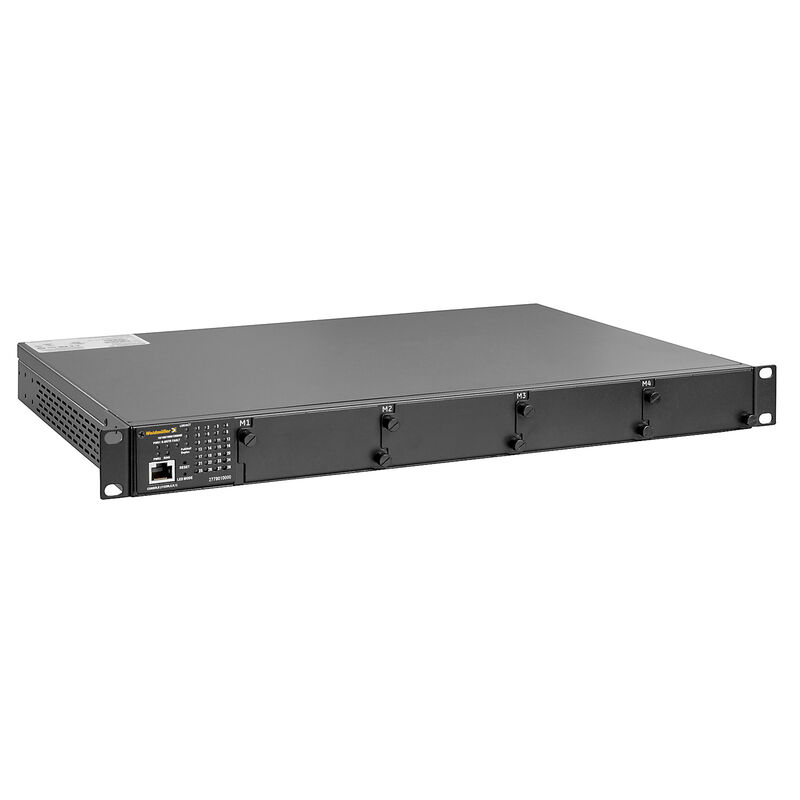

IE-SW-L3-SL28M-LV

Layer 3 Network Switch, Modular, 19" rack mount, managed, Fast/Gigabit/10-Gigabit Ethernet, IEC 61850-3 / IEEE 1613, low voltage, Number of ports: up to 28 (depending on used media interface modules), IP30, -40 °C...85 °C

Produkt ID 2875590000

Egenskaber

General ordering data

Version	Layer 3 Network Switch, Modular, 19" rack mount, managed, Fast/Gigabit/10-Gigabit Ethernet, IEC 61850-3 / IEEE 1613, low voltage, Number of ports: up to 28 (depending on used media interface modules), IP30, -40 °C...85 °C
Order No.	2875590000
Type	IE-SW-L3-SL28M-LV
GTIN (EAN)	4064675654704
Qty.	1 Styk

Dimensions and weights

Depth	325 mm
Depth (inches)	12,795 inch
Height	44 mm
Height (inches)	1,732 inch
Width	440 mm
Width (inches)	17,323 inch
Net weight	6.161 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...85 °C
Humidity	5 to 95 % (non-condensing)

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	9229992a-00b9-4096-8962-200a7f33e289

PN48 ISwitch Filter criteria

Highest speed	10 Gigabit Ethernet
Industrial protocol support	Modbus/TCP PROFINET CC-B MMS server
Input voltage type	DC
Mounting type	Rack- mount
Type of switch	Managed Layer 3

EMC conformity and approvals

EMC standards	EN 55032 CISPR 22 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2 EN 61000-3-3 FCC Part 15 Subpart B Class A EN 55035 IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 3 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V
Free fall	IEC 60870-2-2 class Cm
Power Transmission & Distribution Systems acc. to standard	IEEE 1613 IEC 61850-3
Safety standard	SELV according to EN 62368-1
Shock	IEC 60870-2-2 class Cm
Vibration	IEC 60870-2-2 class Cm and class Bm

Environmental conditions

Humidity	5 to 95 % (non-condensing)
Operating altitude	Altitude, max.: 2.000 m Note: in acc. with UL Altitude, max.: 6.000 m Note: for restrictions, see the manufacturer's declaration for operating altitude in section downloads
Operating temperature, max.	85 °C
Operating temperature, min.	-40 °C
Storage temperature, max.	85 °C
Storage temperature, min.	-40 °C

Guarantee

Time interval

5 years

Interfaces

Console port interface	RS-232 (RJ45 connector)
Function reset button	<5 sec: System reboot and set LAN IP to factory Default >5 sec: Factory default
Number of ports	up to 28 (depending on used media interface modules)
Supported media interface modules	Media module interface slot: M1, M2, M3 Supported module: 2779170000, 2779170000, 2779170000, 2779170000, 2779170000, 2779170000, 2779170000 Media module interface slot: M4 Supported module: 2779200000, 2779200000, 2779200000

Management features

Device configuration	Webbrowser (HTTP/HTTPS) SNMP v1/v2c/v3 Local serial console port (RS-232 via RJ-45 port) Upload of a configuration file via web-interface, TFTP-Server or external backup module Command Line Interface (Telnet/SSH)
Monitoring function	SNMP v1/v2c/v3 Link Layer Discovery Protocol (LLDP) Ethernet cable diagnostics on RJ-45 ports Port mirroring (local, remote) Port statistics Port monitoring Syslog RMON (Remote monitoring) Event based warning via E-Mail Event based warning via relay Event based warning via SNMP trap
Network redundancy	Spanning Tree Protocol (STP) Rapid Spanning Tree Protocol (RSTP) Multiple Spanning Tree Protocol (MSTP) O-Ring (recovery time <10/30 ms at Fast/Gigabit Ethernet interface) O-Chain (recovery time <10/30 ms at Fast/Gigabit Ethernet interface) Link Aggregation Control Protocol (LACP) Fast recovery Media Redundancy Protocol (MRP-client) Parallel Redundancy Protocol (PRP) / High-availability Seamless Redundancy (HSR) RedBox function (specific media interface module required)
Network traffic filter	Quality of Service (QoS) Tag based VLAN GVRP (GARP VLAN Registration Protocol) IGMP v2/v3 Traffic Rate Limiting Differentiated Services Code Point (DSCP) Specific prioritization of GOOSE and Sampled Value messages
IP-address management	Static DHCP-Client DHCP-Server (port based, pool-based) DHCP Option 82 DHCP-Relay
Security functions	VLAN segmentation Enable/disable ports TACACS+ and IEEE 802.1X User Authentication DoS/DDoS auto prevention Access Control List DHCP snooping Loop protection Management access security via privilege level configuration for different user roles
Time synchronization management	SNTP server SNTP client PTPv2
Industrial protocol support	PROFINET device acc. to conformance class B Modbus/TCP slave MMS server
Layer 3 support	Static or dynamic routing according to RIP v2 VRRP (Virtual Router Redundancy Protocol)

MTBF

MTBF	According to Standard: Telcordia SR-332 Operating time (hours), min.: 608.907 h

Power supply

Connection type	1x 10-pin fork/ring lug connection
Current consumption	Voltage: 24 V Current: 1,64 A Voltage: 48 V Current: 0,82 A
Overload current protection	Yes
Reverse polarity protection	Yes
Voltage supply	24 V DC 48 V DC 2 redundant inputs
Voltage supply range	Voltage type: DC Voltage, min.: 20 V Voltage, max.: 72 V

Switch characteristics

Bandwidth backplane	128 Gbit/s
Jumbo frame support	up to 10 KB
MAC table size	8 K
Max. number of available VLANs	4095
Memory (Flash)	16 MB
Memory (RAM)	128 MB
Number of IGMP-Groups per VLAN	128
Packet buffer size	32 Mbit
Priority queues	8
VLAN-ID max	4094
VLAN-ID min	1

Technical data

Housing main material	Metal
Protection degree	IP30
Speed	Fast/Gigabit/10-Gigabit Ethernet
Switch	managed
Type of mounting	19” rack mounting

Technology

Data switching	Store and Forward
Flow control	IEEE 802.3x flow control
Standard	IEEE 802.3 for 10BASE-T IEEE 802.3u for 100BASE-TX and 100BASE-FX IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN tagging IEEE 802.1X for authentication IEEE 802.1AB for Link Layer Discovery protocol (LLDP) IEEE 1588 PTPv2 for time synchronization IEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-X IEEE 802.3ae for 10-Gigabit Ethernet IEEE 802.3x for flow control IEEE 802.3ad for port trunk with LACP IEEE 802.1D for the Spanning Tree protocol IEEE 802.1w for Rapid STP IEEE 802.1s for the Multiple Spanning Tree Protocol (MSTP)

Downloads

Approval/Certificate/Document of Conformity	[EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_269672) [UK Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_269674) [RCM Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_274110) [Manufacturer's declaration for operating altitude](https://mdcop.weidmueller.com/mediadelivery/asset/900_263604)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_290430)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2875590000)
Product Change Notification	[Firmware Release Notes](https://mdcop.weidmueller.com/mediadelivery/asset/900_281698)
Software	[Device description -- GSDML file](https://mdcop.weidmueller.com/mediadelivery/asset/900_269428) [Firmware -- Current Firmware](https://mdcop.weidmueller.com/mediadelivery/asset/900_269846) [Device description -- SNMP private MIB](https://mdcop.weidmueller.com/mediadelivery/asset/900_281710)
User Documentation	[Hardware Installation Guide](https://mdcop.weidmueller.com/mediadelivery/asset/900_217191) [User manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_245665)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000734
ETIM 7.0	EC000734
ETIM 8.0	EC000734
ETIM 9.0	EC000734
ECLASS 9.0	19-17-01-06
ECLASS 9.1	19-17-01-06
ECLASS 10.0	19-17-04-01
ECLASS 11.0	19-17-04-01
ECLASS 12.0	19-17-04-01
ECLASS 13.0	19-17-04-01

Approvals

ROHS

Conform
