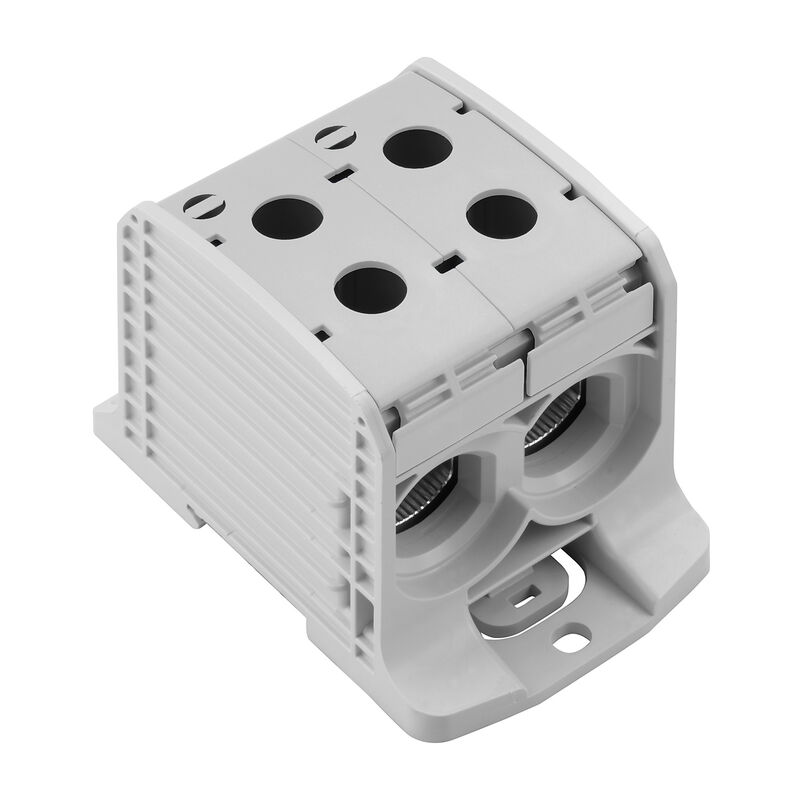

WPD 232 2X185/2X185 GY

Potential distributor terminal, Screw connection, Light Grey, 185 mm², 353 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid

Produkt ID 2502800000

Egenskaber

General ordering data

Version	Potential distributor terminal, Screw connection, Light Grey, 185 mm², 353 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
Order No.	2502800000
Type	WPD 232 2X185/2X185 GY
GTIN (EAN)	4050118516623
Qty.	1 Styk

Dimensions and weights

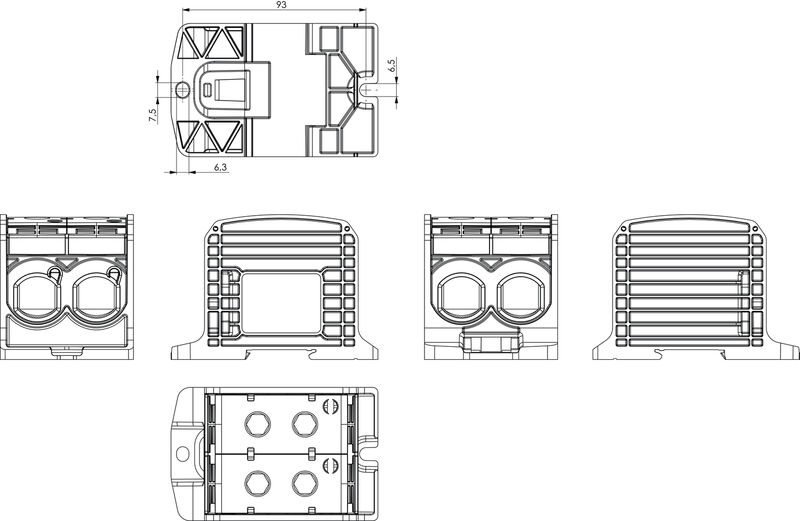

Depth	73,5 mm
Depth (inches)	2,894 inch
Height	105 mm
Height (inches)	4,134 inch
Width	67,6 mm
Width (inches)	2,661 inch
Net weight	397 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	Light Grey
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	CNEX18ATEX0016U
Certificate No. (IECEX)	IECEXNEX18.0010U
Max. voltage (ATEX)	1100 V
Current (ATEX)	353 A
Wire cross section max. (ATEX)	185 mm²
Max. voltage (IECEX)	1100 V
Current (IECEX)	353 A

System specifications

Version	Screw connection
End cover plate required	No

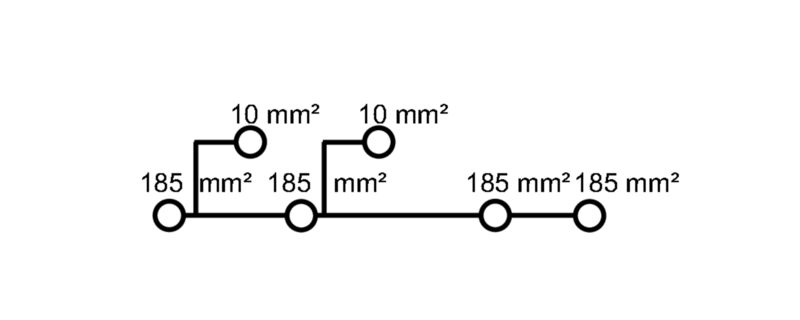

Number of potentials	1
Number of levels	1
Number of clamping points per level	4
Levels cross-connected internally	No
PE connection	No
Rail	TS 35

Additional technical data

Explosion-tested version	Yes
Installation advice	Terminal rail / mounting plate
Type of mounting	Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection

Screw connection

Conductors for clamping (rated connection)

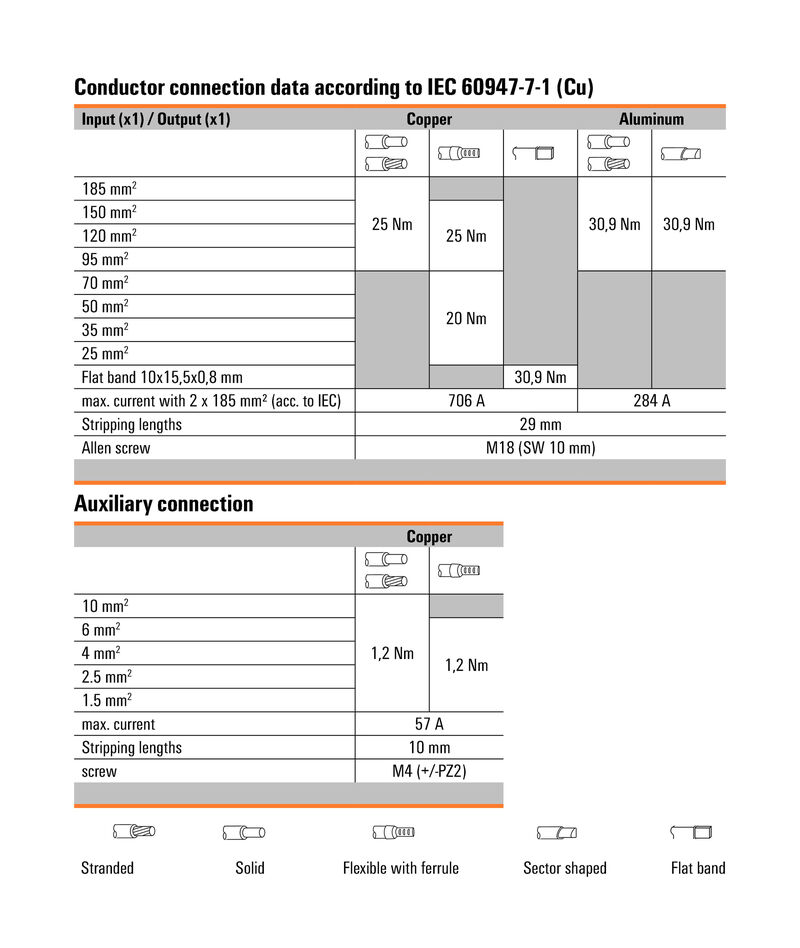

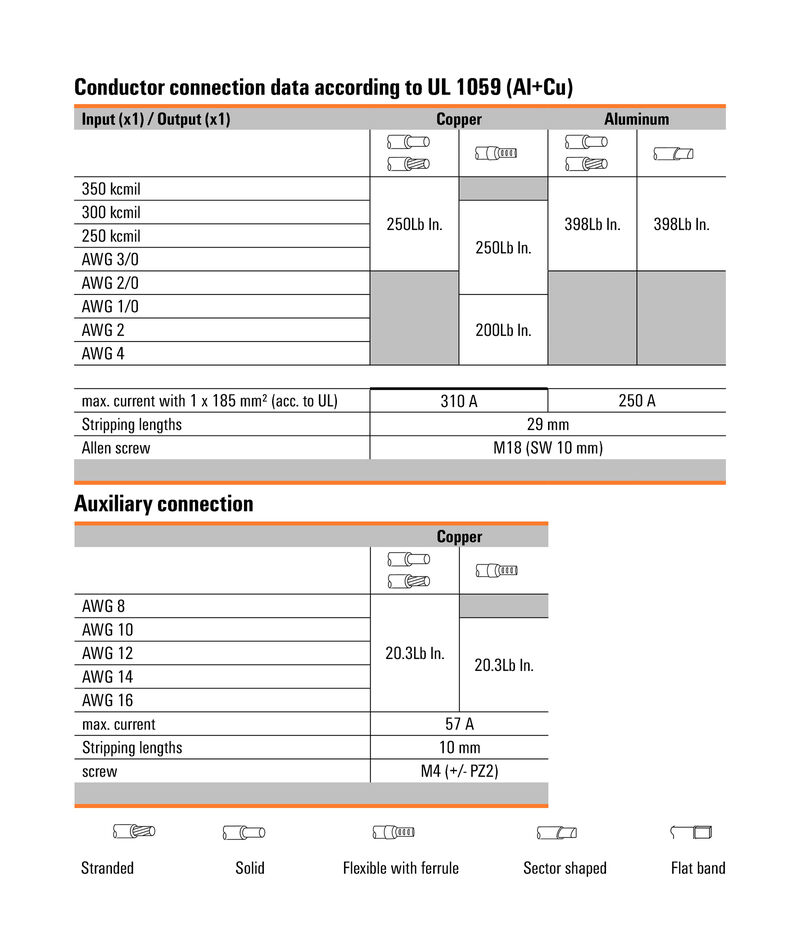

Connection cross-section, stranded, max.	185 mm²
Number of connections	4
Type of connection	Screw connection
Type of connection 2	Screw connection
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	150 mm²
Wire connection cross-section, solid core, max.	185 mm²

General

Installation advice	Terminal rail / mounting plate
Number of poles	1
Rail	TS 35
Standards	IEC 60947-7-1 UL 1059 CSA

Rating data

Rated cross-section	185 mm²
Rated voltage	1.000 V
Rated AC voltage	1.000 V
Rated DC voltage	1.000 V
Rated current	353 A
Standards	IEC 60947-7-1 UL 1059 CSA
Volume resistance according to IEC 60947-7-x	0,09 mΩ
Rated impulse withstand voltage	8 kV

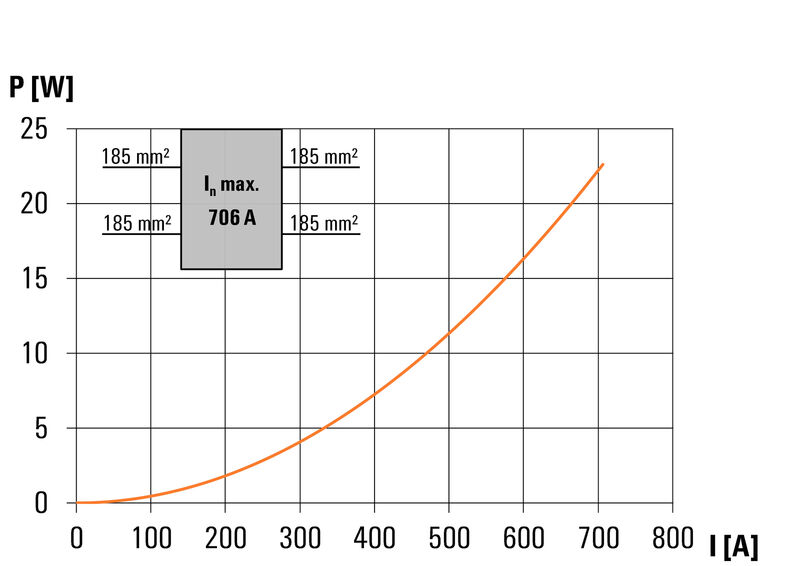

Power loss in accordance with IEC 60947-7-x	11,3 W
Short-time withstand current resistance	8/20µs with 50 kA
Pollution severity	3
Surge voltage category	III

UL rating data

Certificate No. (cURus)

E60693

Important note

Product information

You will find additional information in the downloadsection of the onlinecatalogue

Downloads

Approval/Certificate/Document of Conformity	[UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253932) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89229) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) [FIMKO certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152185) [CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_178482) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_217414) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_217415) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253931) [LMP 23.0563U- WPD (Rev. 0)](https://mdcop.weidmueller.com/mediadelivery/asset/900_312468) [DNV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_320351) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_40465)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_39828)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2502800000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2502800000)
User Documentation	[DATA SHEET WPD 232](https://mdcop.weidmueller.com/mediadelivery/asset/900_81018) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [NTI WPD 232](https://mdcop.weidmueller.com/mediadelivery/asset/900_105985) [Manual - How to connect aluminum wires in WPD-Terminal blocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_317919) [Torque_Conductor_Connection_Data_WPD_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_319361) [Drehmoment_Leiteranschlussdaten_WPD_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_319362)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-19
ECLASS 14.0	27-25-01-19

Approvals

Approvals	![CCCEX](/picture/CCCEX.gif) ![CE](/picture/CE.gif) ![CENEXATEX](/picture/CENEXATEX.gif) ![CURUS](/picture/CURUS.gif) ![DETNORVER](/picture/DETNORVER.gif) ![IECEXCENEX](/picture/IECEXCENEX.gif) ![UKEX](/picture/UKEX.gif) ![VDE](/picture/VDE.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
