Egenskaber

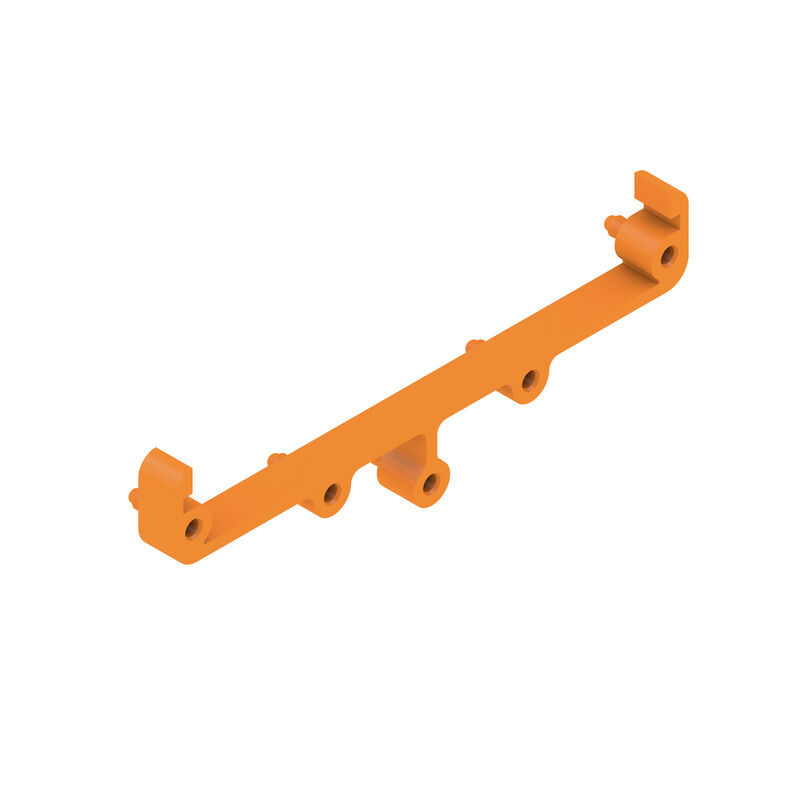

| Version | Intermediate part, RS 70 orange, Intermediate part, Width: 8.7 mm |
| Order No. | 0119760000 |
| Type | ZW 5 RS OR |
| GTIN (EAN) | 4008190186098 |
| Qty. | 20 Styk |
| Depth | 20,6 mm |
| Depth (inches) | 0,811 inch |
| Height | 70 mm |
| Height (inches) | 2,756 inch |
| Width | 8,7 mm |
| Width (inches) | 0,343 inch |
| Net weight | 1,35 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Comparative Tracking Index (CTI) | 600 ≤ CTI |
| Insulating material | PA 66 |
| Material | PA 66 |
| Surface finish | untreated |
| UL 94 flammability rating | V-2 |
| Colour | orange |
| Colour chart (similar) | RAL 2000 |
| Encapsulation option | No |
| Protection degree | IP00 |
| Product information |

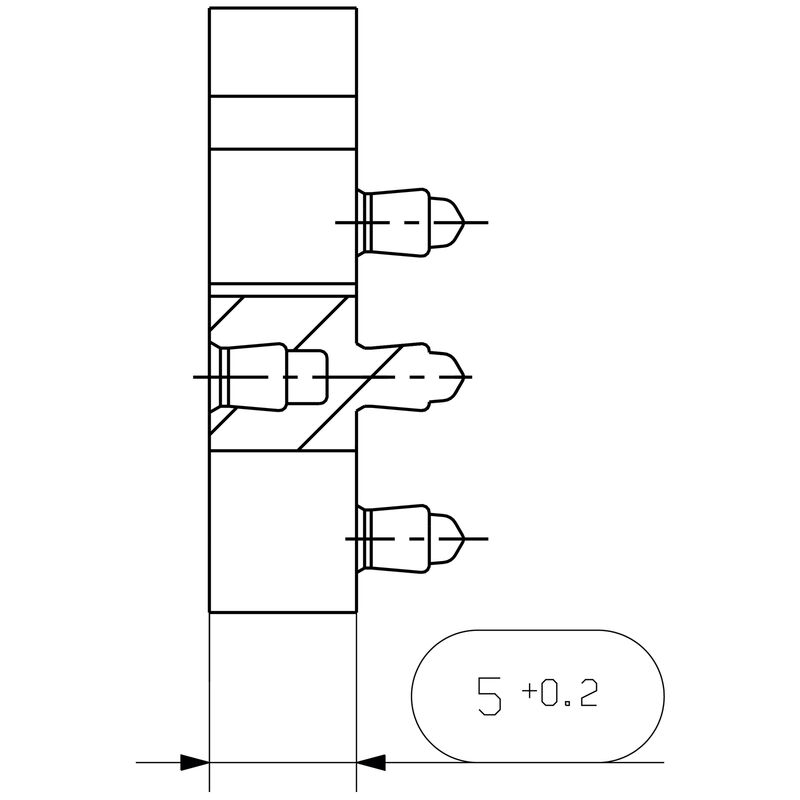

Height: TS 32 = 33.5 mm, TS 35x7.5 = 29 mm Dimensions of the PCB: PCB thickness: 1.6 (±0.2) mm PCB length: 67.8 (-0.2) mm Intermediary piece width = PCB width minus 2 x 9 mm (clip-in foot) Example: PCB width = 68 mm, intermediary piece width = 50 mm, intermediary pieces 2x ZW 25 RS or ZW 45 RS + ZW 5 RS |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_100849) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0119760000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0119760000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL ANALO.SIGN.CONV. EN](http://download.weidmueller.com/asset/download/file/38237)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 7.0 | EC002779 |
| ETIM 8.0 | EC002779 |
| ETIM 9.0 | EC002779 |
| ECLASS 11.0 | 27-18-27-92 |
| ECLASS 12.0 | 27-18-27-92 |
| ECLASS 13.0 | 27-19-06-04 |
| ECLASS 14.0 | 27-19-06-04 |
| ROHS | Conform |
