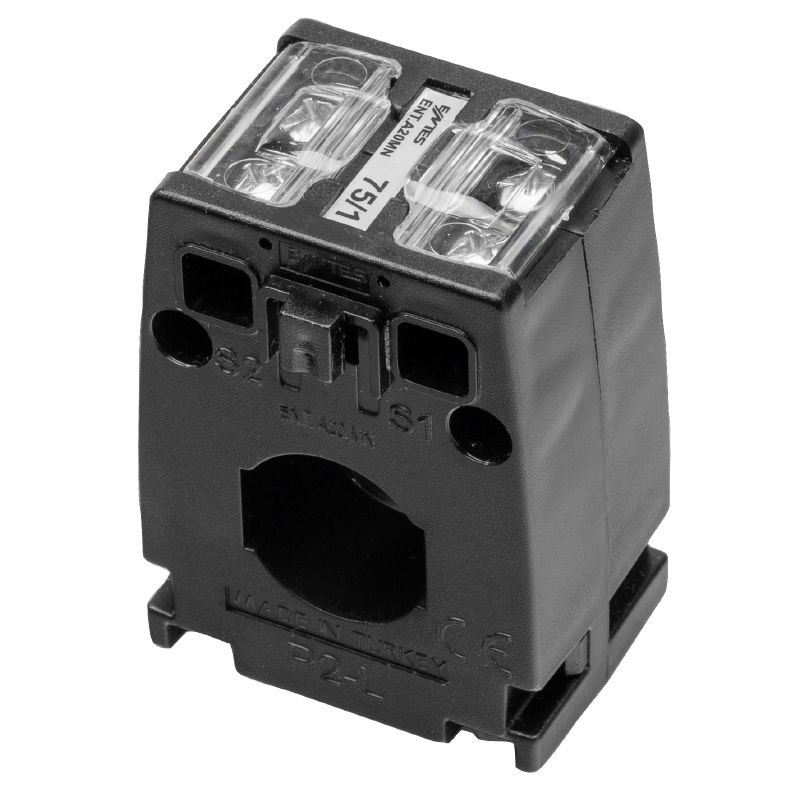

Primary current: 75 A, Secondary current max.: 1 A, Load: 1.5 VA, Tolerance class: 1

Item No. 3008220000
Download data sheet Engineering Support Product Downloads
Related products 21
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Electrical attributes General data Technical properties Isolationskoordination Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Utförande
Primary current: 75 A, Secondary current max.: 1 A, Load: 1.5 VA, Tolerance class: 1
Art.nr.
3008220000
Typ
CMA-A20-75-1A-1-1,5VA
GTIN (EAN)
4099986909472
Qty.
1 items

Dimensions and weights

Djup
57 mm
Depth (inches)
2,244 inch
Höjd
65 mm
Height (inches)
2,559 inch
Bredd
47 mm
Width (inches)
1,85 inch
Net weight
250 g

Temperatures

Drifttemperatur
-5 °C...40 °C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Electrical attributes

Load
1,5 VA
noggrannhetsklass
1
Primärström
75 A
Sekundärström
0...1 A

General data

Tillverkare
ENTES Elektronik

Technical properties

Nominell frekvens
50 / 60 Hz
Skyddsklass
IP20
Värmeklassad varaktig ström ITermisk
1.2 x Irated

Isolationskoordination

Isolationsspänning
3 kV / 1 min
noggrannhetsklass
1

Classifications

ETIM 8.0
EC002048
ETIM 9.0
EC002048
ETIM 10.0
EC002048
ECLASS 14.0
27-21-09-02
ECLASS 15.0
27-21-09-02
