ZDU 2.5N/3AN BL
Product image
ZDU 2.5N/3AN BL

ZDU 2.5N/3AN BL

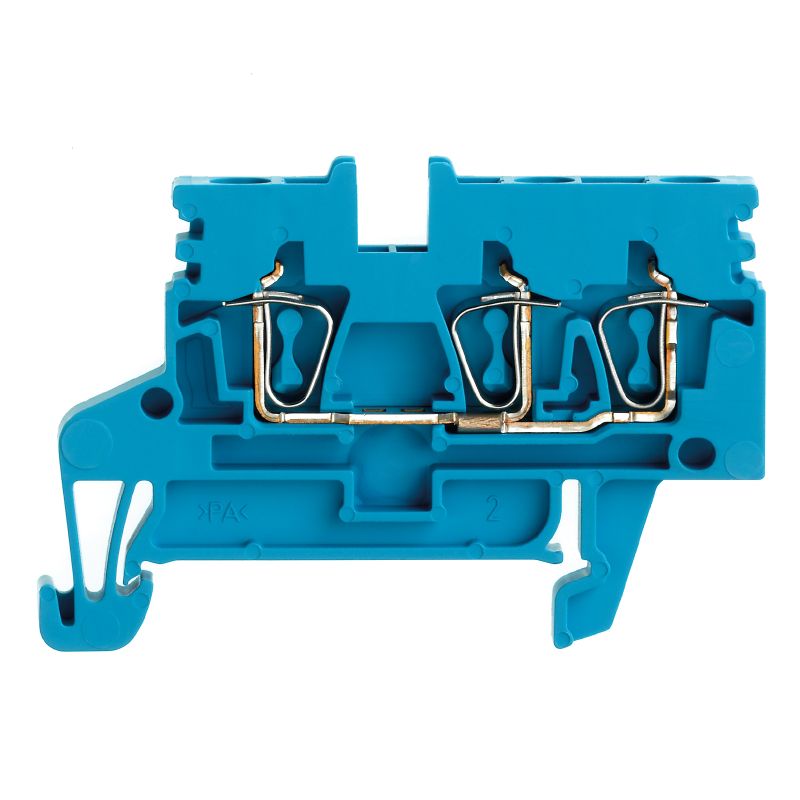

Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue

Tuotteen tunnus 1933730000
Avaa konfiguraattorissa
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 17 Samankaltaiset tuotteet 1077
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data Dimensions General Rating data UL rating data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319242/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319255/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue
Order No.
1933730000
Type
ZDU 2.5N/3AN BL
GTIN (EAN)
4032248586769
Förp.
50 items

Dimensions and weights

Depth
38,5 mm
Depth (inches)
1,516 inch
Depth including DIN rail
39 mm
Height
56,5 mm
Height (inches)
2,224 inch
Width
5,1 mm
Width (inches)
0,201 inch
Net weight
6,84 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
−50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
blue
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D

System specifications

Исполнение
Tension-clamp connection
for plug-in cross-connector
One end without connector
niezbędna płyta zamykająca
Yes
Antal potentialer
1
Number of levels
1
Number of clamping points per level
3
Number of potentials per tier
1
Etagen intern gebrückt
No
Collegamento PE
No
Barrette de liaison équipée
TS 35

Additional technical data

Explosion-tested version
Yes
Open sides
right
Tipo de montaje
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
Tension-clamp connection
Cross-section for connected wire, AWG, additional connection, max.
AWG 12
Cross-section for connected wire, AWG, additional connection, min.
AWG 24

Conductors for clamping (rated connection)

4 mm²
Blade size
0.6 x 3.5 mm
Clamping range, min.
0,05 mm²
Connection cross-section, finely stranded, min.
0,05 mm²
Connection cross-section, stranded, max.
2,5 mm²
Connection cross-section, stranded, min.
0,05 mm²
Connection direction
top
Gauge to IEC 60947-1
A2
Number of connections
3
Stripping length
10 mm
Type of connection
Tension-clamp connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,05 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,05 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,05 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,05 mm²

CSA rating data

Certificate No. (CSA)
200039-1842498
Current size B (CSA)
24 A
Current size C (CSA)
24 A
Voltage size B (CSA)
300 V
Voltage size C (CSA)
300 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
30 AWG

Dimensions

TS 35 offset
25,5 mm

General

Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26

Rating data

Rated cross-section
2,5 mm²
Rated voltage
800 V
Rated DC voltage
800 V
정격 전류
24 A
Áram maximum vezetékoknál
24 A
Normes
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
0,77 W
Pollution severity
3

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
30 AWG
Conductor size Field wiring min. (cURus)
30 AWG
Current size B (cURus)
20 A
Průřez vodiče propojení v terénu max. (cURus)
12 AWG
Velikost proudu C (cURus)
20 A
Voltage size B (cURus)
300 V
Voltage size C (cURus)
300 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
