FZS 2/4 RT/80 SAKT4

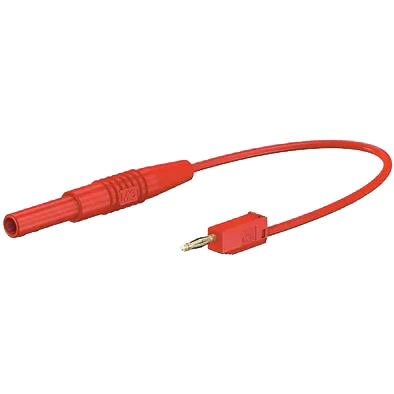

Product image

FZS 2/4 RT/80 SAKT4

Plug (terminal), Plug-in connection, 2 mm², Number of connections: 2, Number of poles: 1, Width: 9 mm

Tuotteen tunnus 1276300000
Lataa tietosivu Product Downloads Engineering Support
On lisävaruste 6 Samankaltaiset tuotteet 7
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (rated connection) Dimensions General Rating data Classifications Approvals

General ordering data

Version
Plug (terminal), Plug-in connection, 2 mm², Number of connections: 2, Number of poles: 1, Width: 9 mm
Order No.
1276300000
Type
FZS 2/4 RT/80 SAKT4
GTIN (EAN)
4008190026080
Qty.
20  items

Dimensions and weights

Depth
100  mm
Depth (inches)
3,937  inch
Height
9  mm
Height (inches)
0,354  inch
Width
9  mm
Width (inches)
0,354  inch
Diameter
9  mm
Net weight
4,92  g

Temperatures

Ambient temperature
-5 °C…40 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6aI, 6c
REACH SVHC
Lead 7439-92-1
SCIP
5837f5db-79d4-4531-bf95-fd2b6e115085

Material data

Colour
red

System specifications

Version
Adapter plug

Additional technical data

Installation advice
Direct mounting
Type of fixing
Plugged
Type of mounting
Plugged

Conductors for clamping (rated connection)

Number of connections
2
Type of connection
Plug-in connection

Dimensions

Diameter
9  mm

General

Installation advice
Direct mounting
Number of poles
1

Rating data

Rated cross-section
2  mm²

Classifications

ETIM 6.0
EC002848
ETIM 7.0
EC002848
ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 9.0
27-14-11-92
ECLASS 9.1
27-14-11-92
ECLASS 10.0
27-14-11-92
ECLASS 11.0
27-14-11-92
ECLASS 12.0
27-14-11-92
ECLASS 13.0
27-25-03-90
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90

Approvals

ROHS
Conform
