DRM270615LT
Product image
Similar to illustration
DRM270615LT
Wiring diagram
View of Pins from below
DRM270615LT
Graph
DC load limit curve
Resistive load
DRM270615LT
Graph
Electrical service life
DRM270615LT
Graph
Derating curve
Relay in combination with base
DRM270615LT
Graph
AC operational voltage range
DRM270615LT

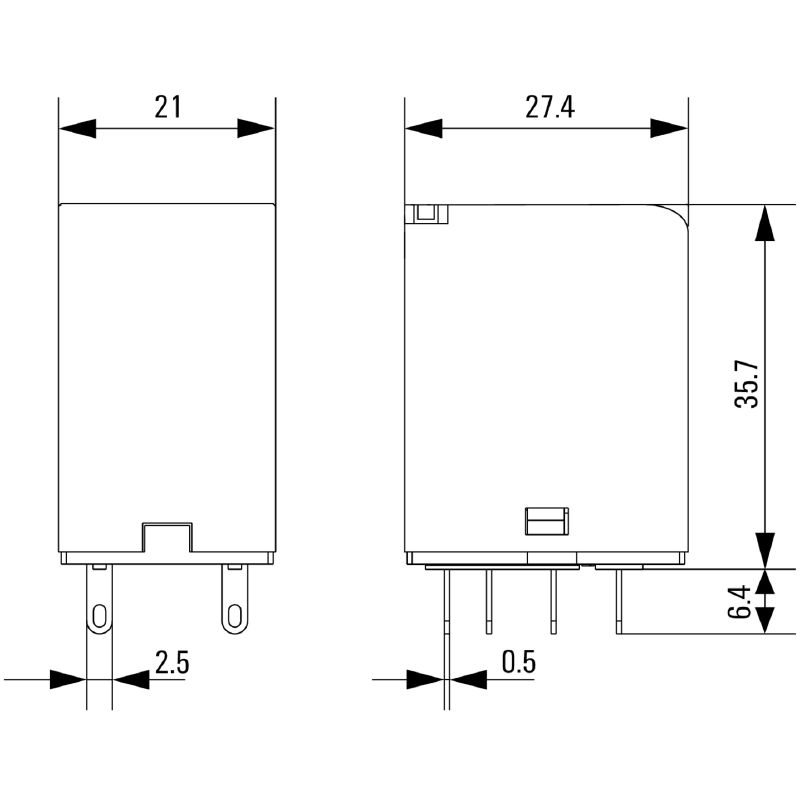

Dimensional drawing
DRM270615LT
Miscellaneous
Type codes

DRM270615LT

D-SERIES DRM, Relay, Number of contacts: 2, CO contact, AgNi flash gold-plated, Rated control voltage: 115 V AC, Continuous current: 10 A, Plug-in connection

Product ID 7760056075
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 21 Contradelen 6 Afzonderlijke onderdelen van 1 Verwante producten 9
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance 정격 데이터 UL Control side Load side General data Insulation coordination Informations suplémentaires sur les agréments / standards Connection data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E312083

General ordering data

Version
D-SERIES DRM, Relay, Number of contacts: 2, CO contact, AgNi flash gold-plated, Rated control voltage: 115 V AC, Continuous current: 10 A, Plug-in connection
Order No.
7760056075
Type
DRM270615LT
GTIN (EAN)
4032248855803
Qty.
20 Styk

Dimensions and weights

Depth
35,7 mm
Depth (inches)
1,406 inch
Height
27,4 mm
Height (inches)
1,079 inch
Width
21 mm
Width (inches)
0,827 inch
Net weight
30,888 g

Temperatures

Storage temperature
-40 °C...70 °C
Ambient temperature
-40 °C…55 °C
Humidity
35...85 % rel. humidity, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

정격 데이터 UL

인증 번호(cURus)
E312083

Control side

Rated control voltage
115 V AC
Rated current AC
12,6 mA (50 Hz)
10,8 mA (60 Hz)
Power rating
1.0...1.2VA (60HZ)
Coil resistance
4340 Ω ± 10 %
Állapotjelző
Piros LED

Load side

Rated switching voltage
250 V AC
Continuous current
10 A
Max. switching frequency at rated load
0,1 Hz
min. Schaltleistung
10 mA @ 12 V
100 mA @ 5 V
Inrush current
20 A / 50 ms
AC switching capacity (resistive), max.
2500 VA
DC switching capacity (resistive), max.
240 W @ 24 V
Switch-on delay
<20 ms
Switch-off delay
<20 ms
접점 유형
2 CO 접점 (AgNi 플래시 금도금)
Mechanical service life
20 x 106 switching cycles

General data

Test button available
Yes
Version of test button
Lockable test button
Momentary test button
Mechanical switch position indicator
Yes
Colour
Transparent
UL94 flammability rating component
  • Component:
    Relay cover
  • UL94 flammability rating:
    V-2
  • Component:
    Relay baseplate
  • UL94 flammability rating:
    V-0
  • Component:
    Relay status indicator
  • UL94 flammability rating:
    HB
  • Component:
    Relay test button
  • UL94 flammability rating:
    HB

Insulation coordination

Rated voltage
250 V
Pollution severity
2
Surge voltage category
III
Clearance and creepage distances for control side - load side
≥ 5,5 mm
Dielectric strength for control side - load side
1,8 kVeff /1 min.
Dielectric strength of neighbouring contacts
1 kVeff / 1 min
Rigidità dielettrica del contatto aperto
1 kVeff / 1 min
임펄스 내전압
6 kV(1.2/50 µs)
보호 등급
IP20

Informations suplémentaires sur les agréments / standards

Certificate No. (cURus)
E312083

Connection data

Wire connection method
Plug-in connection

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
