EL 38 MM SI 30M
EL 38 MM SI 30M

EL 38 MM SI 30M

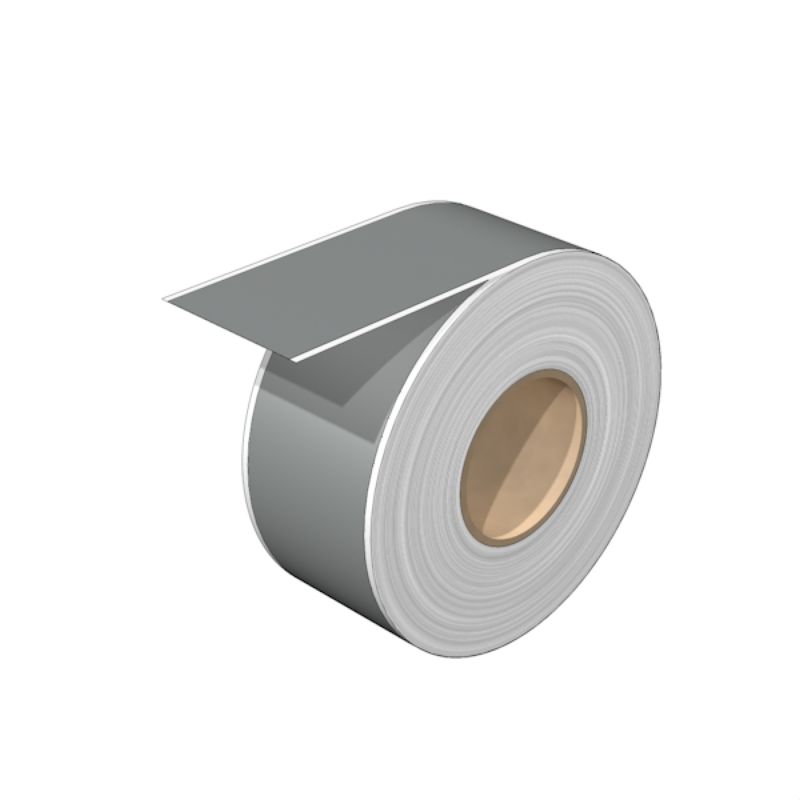

THM, Device markers, 38 x , silver

Tuotteen tunnus 2006650000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 4 Samankaltaiset tuotteet 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

버전
THM, Device markers, 38 x , silver
N. d’ordine
2006650000
Type
EL 38 MM SI 30M
GTIN (EAN)
4050118391558
Qty.
1 items

Dimensions and weights

Depth
0,1 mm
Depth (inches)
0,004 inch
Wysokość
38 mm
Height (inches)
1,496 inch
Длина
30.000 mm
Length (inches)
1.181,1 inch
Net weight
290 g

Temperatures

Operating temperature range
-40...120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Approval acc. to UL 969
Yes
Basic material
Polyester
Colour
silver
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
Halogen
No
Length
30.000 mm
Limma
Acrylate adhesive
Number per roll
1
Operating temperature range
-40...120 °C
Operating temperature range, max.
120 °C
Operating temperature range, min.
-40 °C
Printed characters
without
UL 94 flammability rating
V-0
Version
halogen-free
Self-adhesive

Device markers

Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
