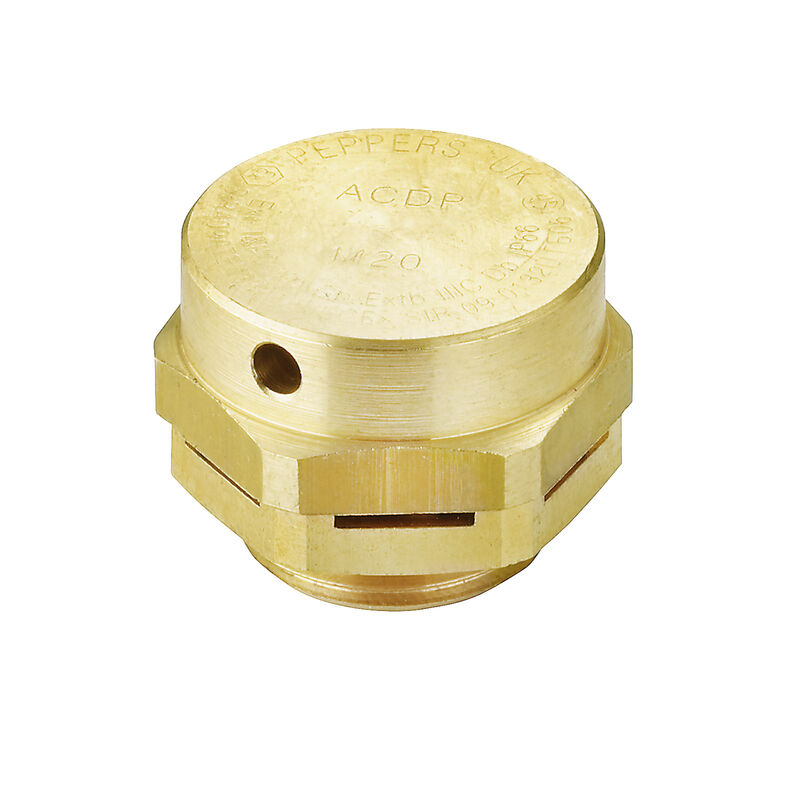

KLIPPON BDX M20 B
Similar to illustration

KLIPPON BDX M20 B

Klippon BDX (compensating elements), Compensating element, M 20, 10 mm, IP66, Brass

Ürün No. 2519520000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Certificate numbers cable gland General information Classifications

Approvals

ROHS
Conform

General ordering data

Version
Klippon BDX (compensating elements), Compensating element, M 20, 10 mm, IP66, Brass
Order No.
2519520000
Type
KLIPPON BDX M20 B
GTIN (EAN)
4050118532029
Qty.
1 adet

Dimensions and weights

Height
12 mm
Height (inches)
0,472 inch
Width
27 mm
Width (inches)
1,063 inch
Length
22 mm
Length (inches)
0,866 inch
Net weight
62 g

Temperatures

Operating temperature
-60 °C...200 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1

Certificate numbers cable gland

Approval conditions
ATEX
IECEX
UL AEx Class Div.
UL AEx Class Zone
Certificate no. cable gland (ATEX)
CML 19ATEX3347X
Certificate no. cable gland (CSA)
E340660
Certificate no. cable gland (IECEx)
IECEx CML 19.0105X
Identification
Ex e IIC Gb
Ex ta IIIC Da

General information

AF size 1
27 mm
Air flow
0.25 l / 1 h
Cable gland
M 20
Filter
Bronze insert (90% copper, 10% tin)
Gewinde (außen)
M 20
Halogen
halogen-free
Head diameter
26,2 mm
Impact resistance
7 J ATEX version
Length of thread
10 mm
moment obrotowy króćca, min.
5 Nm
Note: protection class
- The venting element should be fitted on the bottom side of the enclosure, aligned vertically with the thread upwards, and at the lowest point to permit proper drainage. - The supplied assembly instructions must be read prior to installation and strictly adhered to. - The water flow rate was tested using a water-filled, empty enclosure (no pressure or heat-producing internal components). The water flow rate may vary due to operational parameters and environmental conditions.
O-Ring
Silicone
Operating temperature range, max.
200 °C
Operating temperature range, min.
-60 °C
Par de apriete contratuerca, mín.
5 Nm
Pitch of thread
1,5 mm
Protection class (UL)
Type 4
Protection degree
IP66
Protection degree with GWDR
IP66
Silicone
Yes
Standards
IEC 60079-0
IEC 60079-7
IEC 60079-31
Tändskyddstyp
Improved safety Ex e
Tightening torque
5 Nm
Torque for lock nut, max.
5 Nm
Těsnění
Silicone
UL 94 flammability rating
None
Základní materiál
Brass
연결 어댑터용 토크, 최대
5 Nm

Classifications

ETIM 8.0
EC000814
ETIM 9.0
EC000814
ETIM 10.0
EC000814
ECLASS 14.0
27-18-28-17
ECLASS 15.0
27-18-28-17
