KLIPPON K5 VMQ RAL7001
Similar to illustration
KLIPPON K5 VMQ RAL7001

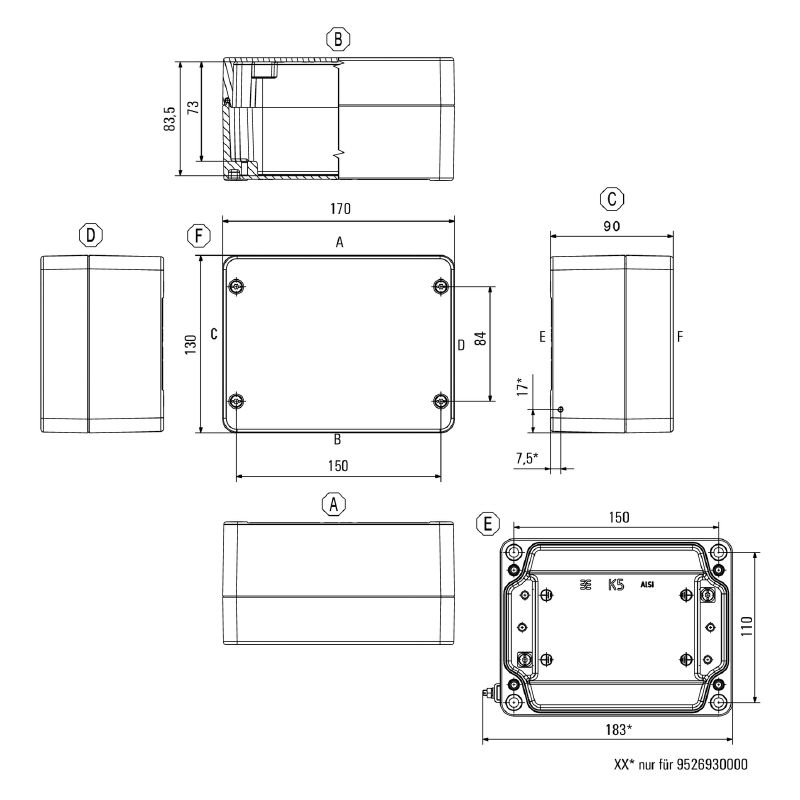

Dimensioned drawing

KLIPPON K5 VMQ RAL7001

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 130 mm, Width: 170 mm, Depth: 90 mm, Basic material: Aluminium AlSi12, Powder-coated, textured, Silver grey

Item No. 1937860000
Download data sheet Engineering Support Product Downloads
Accessories 9 Related products 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable glands, left Cable glands, right Cable glands, top/bottom Certificate numbers enclosure General information horizontal assembly vertical assembly Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E197061

General ordering data

Version
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 130 mm, Width: 170 mm, Depth: 90 mm, Basic material: Aluminium AlSi12, Powder-coated, textured, Silver grey
Order No.
1937860000
Type
KLIPPON K5 VMQ RAL7001
GTIN (EAN)
4032248610082
Qty.
1  items

Dimensions and weights

Depth
90  mm
Depth (inches)
3.543  inch
Height
130  mm
Height (inches)
5.118  inch
Width
170  mm
Width (inches)
6.693  inch
Mounting dimension - height
110  mm
Mounting dimension - width
150  mm
Net weight
1,410  g

Temperatures

Operating temperature
-60 °C...135 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable glands, left

M12
4
M16
2
M20
1
M25
1
M32
1

Cable glands, right

M12
4
M16
2
M20
1
M25
1
M32
1

Cable glands, top/bottom

M12
11
M16
8
M20
4
M25
3
M32
2

Certificate numbers enclosure

Approval conditions
cULus
RMRS
DNV
Certificate no. (cULus)
E197061
Certificate No. (DNV)
TAE00002SM
Declaration of Conformatiy No. (DoC LVD)
DE PS2410 160412 001ISS03

General information

Access opening: height
120.8  mm
Access opening: width
160.8  mm
Areas of use
Process industry
Transportation
Marine engineering
Packaging industry
Harbour facilities
Machine construction
Basic material
Aluminium AlSi12
Enclosure attachment
Holes 6 mm
Flange plate
No
Impact resistance
10 J version standard
Integral fixing
Threaded holes M5
Lid
Yes
Lid attachment
M5 torx stainless steel screws with slot
Material thickness of cover
3  mm
Material thickness of enclosure
4.6  mm
Max. payload
2.21  kg
Note: protection class
IP68 (t=72h, h=1m)
Number of lid screws
4
Operating temperature, max.
135  °C
Operating temperature, min.
-60  °C
Protection class (UL)
Type 4
Type 4X
Protection degree
IP66
IP67
IP68
Seal material
Silicone
Standards
EN 45545-2:2013
Surface finish
Powder-coated
textured
Torque for lid screws
2.5  Nm

horizontal assembly

WDU 10 / ZDU 10
1x10
WDU 16 / ZDU 16
1x8
WDU 2,5 / ZDU 2,5 / IDU 2,5
1x20
WDU 4 / ZDU 4
1x17
WDU 6 / ZDU 6
1x12

vertical assembly

WDU 2,5 / ZDU 2,5 / IDU 2,5
*
WDU 4 / ZDU 4
*

Classifications

ETIM 6.0
EC000261
ETIM 7.0
EC000261
ETIM 8.0
EC000261
ETIM 9.0
EC000261
ETIM 10.0
EC000261
ECLASS 9.0
27-18-01-01
ECLASS 9.1
27-18-92-90
ECLASS 10.0
27-18-01-01
ECLASS 11.0
27-18-01-01
ECLASS 12.0
27-18-01-01
ECLASS 13.0
27-18-01-01
ECLASS 14.0
27-18-01-01
ECLASS 15.0
27-18-01-01
