LX 15.00/03/90 4.5SN BK BX

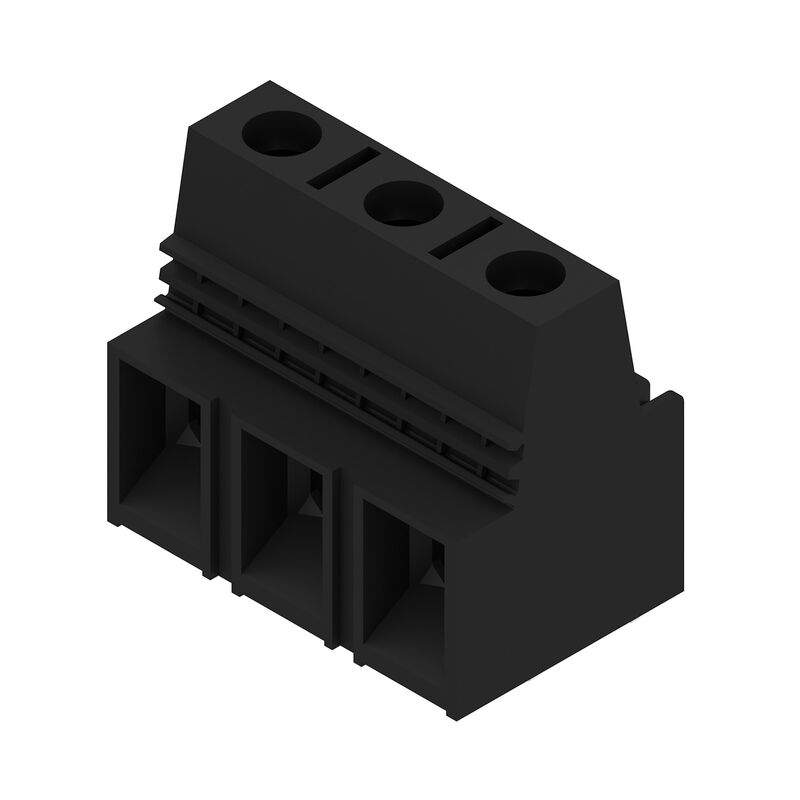

Product image
Similar to illustration
LX 15.00/03/90 4.5SN BK BX

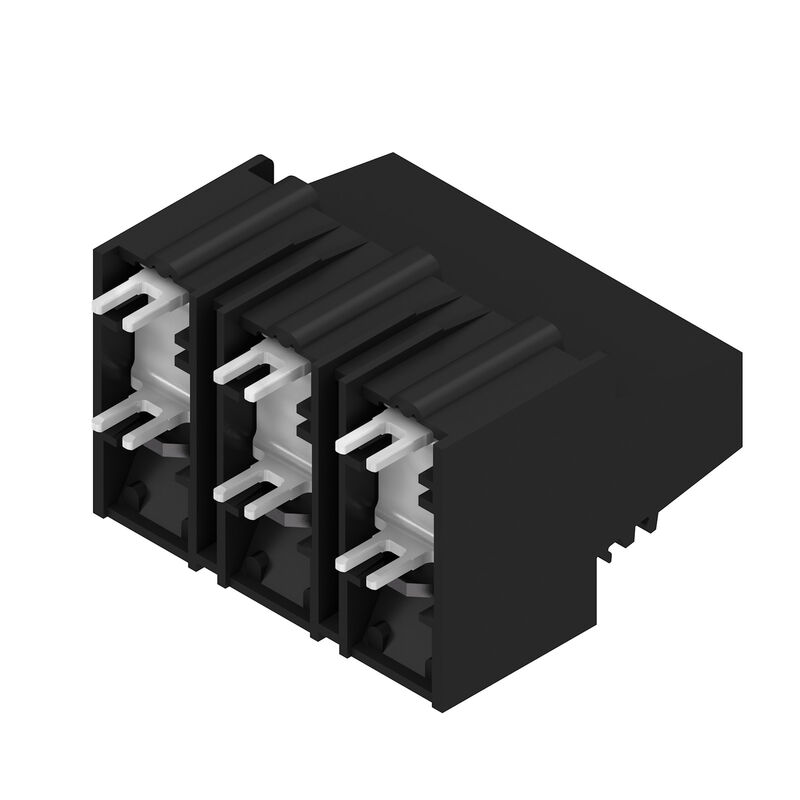

Product image
LX 15.00/03/90 4.5SN BK BX

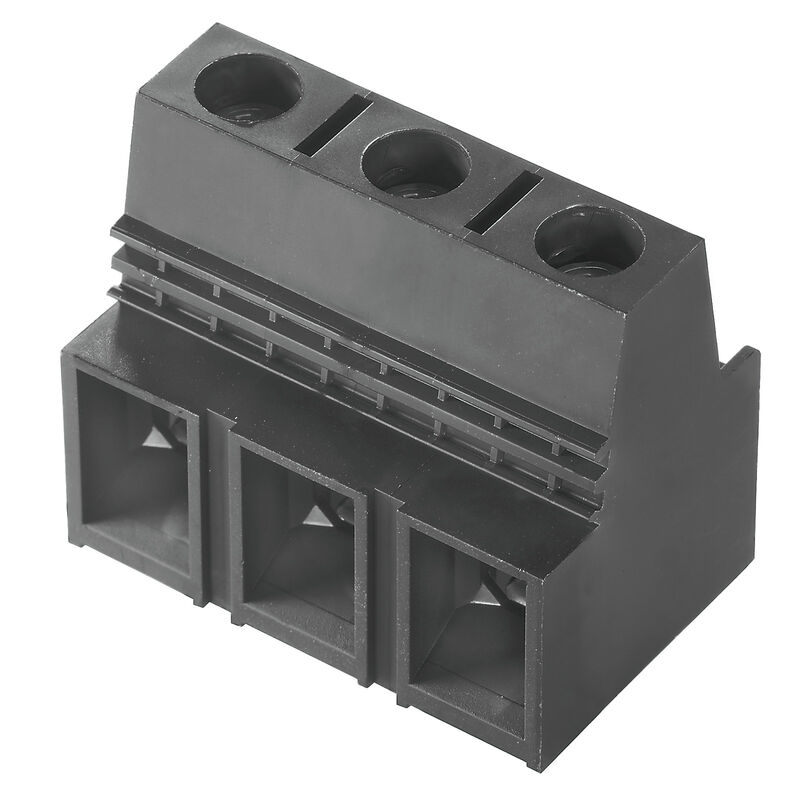

Product image
LX 15.00/03/90 4.5SN BK BX
Dimensional drawing
LX 15.00/03/90 4.5SN BK BX
Graph
LX 15.00/03/90 4.5SN BK BX
Graph

LX 15.00/03/90 4.5SN BK BX

Printed circuit board terminals, 15.00 mm, Number of poles: 3, 90°, Solder pin length (l): 4.5 mm, tinned, black, Clamping yoke connection, Clamping range, max. : 25 mm², Box

Product ID 1174720000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Verwante producten 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificat Nº (UR)
E60693

General ordering data

Versión
Printed circuit board terminals, 15.00 mm, Number of poles: 3, 90°, Solder pin length (l): 4.5 mm, tinned, black, Clamping yoke connection, Clamping range, max. : 25 mm², Box
Código
1174720000
Tipo
LX 15.00/03/90 4.5SN BK BX
GTIN (EAN)
4032248967346
Qty.
20 items
Product data
IEC: 1000 V / 101 A / 1.5 - 25 mm²
UL: 600 V / 85 A / AWG 16 - AWG 4
Packaging
Box

Dimensions and weights

Depth
29,1 mm
Depth (inches)
1,146 inch
Altura
41,5 mm
Height (inches)
1,634 inch
Height of lowest version
37 mm
Anchura
43 mm
Width (inches)
1,693 inch
Net weight
51,1 g

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Product family
OMNIMATE Power - series LX
Wire connection method
Clamping yoke connection
Mounting onto the PCB
THT solder connection
Conductor outlet direction
90°
Pitch in mm (P)
15 mm
Pitch in inches (P)
0,591 "
Polzahl
3
Pin series quantity
1
Fitted by customer
No
Number of rows
1
Max. adjacent poles per row
10
Solder pin length (l)
4,5 mm
Solder pin dimensions
1.2 x 1.2 mm
Solder eyelet hole diameter (D)
1,6 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Number of solder pins per pole
4
Screwdriver blade
1.0 x 5.5
Screwdriver blade standard
DIN 5264
Tightening torque, min.
2,4 Nm
Tightening torque, max.
4 Nm
Clamping screw
M 5
Stripping length
16 mm
L1 in mm
30 mm
L1 in inches
1,181 "
Touch-safe protection acc. to DIN VDE 0470
IP 10
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Protection degree
IP20
Volume resistance
0.50 mΩ

Material data

절연재
Wemid (PA)
色
black
Färgtabell (jämförbar)
RAL 9011
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
접점 재질
Cu-alloy
Contact surface
tinned
Skiktstruktur för lödanslutningen
1.5...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

클램프 범위, 최소
1,31 mm²
클램프 범위, 최대
25 mm²
Wire connection cross section AWG, min.
AWG 16
Sección de conexión del conductor AWG, máx.
AWG 4
Solid, min. H05(07) V-U
1,5 mm²
Solid, max. H05(07) V-U
16 mm²
Stranded, min. H07V-R
6 mm²
Stranded, max. H07V-R
25 mm²
Flexible, min. H05(07) V-K
1,5 mm²
Flexible, max. H05(07) V-K
25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
1,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
16 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
1,5 mm²
z końcówką kablową wg DIN 46 228/1, maks.
16 mm²
Plug gauge in accordance with EN 60999 a x b; ø
6.9 mm x 6.9 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      4 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      9004100000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      0124700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      10 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      0124800000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      16 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      0124300000
Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
101 A
Rated current, max. number of poles (Tu=20°C)
101 A
Номинальный ток, мин. кол-во контактов (Tu = 40 °C)
101 A
Rated current, max. number of poles (Tu=40°C)
101 A
Rated voltage for surge voltage class / pollution degree II/2
1.000 V
Rated voltage for surge voltage class / pollution degree III/2
1.000 V
Rated voltage for surge voltage class / pollution degree III/3
1.000 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
8 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
8 kV
Short-time withstand current resistance
3 x 1s mit 1000 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1198743
Rated voltage (Use group B / CSA)
600 V
Rated voltage (Use group C / CSA)
600 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group B / CSA)
85 A
Nennstrom (Use group C / CSA)
85 A
Rated current (Use group D / CSA)
5 A
Wire cross-section, AWG, min.
AWG 16
Wire cross-section, AWG, max.
AWG 4
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
600 V
Rated voltage (Use group C / UL 1059)
600 V
Rated voltage (Use group D / UL 1059)
600 V
Rated current (Use group B / UL 1059)
85 A
Rated current (Use group C / UL 1059)
85 A
Rated current (Use group D / UL 1059)
5 A
Wire cross-section, AWG, min.
AWG 16
Wire cross-section, AWG, max.
AWG 4
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
159 mm
VPE width
93 mm
VPE height
83 mm

Type tests

Test: Durability of markings
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, type identification, pitch, approval marking CSA, approval marking UL, type of material, durability
  • Evaluation:
    available
Test: Clampable cross section
  • Standard:
    DIN EN 60999 section 6 and 8.1 / 04.94, DIN EN 60947-1 section 8.2.4.5.1 / 12.99
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      solid 16 mm²
    • Type of conductor and conductor cross-section:
      stranded 25 mm²
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/ stranded
    • Type of conductor and conductor cross-section:
      AWG 4/1
    • Type of conductor and conductor cross-section:
      AWG 4/ stranded
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999 section 8.4 / 04.94
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 16/7
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
  • Requirement:
    4,5 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 4/ stranded
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999 section 8.5 / 04.94
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U1.5
    • Type of conductor and conductor cross-section:
      H05V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/7
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
  • Requirement:
    ≥ 135 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-R25
    • Type of conductor and conductor cross-section:
      H05V-K25
    • Type of conductor and conductor cross-section:
      AWG 4/ stranded
  • Evaluation:
    passed

Important note

Conformidad con IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notas
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • The test point can only be used as potential-pickup point.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
