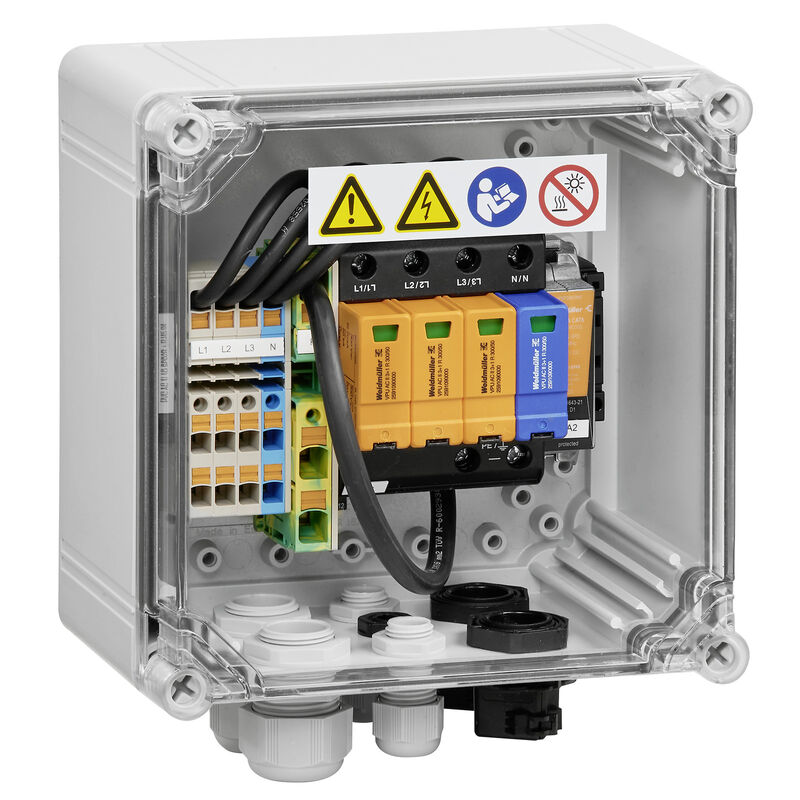

PVC AC 1I 1O SPD2R + RJ45 04

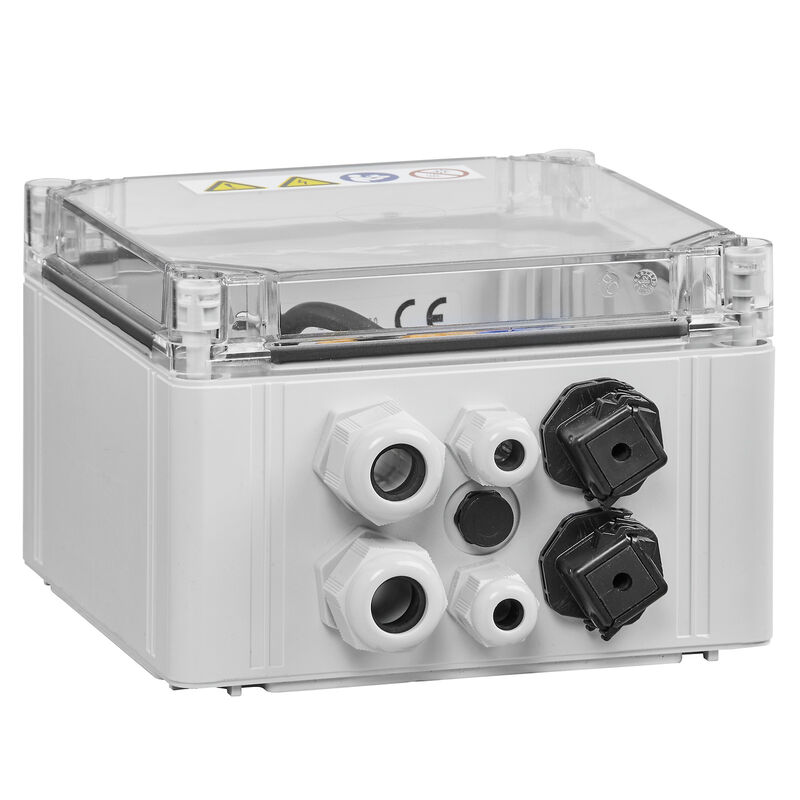

PVC AC 1I 1O SPD2R + RJ45 04
PVC AC 1I 1O SPD2R + RJ45 04

PVC AC 1I 1O SPD2R + RJ45 04

AC voltage version, Auxiliary and alarm contact, TN-C-S, TN-S, IT with N, IT without N, TT

Produkt ID 8000104168
Download datablad Product Downloads
Er tilbehør til 23 Anvendte produkter 2
General ordering data Dimensions and weights Environmental Product Compliance Rated data IEC / EN AC inputs AC outputs Guarantee General data Inputs Classifications Approvals

General ordering data

Version
AC voltage version, Auxiliary and alarm contact, TN-C-S, TN-S, IT with N, IT without N, TT
Order No.
8000104168
Type
PVC AC 1I 1O SPD2R + RJ45 04
GTIN (EAN)
4099986573475
Qty.
1  Styk

Dimensions and weights

Depth
132  mm
Depth (inches)
5,197  inch
Height
200  mm
Height (inches)
7,874  inch
Width
200  mm
Width (inches)
7,874  inch
Net weight
2.100,243  g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
bdab5698-6a20-4370-8e28-8810d882d01a

Rated data IEC / EN

Discharge current In (8/20µs) wire-PE
20 kA
Frequency range, max.
60  Hz
Frequency range, min.
50  Hz
Integrated back-up fuse
No
Low voltage network
TN-C-S
TN-S
IT with N
IT without N
TT
Max. continuous voltage, Uc (AC)
300 V
Number of poles
4
Protection level Up at IN (L/N-PE)
≤ 1.5 kV
Protection level Up at IN (N-PE)
≤ 1.5 kV
Rated voltage (AC)
230  V
Short-circuit current rating ISCCR
50  kA
Signalling contact
250 V 1A 1CO
Voltage type
AC

AC inputs

Connection cross-section, stranded, max.
6  mm²
Connection cross-section, stranded, min.
0,34  mm²
Connection type, AC input cable
PUSH IN
Number of AC inputs
3
Stripping length, rated connection
12  mm
Wire cross-section, solid, max.
6  mm²
Wire cross-section, solid, min.
0,5  mm²

AC outputs

Connection cross-section, stranded, max.
6  mm²
Connection cross-section, stranded, min.
0,34  mm²
Stripping length, rated connection
12  mm
Wire cross-section, solid, max.
6  mm²
Wire cross-section, solid, min.
0,5  mm²

Guarantee

Time interval
5 years

General data

Protection degree
IP65

Inputs

Number of conduit inlets
1

Classifications

ETIM 6.0
EC000941
ETIM 7.0
EC000941
ETIM 8.0
EC000941
ETIM 9.0
EC000941
ETIM 10.0
EC000941
ECLASS 9.0
27-13-08-05
ECLASS 9.1
27-13-08-05
ECLASS 10.0
27-13-08-05
ECLASS 11.0
27-13-08-05
ECLASS 12.0
27-17-90-90
ECLASS 13.0
27-17-90-90
ECLASS 14.0
27-17-90-90
ECLASS 15.0
27-17-90-90

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform
