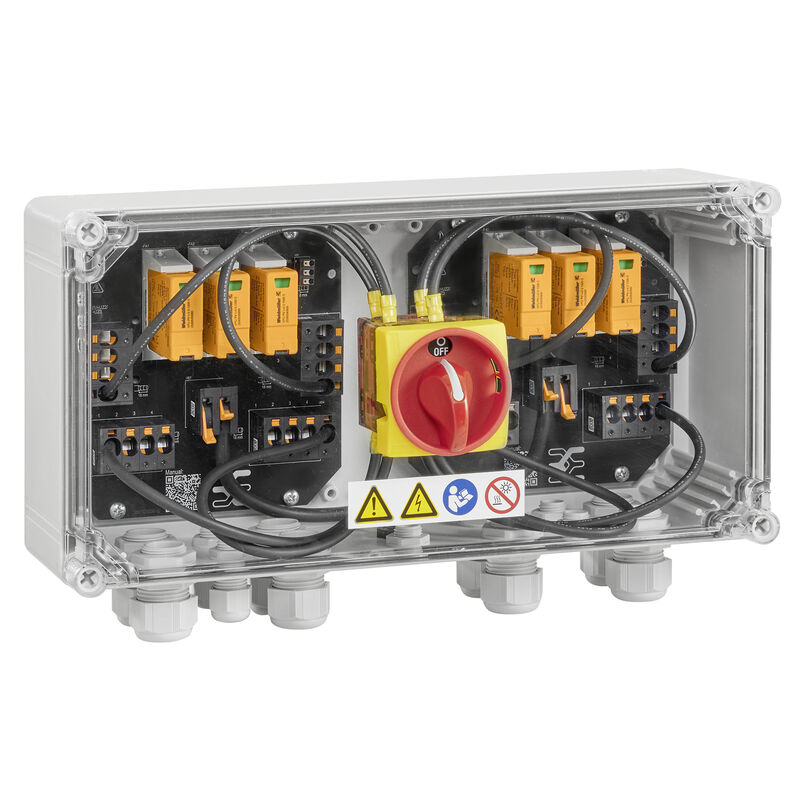

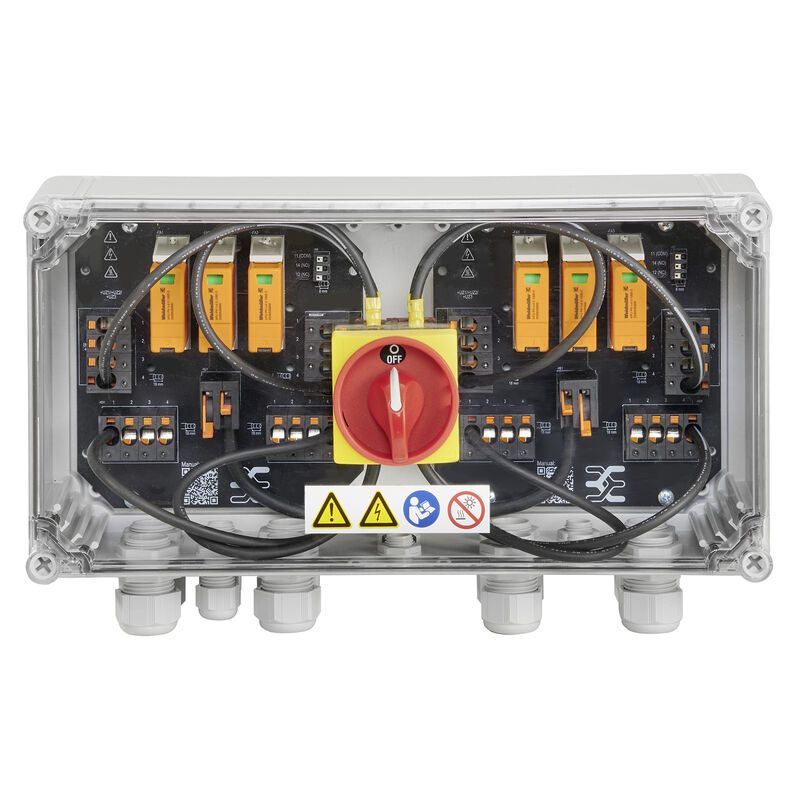

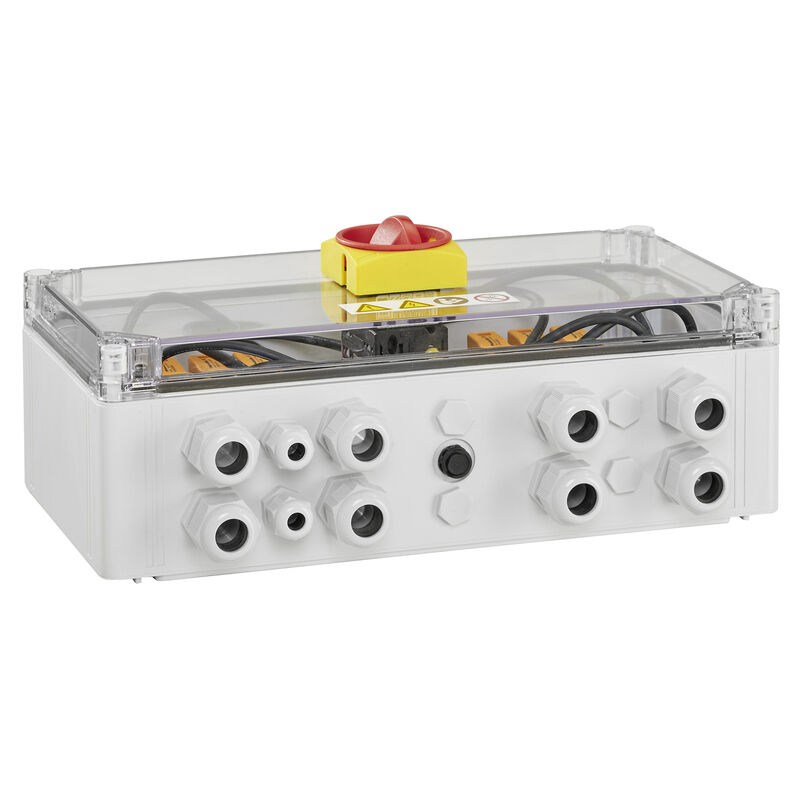

PVN DC 3I 3O 2MPP SW SPD1R CG 11

Photovoltaics, Combiner Box, PV Next, 1100 V, 2 MPP's, 3 Inputs / 3 Outputs per MPP, Surge protection I / II, Switch disconnector, Cable gland

Tuotteen tunnus 2890600000

Ominaisuudet

General ordering data

Version	Photovoltaics, Combiner Box, PV Next, 1100 V, 2 MPP's, 3 Inputs / 3 Outputs per MPP, Surge protection I / II, Switch disconnector, Cable gland
Order No.	2890600000
Type	PVN DC 3I 3O 2MPP SW SPD1R CG 11
GTIN (EAN)	4064675878445
Qty.	1 items

Dimensions and weights

Depth	172 mm
Depth (inches)	6,772 inch
Height	235 mm
Height (inches)	9,252 inch
Width	400 mm
Width (inches)	15,748 inch
Net weight	4 210 g

Temperatures

Ambient temperature	-40 °C…50 °C
Humidity	5...95 %, no condensation

Environmental Product Compliance

RoHS Compliance Status	Compliant
REACH SVHC	Lead 7439-92-1
SCIP	bdab5698-6a20-4370-8e28-8810d882d01a

Guarantee

Time interval

5 years

Electrical characteristics

Current per Maximum Power Point, max.	50 A
Rated DC voltage	1 100 V
Rated short-term current resistance	Rated current: 62,5 A

Enclosure

Connection type string	Internal terminal (with cable gland feed-through)
Enclosure attachment	Via mounting foots
Impact resistance	IK08 in accordance with IEC 62208 IK10 in accordance with IEC 62262
Insulating material	Polyester glass-fibre reinforced, Polycarbonate Polycarbonate
Protection class	II
Type of mounting	Wall mounting

General data

Installation location	Protected outdoor area (Land and Sea)
Protection degree	IP65
Standards	EN 61643-31

Inputs

Amount of maximum power points (MPP)	2
DC Input + & -	Wire connection: Compatible cable crossection: TÜV 2 Pfg1169/08.07 Wire cross-section, min.: 2,5 mm² Wire cross-section, max.: 16 mm² Cable entry: Number of cable entries: 4
Functional earth connector	Cable entry: Number of cable entries: 2 Wire connection: Type of connection: Screw connection Flexible, max. H05(07) V-K: 25 mm² w. wire end ferrule, DIN 46228 pt 1, max.: 16 mm²
Fuse type	Neither fuse cartridge nor holder
Fuses	No
Max. number of DC inputs	per Maximum Power Point 3 inputs connected in parallel
Number of conduit inlets	2
Number of string inputs per MPP	≤ 3
Surge protection auxiliary contact	Cable entry: Number of cable entries: 2 Wire connection: Type of connection: Tension clamp connection with actuator Flexible, max. H05(07) V-K: 1,5 mm² w. wire end ferrule, DIN 46228 pt 1, max.: 1,5 mm²
Number of inputs	3

Outputs

DC Output + & -	Wire connection: Type of connection: PUSH IN Compatible cable crossection: TÜV 2 Pfg1169/08.07 Wire cross-section, min.: 2,5 mm² Wire cross-section, max.: 16 mm²
Max. number of DC outputs	per Maximum Power Point 3 outputs connected in parallel

Surge protection DC side

Discharge current I_n (8/20 µs)	20 kA
Discharge current, max. (8/20 µs)	40 kA
Lightning test current I_imp (10/350 µs)	6.25 kA
Maximum continuous operating voltage DC UCPV mode +/-, -/PE, +/PE	1 100 V
Protection level U_p (+/- , -/PE , +/PE)	≤ 3.8 kV
Protection level U_p (+/-)	≤ 3.8 kV
Protection level U_p (+/PE)	≤ 3.8 kV
Protection level U_p (-/PE)	≤ 3.8 kV
PV system voltage, max. U_cpv	1 100 V
Requirements class	Type I/II
Short-circuit curent I_SCPV	11 000 A
Standards	EN 61643-31
Standby power consumption P_C	<0.2 W
Surge protection DC side	1000 V type I + II
Total discharge current I_total ( 8/20µs)	50 kA
Total discharge current I_total (10/350µs)	12,5 kA

DC load break switch

Motor drive available	No
Number of breaking operation cycles at rated current	300
Number of operating cycles	10000
Rated impulse withstand voltage	8 kV
Rated short-circuit making current	1,4 A
Switch disconnector execution	switch in cover
Switching disconnector capacity	DC-PV1 IEC 60947-3

Important note

Product information

The SCIP number was assigned due to a lead content of more than 0.1 % of the net weight.

Safe use instruction according to ECHA:
The identification of the hazardous substance is sufficient to allow safe use of the article throughout its life cycle, including the service life, disassembly and waste/recycling phase

Downloads

Approval/Certificate/Document of Conformity	[Declaration of Conformity 3In/Out 2MPP New](https://mdcop.weidmueller.com/mediadelivery/asset/900_318549)

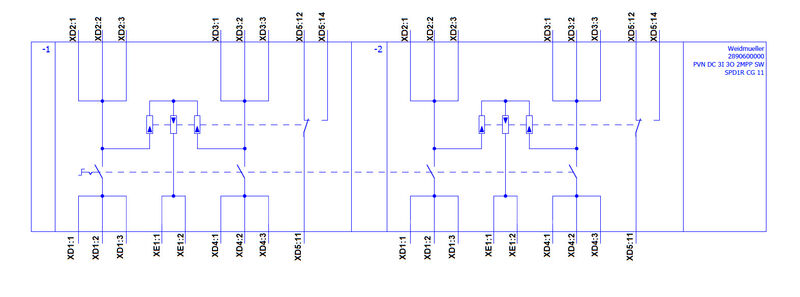

Engineering Data	[CAD data -- PV Next Schematic Diagram](https://mdcop.weidmueller.com/mediadelivery/asset/900_107149) [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_302139)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2890600000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2890600000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2890600000&norm=0)
Technical Documentation	[2932710000_00_03-2023_DRILL-TEMP_PV-Next_20-40](https://mdcop.weidmueller.com/mediadelivery/asset/900_295796)
User Documentation	[Manual PV Next String Combiner Box](https://mdcop.weidmueller.com/mediadelivery/asset/900_96571) [MANUAL PV NEXT IT/ES/FR](https://mdcop.weidmueller.com/mediadelivery/asset/900_153695) [Manual PV Next Mini](https://mdcop.weidmueller.com/mediadelivery/asset/900_318996) [Manual PV Next Mini double enclosure](https://mdcop.weidmueller.com/mediadelivery/asset/900_318997)
White paper	[Fact Sheet DE PV CB Wie man Gebäude gegen Blitzeinschläge schützt](https://mdcop.weidmueller.com/mediadelivery/asset/900_249825) [Fact Sheet DE PV Wie man die Lebensdauer eines GAK verlängert](https://mdcop.weidmueller.com/mediadelivery/asset/900_249826) [Fact-Sheet EN PV CB Load break switch](https://mdcop.weidmueller.com/mediadelivery/asset/900_290549) [Fact Sheet EN CB Combining PV strings](https://mdcop.weidmueller.com/mediadelivery/asset/900_290550) [Fact Sheet EN PV Combiner Box earthing](https://mdcop.weidmueller.com/mediadelivery/asset/900_303983) [Fact Sheet DE PV Combiner Box Erdung](https://mdcop.weidmueller.com/mediadelivery/asset/900_303984) [Fact Sheet DE PV CB Wann Sicherungen zu installieren sind](https://mdcop.weidmueller.com/mediadelivery/asset/900_249827) [Fact Sheet DE CB PV NEXT](https://mdcop.weidmueller.com/mediadelivery/asset/900_249828) [Fact Sheet EN PV CB When DC fuses are mandatory to install](https://mdcop.weidmueller.com/mediadelivery/asset/900_249829) [Fact Sheet EN CB PV NEXT](https://mdcop.weidmueller.com/mediadelivery/asset/900_249830) [Fact Sheet EN PV How to protect buildings against lightning strikes](https://mdcop.weidmueller.com/mediadelivery/asset/900_249831) [Fact Sheet EN PV How to extend the life time of a Combiner Box](https://mdcop.weidmueller.com/mediadelivery/asset/900_249832) [Fact Sheet DE PV CB Lastentrennschalter](https://mdcop.weidmueller.com/mediadelivery/asset/900_290540) [Fact Sheet DE CB PV Strings kombinieren](https://mdcop.weidmueller.com/mediadelivery/asset/900_290541)
Catalogues	[Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp)

Classifications

ETIM 6.0	EC002928
ETIM 7.0	EC002928
ETIM 8.0	EC003857
ETIM 9.0	EC003857
ETIM 10.0	EC003857
ECLASS 9.0	22-57-92-03
ECLASS 9.1	22-57-02-90
ECLASS 10.0	22-57-02-90
ECLASS 11.0	22-57-02-92
ECLASS 12.0	22-57-02-92
ECLASS 13.0	22-57-02-92
ECLASS 14.0	22-57-02-92
ECLASS 15.0	22-57-02-92

Tender specification sheets

Long specification

Combiner box for inverters with 2 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to EN 51543-32.

MPP1:
3 inputs, connection via M25 cable gland with 3x7mm Ø cable entry. PUSH IN connection / 2.5 - 6mm² single-wire, multi-wire, with/without ferrule.
3 outputs, connection via M25 cable gland with 3x7mm Ø cable entry. PUSH IN connection / 2.5 - 6mm² single-wire, multi-wire, with/without ferrule.

MPP2:
identical to MPP1

Max. string voltage Uoc: 1100V
1 class/type I + II combined arrester with signal contact
With load break switch for safe separation of the string lines
Connection of the signal contact via cable glands (8-12mmØ) max. conductor cross-section: 1.5mm²
Connection of the functional earth via cable glands (8-12mmØ) Conductor cross-section: 16-25mm²
Protection class: IP65
All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 235x200x172 mm

Approval according to low voltage switchgear and controlgear IEC 61439-1:2011 and EN 61439-2:2011
