RS PLC IPC-620 12-POINTS
RS PLC IPC-620 12-POINTS
RS PLC IPC-620 12-POINTS

RS PLC IPC-620 12-POINTS

Ürün No. 6720000787
Veri sayfasını indir Ürün İndirmleri
İlgili ürünler 1
Approvals Ogólne dane zamówieniowe Dimensions and weights Temperatures Environmental Product Compliance Bemessungsdaten UL Connection data Connection data Ratings data Aislamiento aplicado (EN50178) Coordinamento di isolamento passivo (IEC/UL6101060664-1) Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

Ogólne dane zamówieniowe

Order No.
6720000787
Type
RS PLC IPC-620 12-POINTS
GTIN (EAN)
4050118485790
Qty.
1 adet

Dimensions and weights

Depth
57 mm
Depth (inches)
2,244 inch
Height
240 mm
Height (inches)
9,449 inch
Width
29 mm
Width (inches)
1,142 inch
Net weight
1.013,238 g

Temperatures

Storage temperature
-20...60 °C
Operating temperature
-20...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
3820ceea-2b49-4a61-bda5-08f3867b3419

Bemessungsdaten UL

Operating temperature (UL), max.
50 °C
Operating temperature (UL), min.
5 °C
Storage temperature UL, max.
50 °C
Storage temperature UL, min.
0 °C
Rated current
5 A
Napięcie znamionowe UN
150 V UC

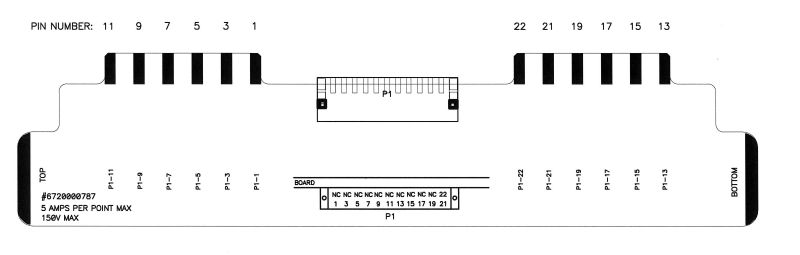

Connection data

Connection (field side)
Card edge
Connection on control side
Rozteč 3,5, S2L konektor
Number of poles (control side)
12 Pole

Connection data

Connection (field side)
Card edge

Ratings data

Operating voltage
150 V
Current per channel, max.
2 A
Total operating current
16 A

Aislamiento aplicado (EN50178)

According to
UL
Pollution severity level
2

Coordinamento di isolamento passivo (IEC/UL6101060664-1)

Rated insulation voltage
150 V UC
Surge voltage category
II
Pulse voltage test (1,2 / 50 ?s) (standard 4)
1,5 kV

Classifications

ETIM 8.0
EC002584
ETIM 9.0
EC002584
ETIM 10.0
EC002584
ECLASS 14.0
27-33-02-92
ECLASS 15.0
27-33-02-92
