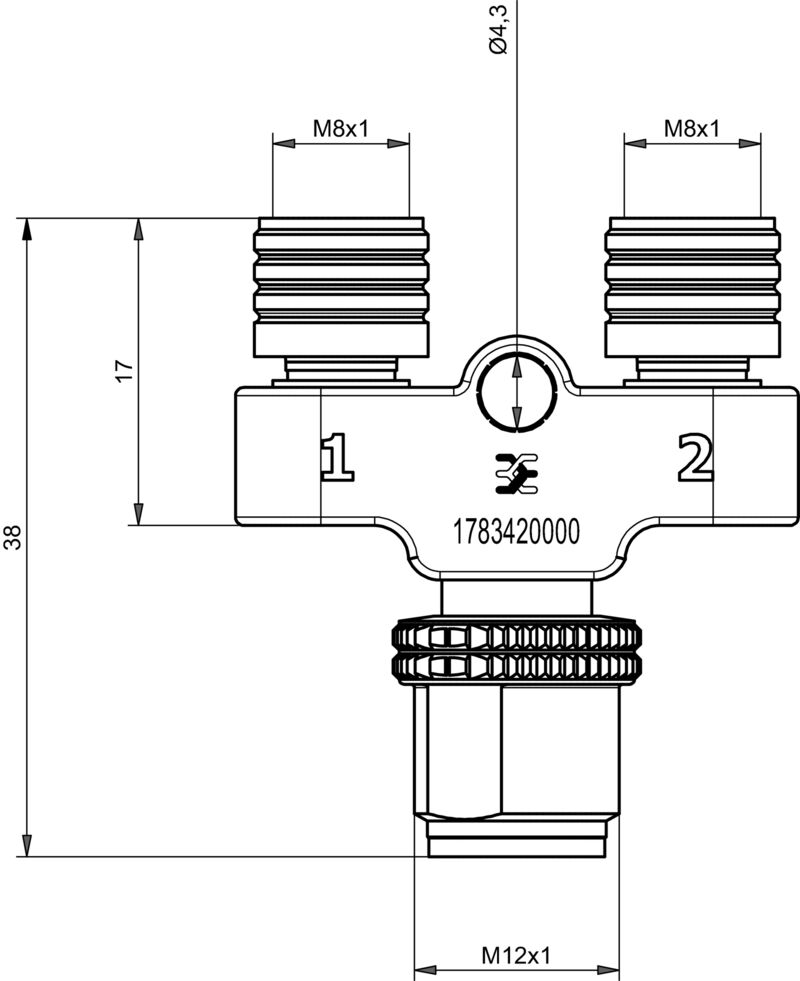

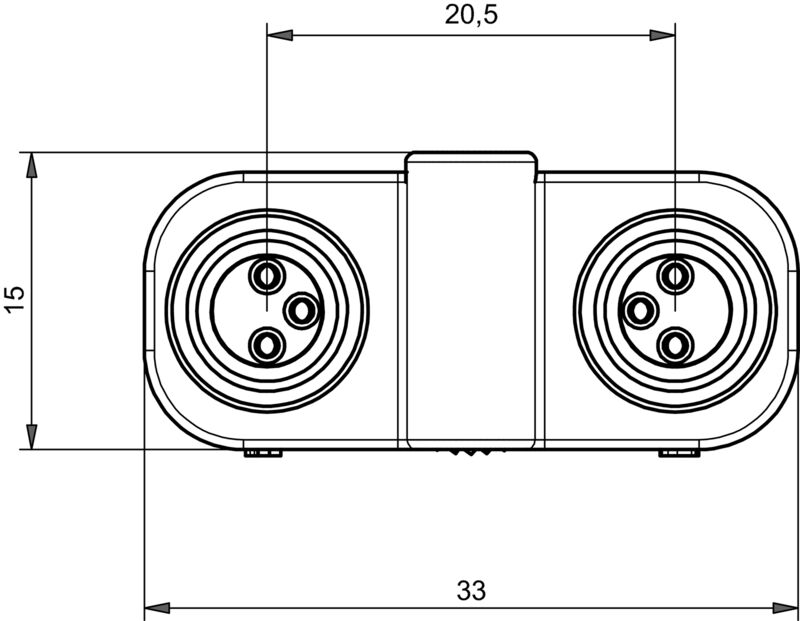

Maßzeichnung
SAI-Y-4-4/2-4 M12/M8
Rysunek wymiarowy
SAI-Y-4-4/2-4 M12/M8

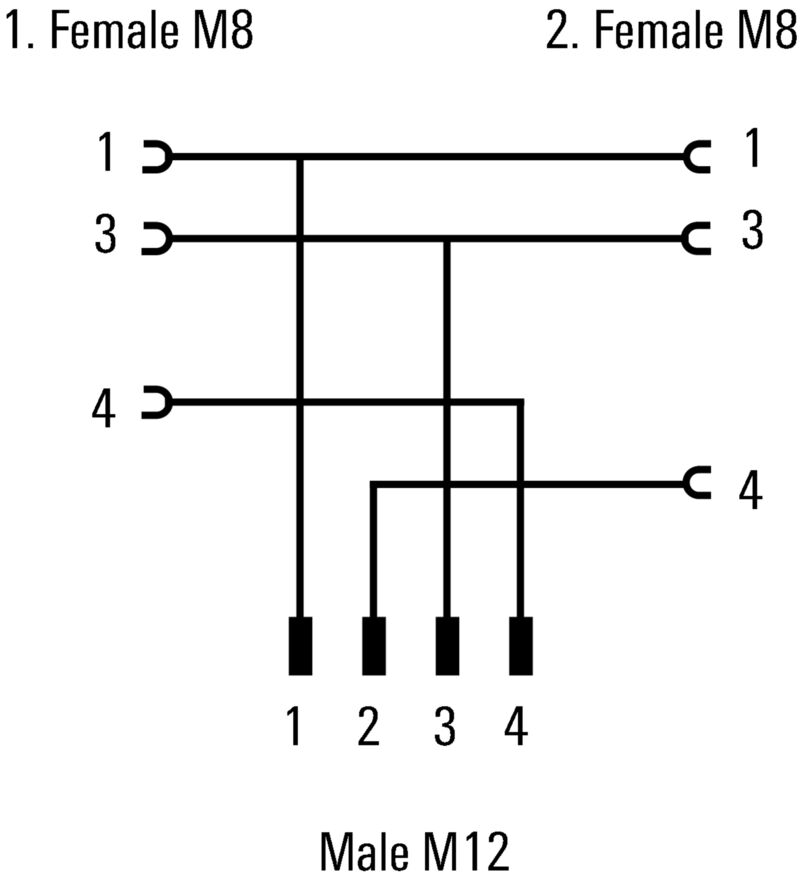

Schemat połączeń

SAI-Y-4-4/2-4 M12/M8

Y-plug, M12 / M8, Signal distributor

ID výrobku 1783420000
Veri sayfasını indir Engineeringondersteuning
Příbuzné výrobky 13
Approvals General ordering data Dimensions and weights Environmental Product Compliance Connection data Dati tecnici connettori ad innesto liberamente confezionabili Standards Общие данные Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Y-plug, M12 / M8, Signal distributor
Order No.
1783420000
유형
SAI-Y-4-4/2-4 M12/8
GTIN(EAN)
4032248183357
Qty.
1 items

Dimensions and weights

Net weight
14,96 g

Environmental Product Compliance

RoHS 준수 상태
Compliant with exemption
RoHS 면제(해당되거나 알려진 경우)
6c
REACH SVHC
Lead 7439-92-1
SCIP
d9f8df28-a704-45a9-a1cb-1fe1442b5ef0

Connection data

Jednotlivý výstup 1 - zásuvný konektor
M8 socket
Single outlet 2 - plug-in connector
M8 - Buchse
Skupinový výstup - zásuvný konektor
M12 pin
Tightening torque
M8: 0.5 - 0.6 Nm
M12: 0.8 - 1.2 Nm

Dati tecnici connettori ad innesto liberamente confezionabili

IP67
Coding
M12 = A-coded / M8 = none
Contact surface
Au (Gold)
Housing main material
PUR
Materiál kroužku se závitem
Diecast zinc
Nominal current
4 A
Nominal voltage
24 V
Number of poles
4
Pollution severity
3
Rozsah teplot krytu
-25…+90 °C
Shield connection
No

Standards

Connector standard
IEC 61076-2-101
IEC 61076-2-104

Общие данные

IP67
Anschluss 1
M12/M8
Contact surface
Au (Gold)
Csatlakozási menet
M12 / M8
Gehäusebasismaterial
PUR
Kódolás
M12 = A-coded / M8 = none
Ledarytterdiameter
-
Materiale dei contatti maschio
CuZn
Nennspannung
24 V
Nennstrom
4 A
Polzahl
4
Przyłącze 2
Screw
Przyłącze ekranu
No
Temperaturområde kapsling
-25…+90 °C
Verschmutzungsgrad
3
Érintkező anyaga, aljzat
CuZn

Classifications

ETIM 8.0
EC002925
ETIM 9.0
EC002925
ETIM 10.0
EC002925
ECLASS 14.0
27-44-01-06
ECLASS 15.0
27-44-01-06
