SAIL-M12BGM12G-CD-5.0A
SAIL-M12BGM12G-CD-5.0A
Detailed drawing
Straight socket
SAIL-M12BGM12G-CD-5.0A
Pole scheme
M12 = A-coded
SAIL-M12BGM12G-CD-5.0A
Wiring diagram
SAIL-M12BGM12G-CD-5.0A
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BGM12G-CD-5.0A

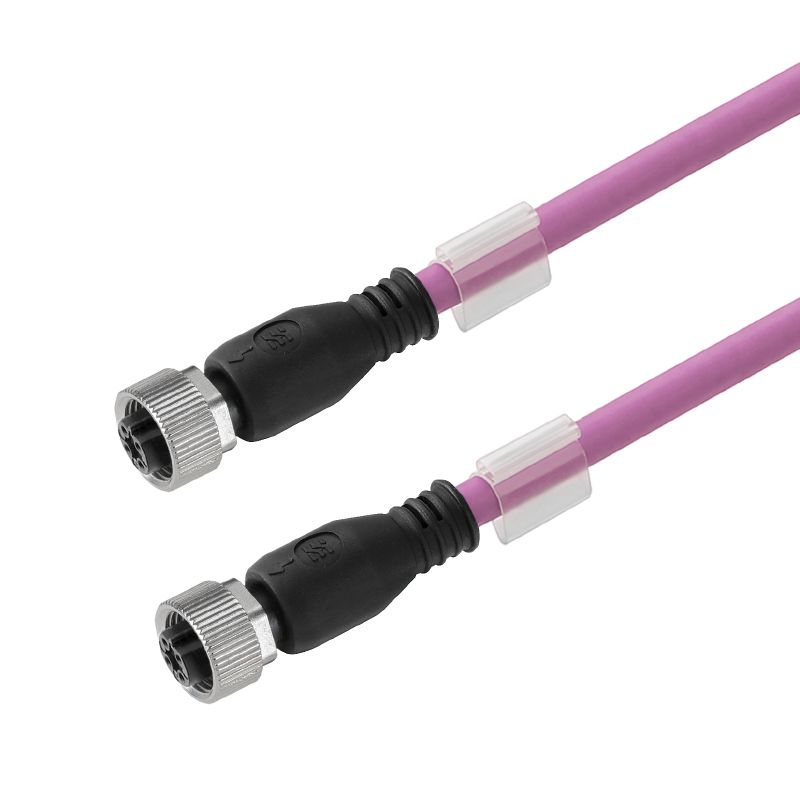

Bus line, Connecting line, M12 / M12, Number of poles: 5, 5 m, Female socket, straight - Female socket, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Ürün No. 2455990500
Veri sayfasını indir Product Downloads Engineering Support
İlgili ürünler 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Bus line, Connecting line, M12 / M12, Number of poles: 5, 5 m, Female socket, straight - Female socket, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Order No.
2455990500
Type
SAIL-M12BGM12G-CD-5.0A
GTIN (EAN)
4050118505320
Qty.
1 adet

Dimensions and weights

Net weight
337 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
3 Mio
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Halogen
No
Hibrid kábel
No
Insulation
TPE
Kabellänge
5 m
Kodowanie kolorami
white
blue
red
black
Konfigurálható kábelhossz
No
Külső bevonat az UL AWM stílusnak megfelelően
20236 (80 °C / 30 V)
Mantelfarbe
violet
Number of poles
5
Outside diameter
7 mm ± 0.3 mm
Schleppkettentauglichkeit
Yes
Sheath material
PUR
Shielded
Yes
Säker mot svetsstänk
No
Temperature range, moving
-10...80 °C
Vitesse
180 m/s
Welding spark resistance
No
Wire cross section (Print/Online)
2 x 0.34 mm² + 2 x 0.22 mm²
Диапазон температур, стацион.
-40...80 °C
조사 교차결합
No

General technical data

Coding
A-coded
Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
125 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Temperature range of housing
-25…+80 °C
Threaded ring material
Brass, nickel-plated
Tightening torque
M12: 0.8 - 1.2 Nm
Version
Female socket, straight - Female socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
125 V

Plug, left

Plug left
M12, A-coded, IP67, female contact, straight, Plastic, shielded

Plug, right

Plug right
M12, A-coded, IP67, female contact, straight, Plastic, shielded

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
