| Version | Bus line, Connecting line, M12, Number of poles: 5, 3 m, pin, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No |
| Order No. | 1268520000 |
| Type | SAIL-M12G-USB-3.0U |
| GTIN (EAN) | 4050118057393 |
| Qty. | 1 items |
| Net weight | 105 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1c533b66-fcff-4da5-b89f-fd55fbf5cb55 |
| Cable length | 3 m |
| Colour coding |
white
green red black |
| Configurable cable length | No |
| Halogen | No |
| Hybrid cable | No |
| Insulation | PE |
| Irradiation crosslinked | No |
| Number of poles | 5 |
| Number of wires | 4 |
| Outer cladding in accordance with UL AWM style | 20963 (80 °C / 30 V) |
| Sheath material | PUR |
| Sheathing colour | black |
| Shielded | Yes |
| Coding | A-coded |
| Connection thread | M12 |
| Contact surface | Gold-plated |
| Housing main material | PUR |
| Insulation strength | 108 Ω |
| jumpered | No |
| LED | No |
| Pollution severity | 3 |
| Protection degree | IP67 |
| Rated current | 1 A |
| Rated voltage | 5 V |
| Temperature range of housing | -25…+80 °C |
| Threaded ring material | Brass, nickel-plated |
| Tightening torque | M12: 0.8 - 1.2 Nm |
| Version | pin, straight |
| Insulation strength | 108 Ω |
| Rated voltage | 5 V |
| Colour coding |
white
green red black |
| Insulation | PE |
| Number of wires | 4 |
| Sheathing colour | black |
| Insulation strength | 108 Ω |
| Rated current | 1 A |
| Halogen | No |
| Plug left | connector, M12, A-coded, Number of poles: 5, IP67, male contact, straight, unshielded |

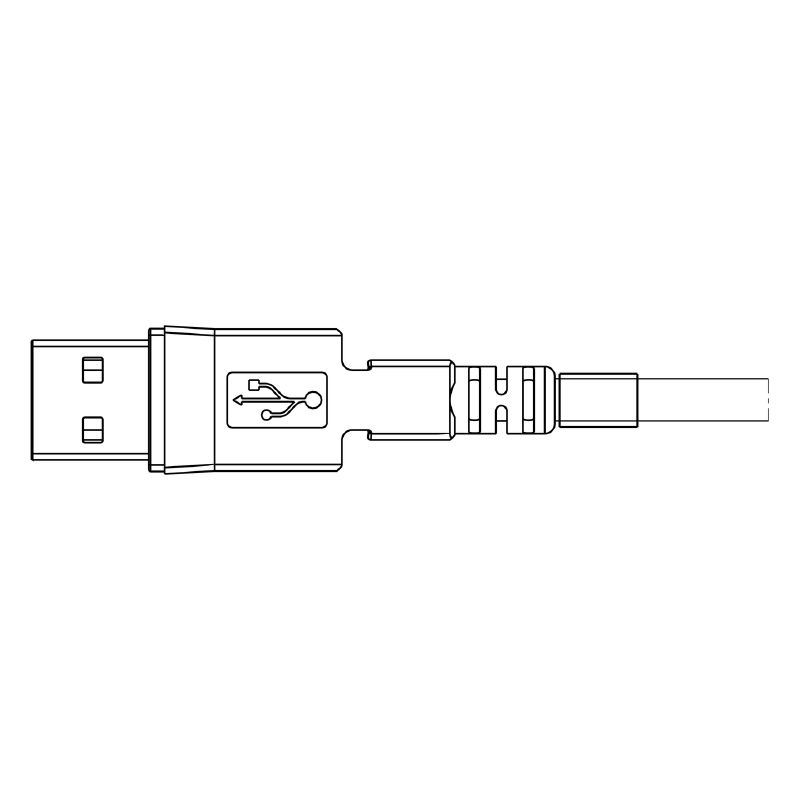

| Plug right | connector, USB A, Number of poles: 4, IP67, male contact, straight, unshielded |
| Plug left | connector, M12, A-coded, Number of poles: 5, IP67, male contact, straight, unshielded |
| Plug right | connector, USB A, Number of poles: 4, IP67, male contact, straight, unshielded |
| Eplan Data Portal | |
| Catalogues | |
| Brochures |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
| ETIM 9.0 | EC002599 |
| ETIM 10.0 | EC002599 |
| ECLASS 9.0 | 27-06-03-08 |
| ECLASS 9.1 | 27-06-03-08 |
| ECLASS 10.0 | 27-06-03-08 |
| ECLASS 11.0 | 27-06-03-08 |
| ECLASS 12.0 | 27-06-03-08 |
| ECLASS 13.0 | 27-06-03-08 |
| ECLASS 14.0 | 27-06-03-08 |
| ECLASS 15.0 | 27-06-03-08 |
| Approvals |   |
| ROHS | Conform |
