SDI 2CO F ECO
Product image
SDI 2CO F ECO

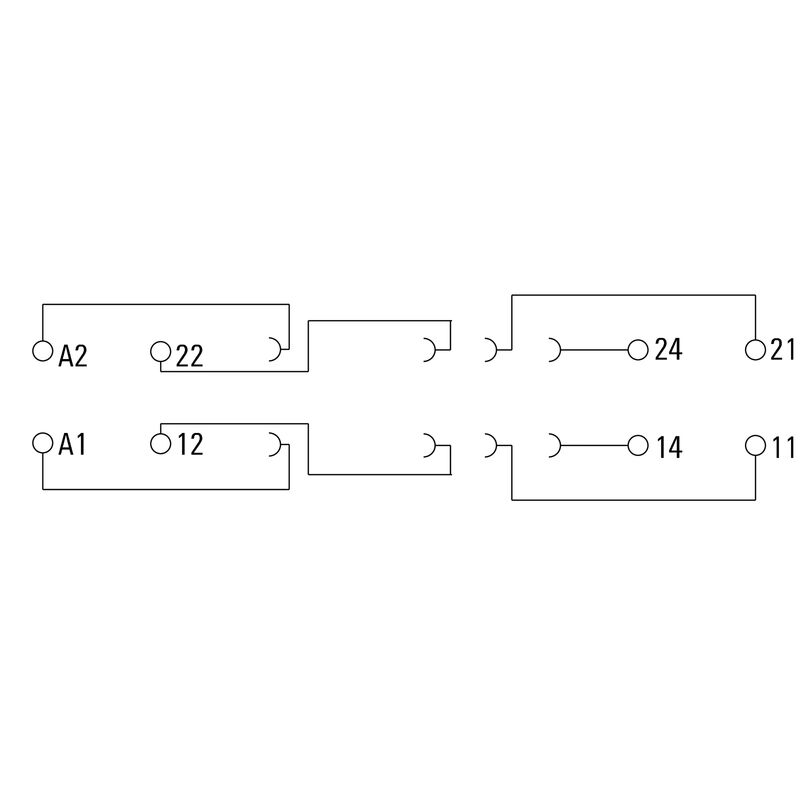

Kapcsolási rajz
SDI 2CO F ECO

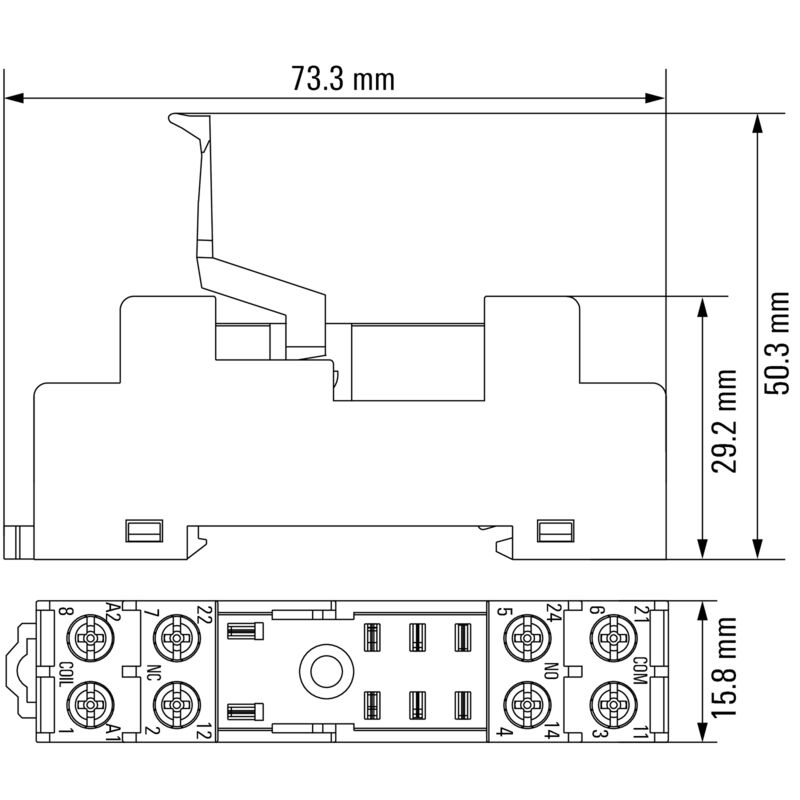

Dimensional drawing
SDI 2CO F ECO

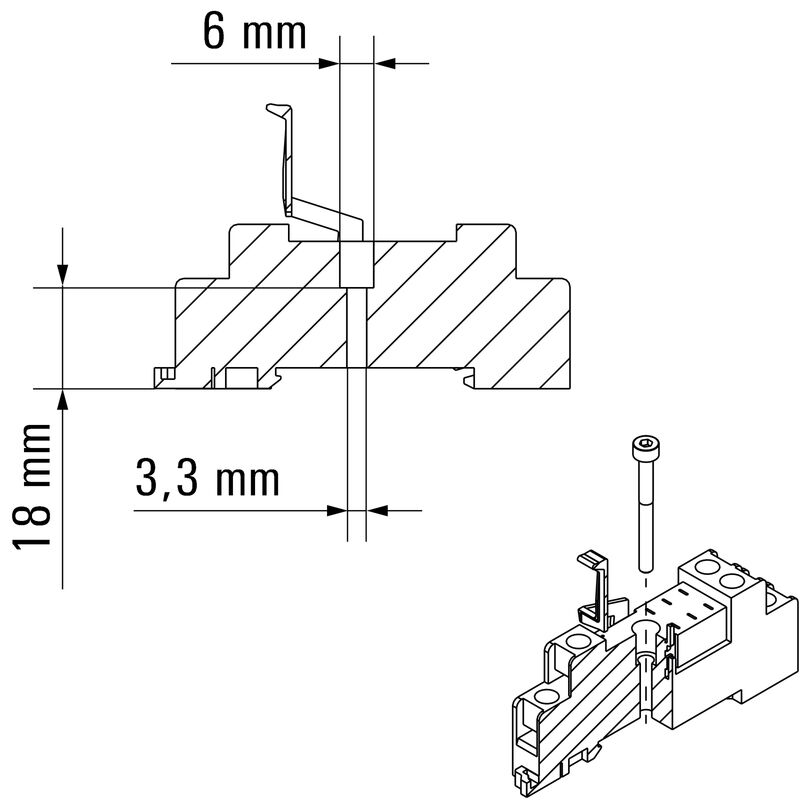

Dimensional drawing

SDI 2CO F ECO

D-SERIES DRI, Relay socket, Number of contacts: 2, CO contact, Continuous current: 8 A, Screw connection

Ürün No. 7760056349
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 5 aksesuarıdır 25 Şunun karşı parçasıdır 25 İlgili ürünler 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Load side General data Insulation coordination Connection data Important note Classifications

Approvals

Jóváhagyások
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Változat
D-SERIES DRI, Relay socket, Number of contacts: 2, CO contact, Continuous current: 8 A, Screw connection
Rendelési szám
7760056349
Típus
SDI 2CO F ECO
GTIN (EAN)
6944169739965
Qty.
10 adet

Dimensions and weights

Mélység
29,2 mm
Depth (inches)
1,15 inch
Magasság
73,3 mm
Height (inches)
2,886 inch
Szélesség
15,8 mm
Width (inches)
0,622 inch
Net weight
25 g

Temperatures

Tárolási hőmérséklet
-40 °C...85 °C
Ambient temperature
-40 °C…70 °C
Humidity
35...85 % rel. humidity, no condensation

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Load side

Nennschaltspannung
300 V AC
Continuous current
8 A
Max. switching voltage, AC
300 V
Contact type
2 CO contact

General data

Versione
flat design
Mounting rail
TS 35
Colour
black
UL94 brännbarhetsklass för komponent
  • Component:
    Housing
  • UL94 flammability rating:
    V-2
  • Component:
    Mounting foot
  • UL94 flammability rating:
    HB
  • Component:
    Retaining clip
  • UL94 flammability rating:
    HB

Insulation coordination

Jmenovité napětí
250 V
Pollution severity
2
Surge voltage category
III
Insulating material group
IIIb
Clearance and creepage distances for control side - load side
≥ 3 mm
Dielectric strength for control side - load side
4 kVeff / 1 Min.
Dielectric strength of neighbouring contacts
2.5 kVeff / 1 Min.
Impulse withstand voltage
4.8 kV (1.2/50 µs)
Protection degree
IP20

Connection data

Vezetékcsatlakozás-technika
Screw connection
Csupaszolási hossz, névleges csatlakozás
8 mm
Meghúzási nyomaték, min.
0,5 Nm
Tightening torque, max.
0,8 Nm
Clamping range, rated connection
1,5 mm²
Clamping range, min.
0,5 mm²
Clamping range, max.
2,5 mm²
Wire cross-section, solid, min.
0,5 mm²
Wire cross-section, solid, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1,5 mm²
Wire connection
M3 forked cable lug (insulated)
Blade size
size PH1

Important note

Termékinformáció
For this socket, a cross connection is not available.

For this socket, markers are not available.



Classifications

ETIM 8.0
EC001456
ETIM 9.0
EC001456
ETIM 10.0
EC001456
ECLASS 14.0
27-37-16-03
ECLASS 15.0
27-37-16-03
