PAP PRV/PPV4 BL

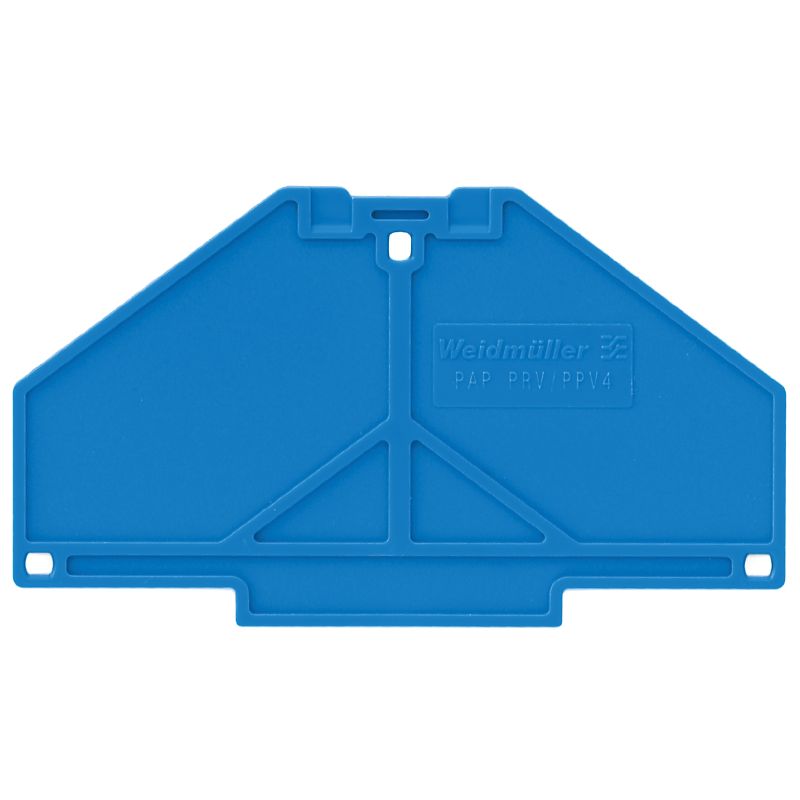

Product image

PAP PRV/PPV4 BL

P-series, End plate, blue, 3 mm

Produkt ID 1268010000
Download datablad Engineering-support Produktdownloads
Er tilbehør til 14 Anvendte produkter 72
Approvals General ordering data Dimensiones y pesos Hőmérsékletek Conformité environnementale du produit Material data System specifications Další technická data General Classifications

Approvals

ROHS
Conform

General ordering data

Version
P-series, End plate, blue, 3 mm
Order No.
1268010000
Type
PAP PRV/PPV4 BL
GTIN (EAN)
4032248112999
Qty.
10 Styk

Dimensiones y pesos

Depth
39,9 mm
Depth (inches)
1,571 inch
Height
70 mm
Height (inches)
2,756 inch
Width
3 mm
Width (inches)
0,118 inch
Net weight
4,889 g

Hőmérsékletek

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
125 °C

Conformité environnementale du produit

RoHS Compliance Status
Conforme sans exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.034 kg CO2 eq.

Material data

Basic material
Polycarbonate
Colour
blue
UL 94 flammability rating
V-0

System specifications

Version
侧板

Další technická data

Installation advice
Direktmontage
Snap-on
Yes
Type of mounting
Direct mounting

General

Installation advice
Direct mounting

Classifications

ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
