Item No. 2593120000
Download data sheet Product Downloads
Related products 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Protection Ex - Data General data Rated data IEC / EN Connection data General data Ratings IECEx/ATEX/cUL Guarantee Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

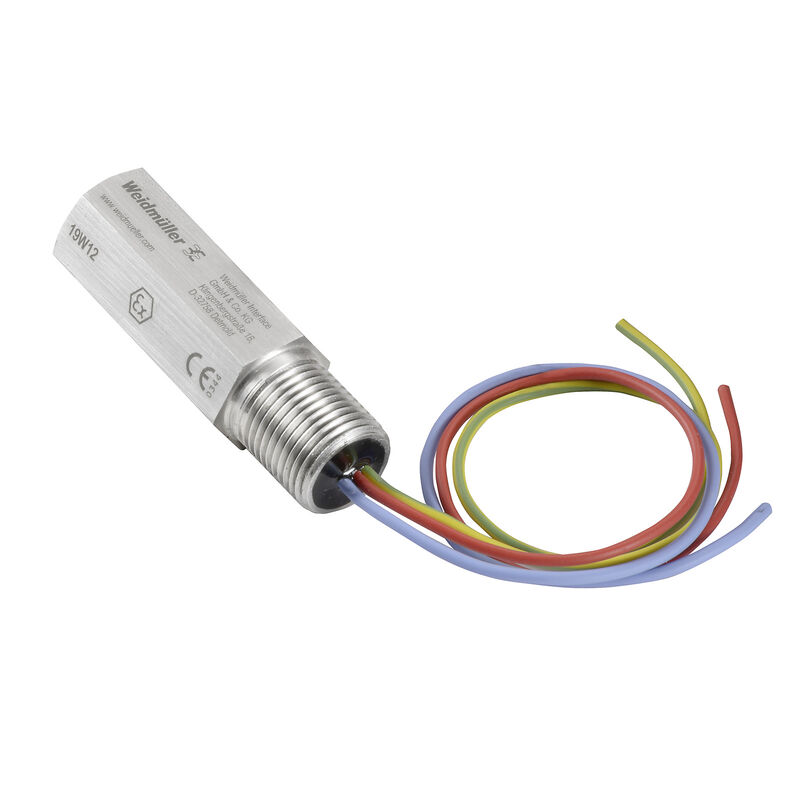

General ordering data

Order No.
2593120000
Type
VCG 24V EX 2 NPT1/2
GTIN (EAN)
4050118605105
Qty.
1 items

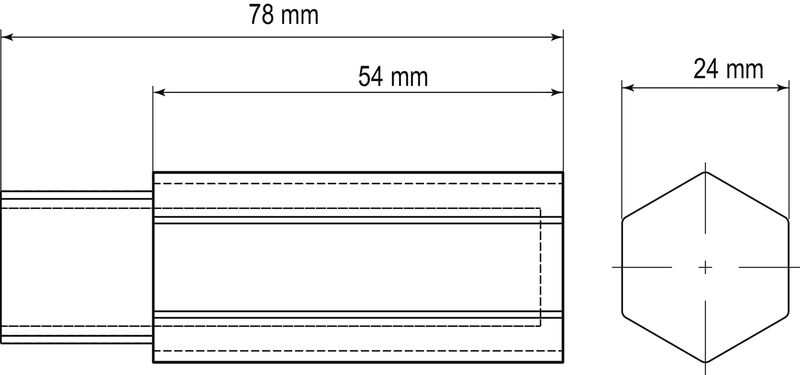

Dimensions and weights

Height of lowest version
54 mm
Width
28 mm
Width (inches)
1.102 inch
Length
78 mm
Length (inches)
3.071 inch
Diameter
28 mm
Net weight
180 g

Temperatures

Storage temperature
-30 °C...60 °C
Operating temperature
-30 °C...60 °C

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant
REACH SVHC
No SVHC above 0.1 wt%

Protection Ex - Data

ATEX - dust labelling
IEC Ex BAS 18.0085X
Ex ia IIIC T85 °C Da
(-30 °C≤Ta≤50 °C)
ATEX - gas labelling
18ATEX0141X
II 1GD
Ex ia II T6 Ga
(-30 °C≤Ta≤50 °C)
Input power, max. PI
2 W
Input current, max. Ii
0.8 A
Internal capacity, max. CI
0 nF
Внутренняя индуктивность, макс. LI
60 µH

General data

Colour
silver
FIELD BUS FOUNDATION BUS H1 compatible
According to IEC 61158-2
Protection degree
IP67
Segment
Measurement - Monitoring - Setting
Version
Stainless steel screw mounting housing

Rated data IEC / EN

Corrente di scarica Imax. (8/20µs) filo-filo
10 kA
Dielectric strength at FG against PE
≥ 500 V
Discharge current Imax (8/20µs) wire-PE
10 kA
Discharge current In (8/20µs) wire-wire
5 kA
Frequency range, min.
0 Hz
Jmenovitý proud zátěže IL
800 mA
Lightning test current, Iimp (10/350 µs) Wire-PE
1 kA
Lightning test current, Iimp (10/350 µs) wire-wire
1 kA
Rated voltage (AC)
24 V
Rated voltage (DC), max.
33 V
Response time / fallback time
< 1 ns

Connection data

Cross-section
1 mm²
Wire connection method
Cable length: 250 mm (min.)
Type of connection
Screw connection

General data

Protection degree
IP67
Colour
silver

Ratings IECEx/ATEX/cUL

ATEX - dust labelling
IEC Ex BAS 18.0085X
Ex ia IIIC T85 °C Da
(-30 °C≤Ta≤50 °C)
ATEX - gas labelling
18ATEX0141X
II 1GD
Ex ia II T6 Ga
(-30 °C≤Ta≤50 °C)

Guarantee

Time interval
5 years

Classifications

ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 14.0
27-17-15-02
ECLASS 15.0
27-17-15-02
