WPD 103 2X70/2X50 BL

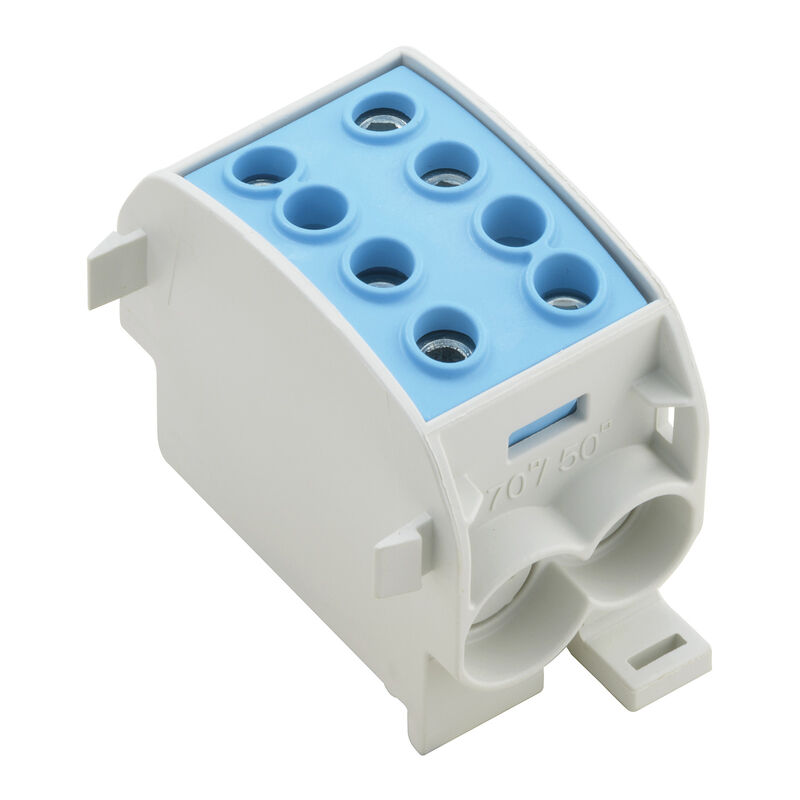

Product image
WPD 103 2X70/2X50 BL
WPD 103 2X70/2X50 BL
WPD 103 2X70/2X50 BL
WPD 103 2X70/2X50 BL
WPD 103 2X70/2X50 BL

WPD 103 2X70/2X50 BL

Potential distributor terminal, Screw connection, blue, 70 mm², 300 A, 1000 V, Number of connections: 4, Number of levels: 1

Product ID 1561780000
Openen in configurator
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 6 Verwante producten 33
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) General Rating data UL rating data Classifications

Approvals

Dopuszczenia
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Változat
Potential distributor terminal, Screw connection, blue, 70 mm², 300 A, 1000 V, Number of connections: 4, Number of levels: 1
Rendelési szám
1561780000
Típus
WPD 103 2X70/2X50 BL
GTIN (EAN)
4050118366815
Qty.
3 items

Dimensions and weights

Mélység
53,3 mm
Depth (inches)
2,098 inch
Posizione verticale
63 mm
Height (inches)
2,48 inch
Szélesség
32,8 mm
Width (inches)
1,291 inch
Net weight
171 g

Temperatures

보관 온도
-25 °C...55 °C
Temperatura otoczenia
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant with exemption
Wyłączenie RoHS (w przypadkach, w których ma to zastosowanie / jest znane)
6c
REACH SVHC
Lead 7439-92-1
SCIP
9b5f0838-1f0b-4c14-9fc7-3f5e6ee75be2

Material data

Basic material
Wemid
Colour
blue
UL 94 flammability rating
V-0

System specifications

Version
Screw connection
End cover plate required
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
Yes
PE connection
No
Mounting rail
TS 35
N-function
Yes
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
Yes
Installation advice
Terminal rail / mounting plate
Open sides
closed
Snap-on
Yes
Type of mounting
Snap-on
With snap-in pegs
Yes

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Conductors for clamping (rated connection)

Clamping range, max.
70 mm²
Clamping range, min.
4 mm²
Connection cross-section, stranded, max.
70 mm²
Connection cross-section, stranded, min.
4 mm²
Number of connections
4
Type of connection
Screw connection
Wire connection cross section AWG, min.
AWG 14
Wire connection cross section, finely stranded, max.
0 mm²
Wire connection cross section, finely stranded, min.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
50 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
4 mm²
Wire connection cross-section, solid core, max.
70 mm²
Wire connection cross-section, solid core, min.
4 mm²
导线最大压接面积 AWG
AWG 4
联接类型 2
Screw connection
连接方向
on side

General

Liczba biegunów
1
Montageskena obestyckad
TS 35
przekrój przyłącza przewodu AWG, min.
AWG 14
przekrój przyłączeniowy przewodu AWG, maks.
AWG 4
Wskazówka montażowa
Terminal rail / mounting plate
Нормы
IEC 60947-7-1
IEC 61238-1
VDE 0603-2

Rating data

Rated cross-section
70 mm²
Rated voltage
1 000 V
Rated AC voltage
1 000 V
Rated DC voltage
1 000 V
Nominal current
300 A
Current at maximum wires
300 A
Standards
IEC 60947-7-1
IEC 61238-1
VDE 0603-2
Power loss in accordance with IEC 60947-7-x
2,1 W

UL rating data

Certificate No. (cURus)
E60693

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-19
ECLASS 15.0
27-25-01-19
