WPD 233 2X300/2X300 GY
Product image
WPD 233 2X300/2X300 GY
WPD 233 2X300/2X300 GY
WPD 233 2X300/2X300 GY
WPD 233 2X300/2X300 GY
WPD 233 2X300/2X300 GY

WPD 233 2X300/2X300 GY

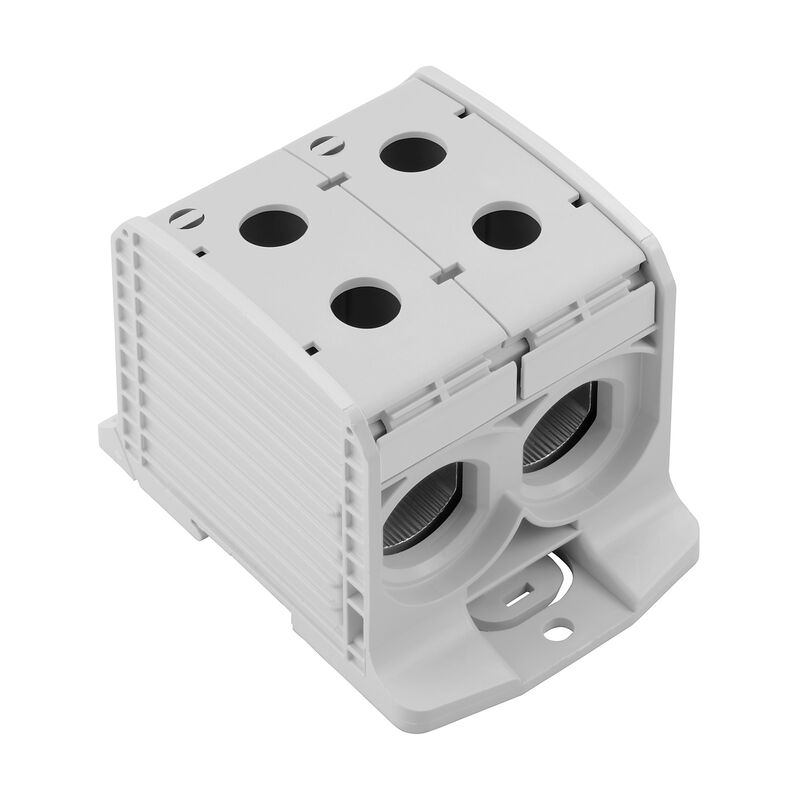

Potential distributor terminal, Screw connection, Light Grey, 300 mm², 520 A, 1000 V, Number of connections: 4, Number of levels: 1

Item No. 2502900000
Open in Configurator
Download data sheet Soutien à l'ingénierie Téléchargements de produits
Accessories 6 Related products 54
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) General Rating data UL rating data Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Potential distributor terminal, Screw connection, Light Grey, 300 mm², 520 A, 1000 V, Number of connections: 4, Number of levels: 1
Order No.
2502900000
Type
WPD 233 2X300/2X300 GY
GTIN (EAN)
4050118516722
Qty.
1 items

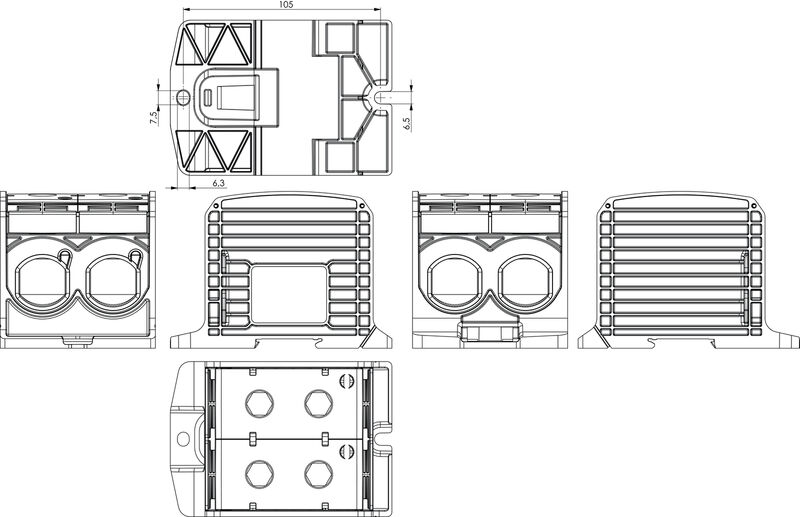

Dimensions and weights

Depth
83,5 mm
Depth (inches)
3,287 inch
Height
118 mm
Height (inches)
4,646 inch
Width
82,6 mm
Width (inches)
3,252 inch
Net weight
628 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
−50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Färgkod
Light Grey
Grado inflamabilidad según UL 94
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
CNEX18ATEX0016U
Certificate No. (IECEX)
IECEXCNEX18.0010U
Max. voltage (ATEX)
1100 V
Current (ATEX)
520 A
Wire cross section max. (ATEX)
300 mm²
Max. voltage (IECEX)
1100 V
Current (IECEX)
520 A

System specifications

Version
Screw connection
Véglap szükséges
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
4
Levels cross-connected internally
No
Conexión PE
No
安装导轨已装备
TS 35
PE function
No

Additional technical data

Explosion-tested version
Yes
Installation advice
Terminal rail / mounting plate
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Conductors for clamping (rated connection)

Clamping range, max.
300 mm²
Clamping range, min.
35 mm²
Connection direction
on side

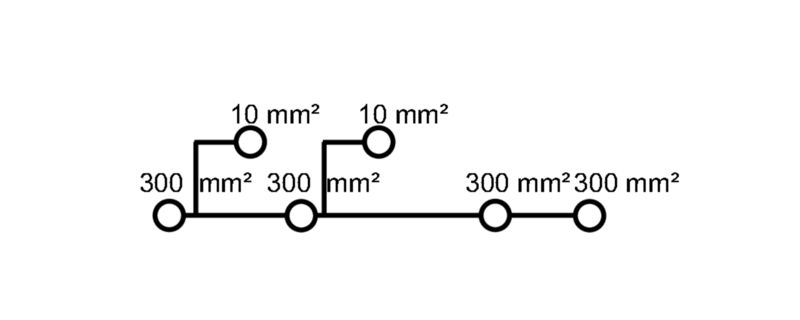

Number of connections
4
Průřez připojení vodiče, pevné jádro, max.
300 mm²
Průřez připojení vodiče, pevné jádro, min.
35 mm²
Průřez připojení vodičů, jemně stáčené, min.
35 mm²
Průřez připojení vodičů, splétané, max.
300 mm²
Průřez připojení vodičů, splétané, min.
35 mm²
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
kcmil 500
Wire connection cross section AWG, min.
AWG 16
Wire connection cross section, finely stranded, max.
300 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
240 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
35 mm²

General

Installation advice
Terminal rail / mounting plate
Mounting rail
TS 35
Number of poles
1
Standards
IEC 60947-7-1
UL 1059
CSA
Wire connection cross section AWG, max.
kcmil 500
Wire connection cross section AWG, min.
AWG 16

Rating data

Расчетное сечение
300 mm²
Tension nominale
1 000 V
Märkspänning AC
1 000 V
Номинальное напряжение пост. тока
1 000 V
정격 전류
520 A
Current at maximum wires
520 A
Standards
IEC 60947-7-1
UL 1059
CSA
Volume resistance according to IEC 60947-7-x
0,06 mΩ
Rated impulse withstand voltage
8 kV

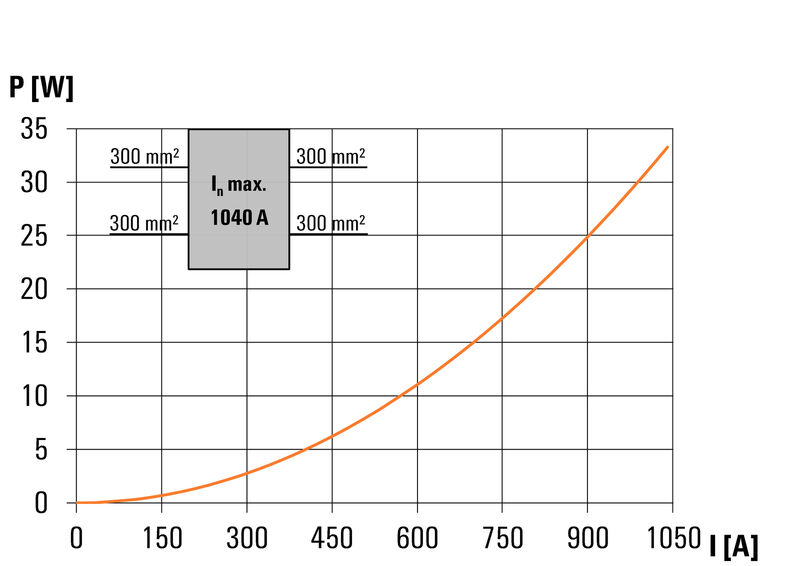

Power loss in accordance with IEC 60947-7-x
16,64 W
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693

Important note

Product information
You will find additional information in the downloadsection of the onlinecatalogue

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-19
ECLASS 15.0
27-25-01-19
