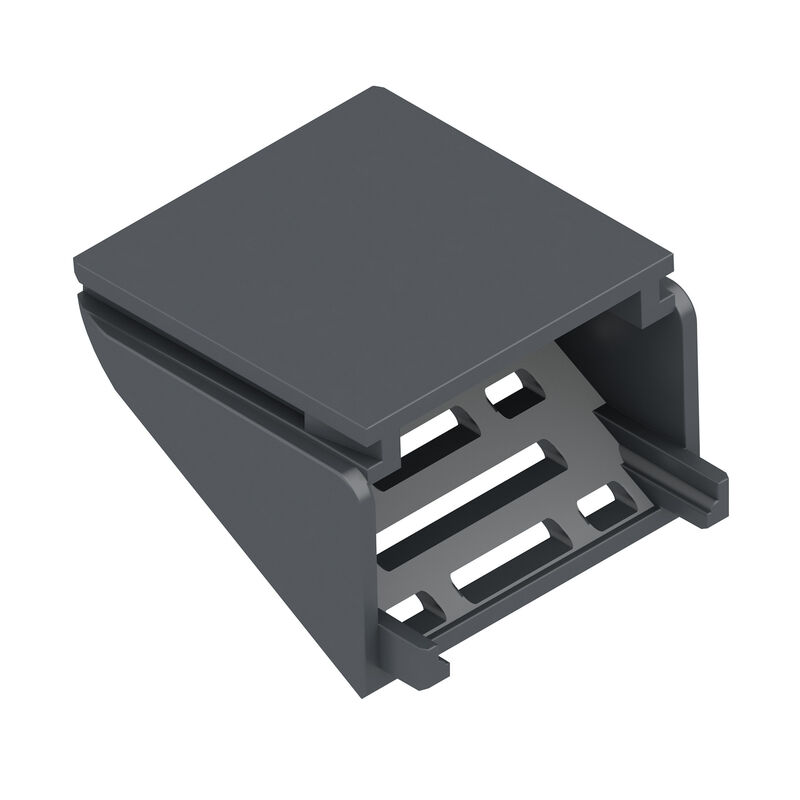

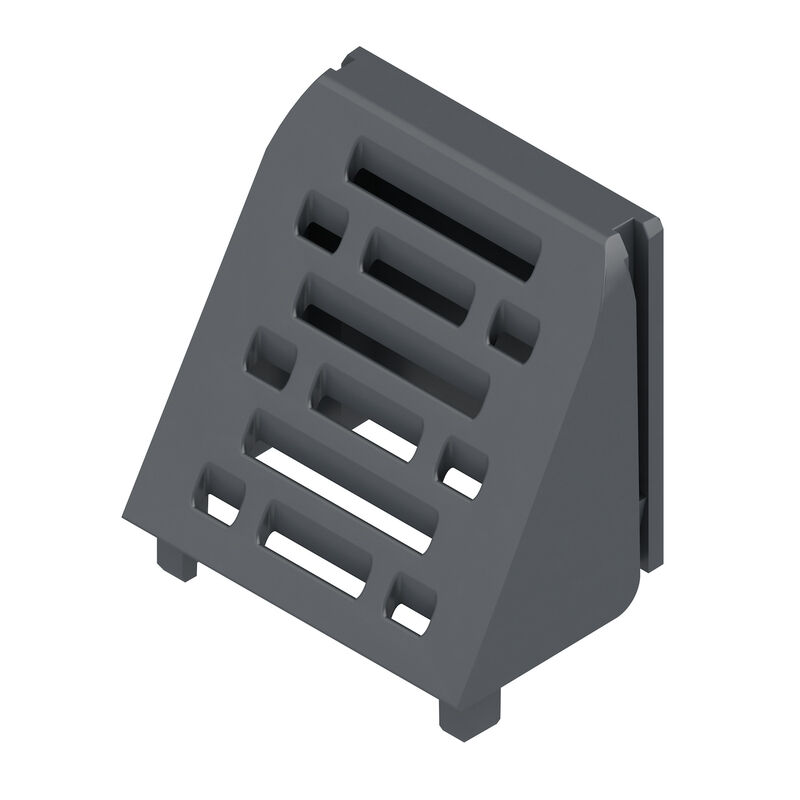

CH20M AD SHL 5.00/04 GGY 2019 — Product image

Lataa tietosivu Samankaltaiset tuotteet

CH20M AD SHL 5.00/04 GGY 2019

Hood, OMNIMATE Housing - series CH20M Graphite grey, Side element cover, Width: 22.5 mm

Tuotteen tunnus 1413740000

Ominaisuudet

General ordering data

Version	Hood, OMNIMATE Housing - series CH20M Graphite grey, Side element cover, Width: 22.5 mm
Order No.	1413740000
Type	CH20M AD SHL 5.00/04 GGY 2019
GTIN (EAN)	4050118241648
Qty.	50 items

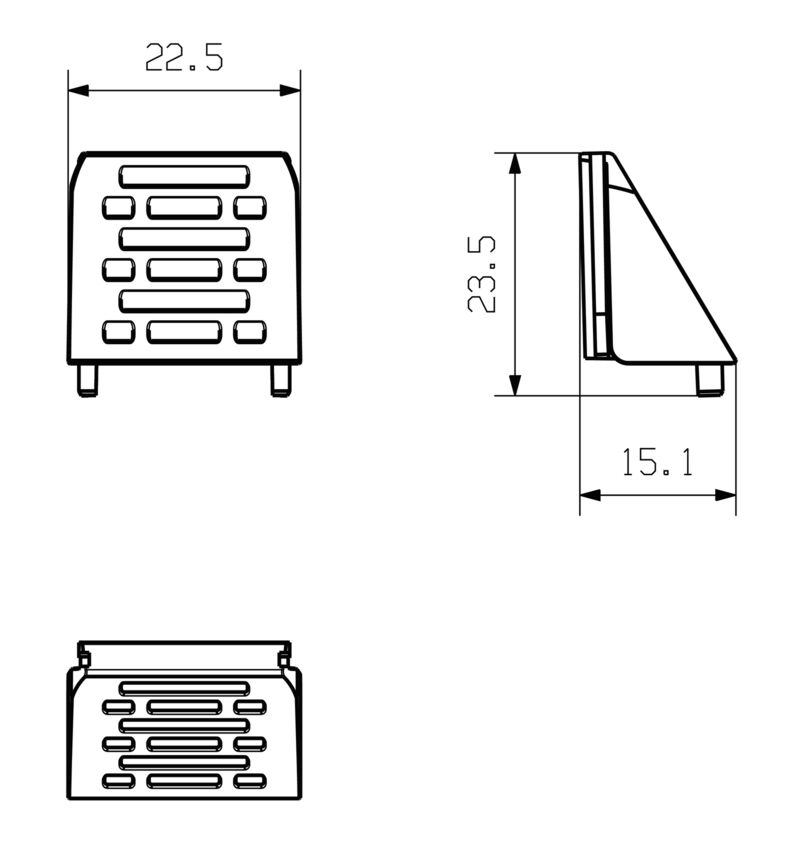

Dimensions and weights

Depth	14,6 mm
Depth (inches)	0,575 inch
Height	23,7 mm
Height (inches)	0,933 inch
Width	22,5 mm
Width (inches)	0,886 inch
Net weight	1,6 g

Temperatures

Operating temperature range	-40 °C...120 °C
Humidity	5 - 93% rel. humidity, Tu = 40°C, no condensation

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Comparative Tracking Index (CTI)	600 ≤ CTI
Insulating material	PA 66 GF 30
Insulating material group	I
Material	Plastic
Surface finish	untreated
UL 94 flammability rating	V-0

General data

Colour	Graphite grey
Colour chart (similar)	RAL 7024
Encapsulation option	No
Protection degree	IP20 in installed state

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212779)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1413740000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 7.0	EC001031
ETIM 8.0	EC001031
ETIM 9.0	EC001031
ECLASS 11.0	27-18-27-92
ECLASS 12.0	27-18-27-92
ECLASS 13.0	27-19-06-05
ECLASS 14.0	27-19-06-05

Approvals

ROHS

Conform
