Ominaisuudet

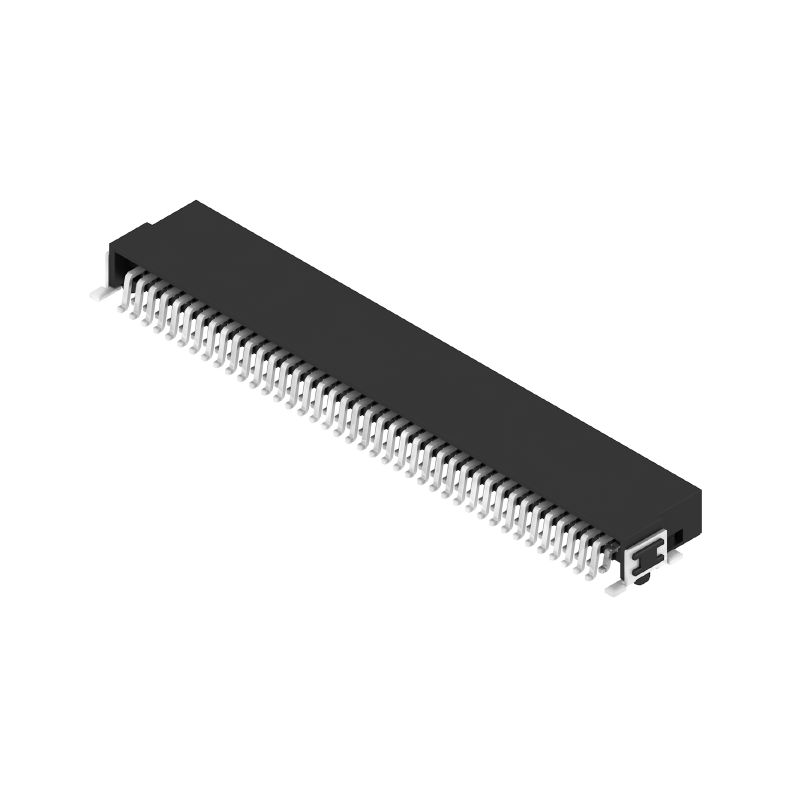

| Version | PCB plug-in connector, male header, SMD solder connection, Pitch in mm (P): 1.27 mm, Number of poles: 80, 90°, Tape |
| Order No. | 2747240000 |
| Type | FMH S1/80H F1 B RL |
| GTIN (EAN) | 4064675000983 |
| Qty. | 560 items |
| Product data |
IEC: / 2.8 A UL: 150 V |
| Packaging | Tape |
| Depth | 10,6 mm |
| Depth (inches) | 0,417 inch |
| Height | 4,25 mm |
| Height (inches) | 0,167 inch |
| Width | 55,88 mm |
| Width (inches) | 2,2 inch |
| Net weight | 5,371 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Product family | OMNIMATE Signal - Board-to-Board |
| Type of connection | Board connection |
| Mounting onto the PCB | SMD solder connection |
| Pitch in mm (P) | 1,27 mm |
| Pitch in inches (P) | 0,05 " |
| Outgoing elbow | 90° |
| Number of poles | 80 |
| Number of solder pins per pole | 1 |
| Coplanarity: | 0,1 mm |
| Number of rows | 1 |
| Pin series quantity | 2 |
| Protection degree | IP20 |
| Volume resistance | <25 mΩ |
| Plugging cycles | 500 |
| Plugging force/pole, max. | 0,6 N |
| Pulling force/pole, max. | 0,6 N |
| Insulating material | LCP |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Insulating material group | IIIa |
| Insulation strength | ≥ 10¹⁰ Ω |
| Moisture Level (MSL) | 1 |
| UL 94 flammability rating | V-0 |
| Contact base material | Copper alloy |
| Contact material | Cu-alloy |
| Contact surface | Gold over nickel |
| Layer structure of plug contact | ≥ 2 µm Ni / ≥ 0.4 µm PdNi / ≥ 0.05 µm Au |
| Storage temperature, min. | −40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | −55 °C |
| Operating temperature, max. | 125 °C |
| Rated current, min. number of poles (Tu=20°C) | 2,8 A |
| Clearance, min. | 0,4 mm |
| Creepage distance, min. | 0,4 mm |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Rated voltage (UL 1977) (obsolete) | 150 V |
| Packaging | Tape |
| VPE length | 350 mm |
| VPE width | 345 mm |
| VPE height | 135 mm |
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224293) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2747240000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
| ETIM 8.0 | EC002637 |
| ETIM 9.0 | EC002637 |
| ECLASS 9.0 | 27-44-04-02 |
| ECLASS 9.1 | 27-44-04-02 |
| ECLASS 10.0 | 27-44-04-02 |
| ECLASS 11.0 | 27-46-02-01 |
| ECLASS 12.0 | 27-46-02-01 |
| ECLASS 13.0 | 27-46-02-01 |
| ECLASS 14.0 | 27-46-02-01 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E92202 |
