Ominaisuudet

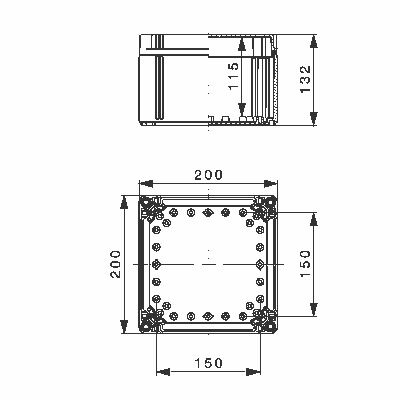

| Version | FPC (polycarbonate empty enclosure), Empty enclosure, Height: 200 mm, Width: 200 mm, Depth: 132 mm, Material: Polycarbonate, untreated, Light Grey, Transparent |
| Order No. | 9535680000 |
| Type | FPC 20/20/13 TRSP |
| GTIN (EAN) | 4032248009794 |
| Qty. | 1 items |
| Depth | 132 mm |
| Depth (inches) | 5,197 inch |
| Height | 200 mm |
| Height (inches) | 7,874 inch |
| Width | 200 mm |
| Width (inches) | 7,874 inch |
| Net weight | 1 221 g |
| Operating temperature | -50 °C...130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| M12 | 20 |
| M16 | 11 |
| M20 | 6 |
| M25 | 4 |
| M32 | 2 |
| M40 | 1 |
| M50 | 1 |
| M63 | 1 |
| M12 | 20 |
| M16 | 11 |
| M20 | 6 |
| M25 | 4 |
| M32 | 2 |
| M40 | 1 |
| M50 | 1 |
| M63 | 1 |
| Declaration of Conformatiy No. (DoC LVD) | DE PS2420 220224 003ISS00 |
| Access opening: height | 196,5 mm |
| Access opening: width | 196,5 mm |
| Areas of use |
Building systems and technology
Transportation Packaging industry Machine construction |
| Enclosure attachment | Holes 7.5 mm |
| Flange plate | No |
| Impact resistance | IK08 |
| Integral fixing | thanks to self-tapping screws |
| Lid | Yes |
| Lid attachment | 4 polyamide crosshead screws |
| Material | Polycarbonate |
| Material thickness | 3,5 mm |
| Number of lid screws | 4 |
| Operating temperature, max. | 130 °C |
| Operating temperature, min. | −50 °C |
| Protection degree |
IP66
IP67 |
| Seal material | Polyurethane |
| Surface finish | untreated |
| Torque for lid screws | 0,8 Nm |
| WDU 10 / ZDU 10 | 1x8 |
| WDU 16 / ZDU 16 | 1x7 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 1x17 |
| WDU 35 / ZDU 35 | 1x5 |
| WDU 4 / ZDU 4 | 1x14 |
| WDU 6 / ZDU 6 | 1x10 |
| WDU 10 / ZDU 10 | 1x8 |
| WDU 16 / ZDU 16 | 1x7 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 1x17 |
| WDU 35 / ZDU 35 | 1x5 |
| WDU 4 / ZDU 4 | 1x14 |
| WDU 6 / ZDU 6 | 1x10 |
| Approval/Certificate/Document of Conformity | [DoC Declaration of Conformity LVD - FPC Empty Enclosures - DE PS2420 220224 003ISS00](https://mdcop.weidmueller.com/mediadelivery/asset/900_320145) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_76941) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9535680000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9535680000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000261 |
| ETIM 7.0 | EC000261 |
| ETIM 8.0 | EC000261 |
| ETIM 9.0 | EC000261 |
| ECLASS 9.0 | 27-18-01-01 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-01-01 |
| ECLASS 11.0 | 27-18-01-01 |
| ECLASS 12.0 | 27-18-01-01 |
| ECLASS 13.0 | 27-18-01-01 |
| ECLASS 14.0 | 27-18-01-01 |
| ROHS | Conform |
