KLIPPON STB 3 SS

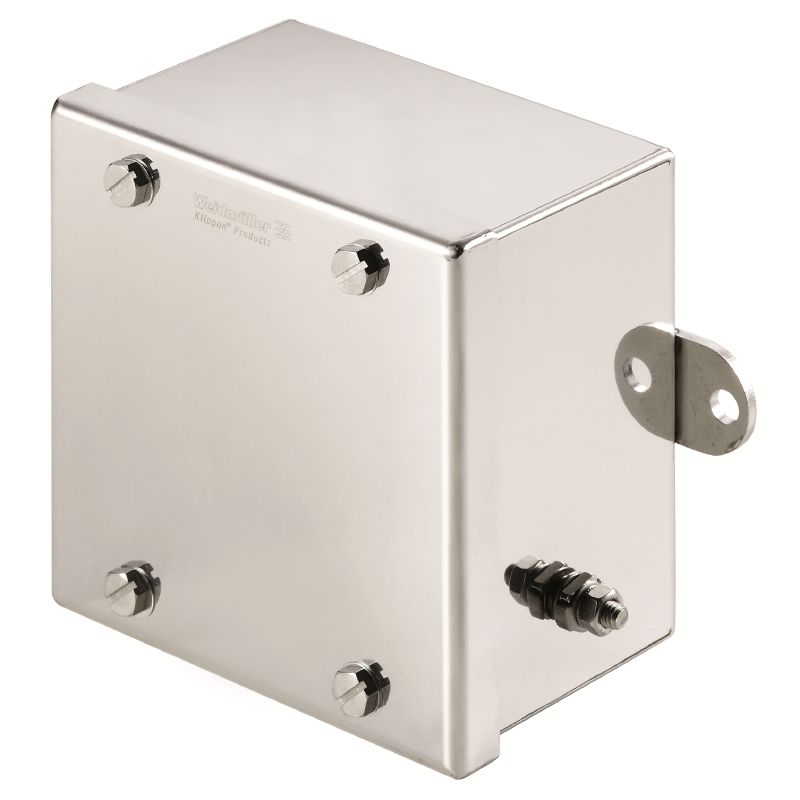

Similar to illustration
KLIPPON STB 3 SS
Dimensioned drawing

KLIPPON STB 3 SS

Klippon STB (Small Terminal Box), Пустой корпус, Корпус из нержавеющей стали, Высота: 190 mm, Ширина: 190 mm, Глубина: 100 mm, Основной материал: Нержавеющая сталь 1.4404 (316 L), полировка до зеркального блеска, серебряный

Ürün No. 1002720000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 6 İlgili ürünler 16
승인 General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable glands, left Verschraubungen rechts Collegamenti a vite in alto / in basso Certificate numbers enclosure General information Housing earth vertical assembly Important note Classifications

승인

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a6deaf49-74c9-4c46-950e-b505cc20e574/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/9c9311f3-ecc1-4734-91a1-2f3495436c72/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E256877

General ordering data

Version
Klippon STB (Small Terminal Box), Пустой корпус, Корпус из нержавеющей стали, Высота: 190 mm, Ширина: 190 mm, Глубина: 100 mm, Основной материал: Нержавеющая сталь 1.4404 (316 L), полировка до зеркального блеска, серебряный
Order No.
1002720000
Type
KLIPPON STB 3 SS
GTIN (EAN)
4032248695652
Qty.
1 adet

Dimensions and weights

Depth
100 mm
Глубина (дюймов)
3,937 inch
Height
190 mm
Height (inches)
7,48 inch
Width
190 mm
Width (inches)
7,48 inch
Mounting dimension - width
215 mm
Net weight
2.433 g

Temperatures

Operating temperature
-60 °C...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable glands, left

M12
21
M16
15
M20
10
M25
8
M32
3
M40
3
M50
2
M63
1

Verschraubungen rechts

M12
21
M16
15
M20
8
M25
6
M32
3
M40
2
M50
1

Collegamenti a vite in alto / in basso

M12
21
M16
15
M20
10
M25
8
M32
3
M40
3
M50
2
M63
1

Certificate numbers enclosure

Approval conditions
ATEX
DNV
CCC
IECEX
INMETRO
LR
RMRS
UL AEx Class Div.
UL AEx Class Zone
cULus
KC
Attestation of Conformatiy No. (AoC)
DE PS2620 160308 001ISS04
Certificate No. (ATEX)
IBEXU07ATEX1147U
Certificate no. (cULus)
E256877
Certificate No. (DNV)
TAE00003ZT
Certificate No. (IECEX)
IECEXIBE09.0019
Certificate no. (INMETRO)
IEX13.0003
Certificate No. (LLOYDSREG)
LR23307703TA
Certificate no. empty enclosure (ATEX)
IBExU 07ATEX1147U
Certificate no. empty enclosure (IECEx)
IECEx IBE 09.0018U
Certificate no. empty enclosure (INMETRO)
LMP 21.0015U
Certificate no. Terminal Box (AEx)
E223792
Certificate no. Terminal Box (ATEX)
IBExU07ATEX1148
Certificate no. Terminal Box (IECEx)
IECEx IBE 09.0019
Certificate no. Terminal Box (INMETRO)
LMP 21.0018
Certificate no. Terminal Box (KOSHA)
16-AV4BO-0247X
Declaration of Conformatiy No. (DoC LVD)
DE PS2620 160412 001ISS02

General information

Access opening: height
170 mm
Access opening: width
172 mm
Areas of use
Explosive risk zone
Packaging industry
Transportation
Process industry
Marine engineering
Enclosure attachment
Welded-on mounting foot with 8-mm holes
Fijación de la tapa
M5 hexagonal screw with slot and 10mm distance across flats
Flange plate
No
Grado di protezione
IP66
Komponentfastsättning
TAS 20 rail welded to floor
Lid
Yes
Material thickness of cover
1,5 mm
Material thickness of enclosure
1,5 mm
Number of lid screws
4
Operating temperature, min.
-60 °C
Protection class (UL)
Type 4
Type 4X
Provozní teplota, max.
100 °C
Surface finish
Mirror polished
Torque for lid screws
2,5 Nm
Ütésállóság
10 J standard változat
7 J ATEX verzió
기본 재질
Nemesacél 1.4404 (316 L)
실링 자재
실리콘

Housing earth

Cross-section , max.
25 mm²
Earth, enclosure, cover
Welded-on M6 x 10 stainless-steel earth stud
Earth, enclosure, external
Welded-on M6 x 16 stainless-steel bolts
Earth, enclosure, internal
Welded-on M6 x 16 stainless-steel bolts

vertical assembly

WDU 10 / ZDU 10
1x15
WDU 16 / ZDU 16
1x13
WDU 2,5 / ZDU 2,5 / IDU 2,5
1x30
WDU 4 / ZDU 4
1x25
WDU 6 / ZDU 6
1x20

Important note

Product information
The ambient temperature for the assembly will be reduced to +60°C and the surface temperature to +100°C.

Classifications

ETIM 8.0
EC002503
ETIM 9.0
EC002503
ETIM 10.0
EC002503
ECLASS 14.0
27-18-05-02
ECLASS 15.0
27-18-05-02
