Ominaisuudet

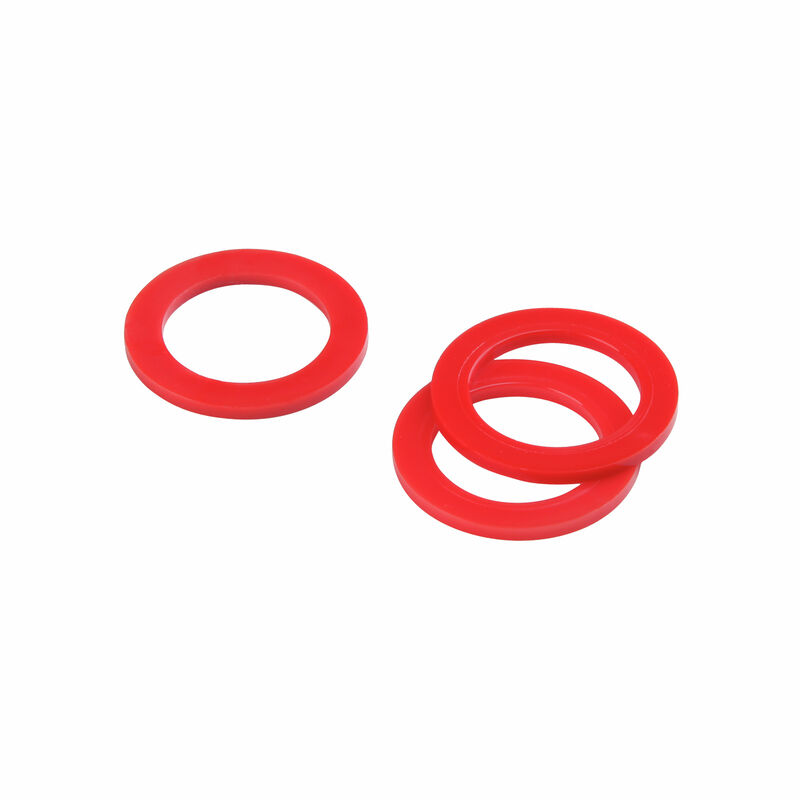

| Version | KSWN (flat gasket - nylon), Sealing ring, M 20, Nylon 6 |
| Order No. | 0930730002 |
| Type | KSWN M20 |
| GTIN (EAN) | 4032248849802 |
| Qty. | 25 items |
| Height | 2 mm |
| Height (inches) | 0,079 inch |
| Net weight | 0,76 g |
| Operating temperature | -40 °C...135 °C |
| Cable glands | M 20 |
| Diameter of sealing ring | 29,4 mm |
| External thread | M 20 |
| Internal thread | M 20 |
| Material | Nylon 6 |
| Number of wires | 1 |
| Operating temperature range, max. | 135 °C |
| Operating temperature range, min. | −40 °C |
| Pitch of thread | 1,5 mm |
| Silicone | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59277) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0930730002) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0930730002) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0930730002&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001181 |
| ETIM 7.0 | EC001181 |
| ETIM 8.0 | EC001181 |
| ETIM 9.0 | EC001181 |
| ECLASS 9.0 | 27-43-03-19 |
| ECLASS 9.1 | 27-14-44-90 |
| ECLASS 10.0 | 27-43-03-19 |
| ECLASS 11.0 | 27-43-03-19 |
| ECLASS 12.0 | 27-43-03-19 |
| ECLASS 13.0 | 27-43-03-19 |
| ROHS | Conform |
On lisävaruste
-
Tuotteen tunnus:1772220000VPE:50 items
VG MS (standard brass cable gland), Cable glands, straight, M 20, 8 mm, OD min. 6 - OD max. 12 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K, Brass, nickel-plated
-
Tuotteen tunnus:1009860000VPE:50 items
VG S (standard stainless steel cable gland), Cable glands, straight, M 20, 8 mm, OD min. 6 - OD max. 12 mm, Stainless steel 1.4305 (303)
-
Tuotteen tunnus:1778450000VPE:50 items
VG MS ZE (standard brass cable gland strain relief), Cable glands, straight, M 20, 6 mm, OD min. 6.5 - OD max. 12.5 mm, IP65, Brass, nickel-plated
-
Tuotteen tunnus:1778460000VPE:50 items
VG MS ZE (standard brass cable gland strain relief), Cable glands, straight, M 20, 6 mm, OD min. 6.5 - OD max. 12.5 mm, IP65, Brass, nickel-plated
