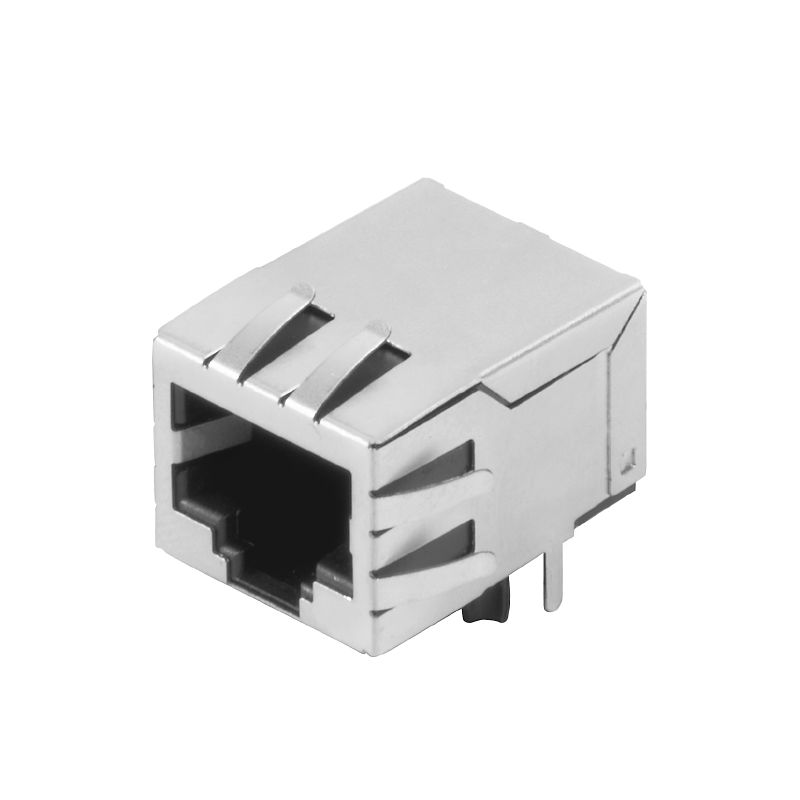

OMNIMATE Data - RJ45 transformer jack, PCB plug-in connector, THT solder connection, 90°, bottom, No, Plugging cycles: 750, Number of poles: 10, PA 66, Tray (manual assembly)

Ürün No. 2661690000
Veri sayfasını indir Engineering Support Product Downloads
Karşı parçalar 20 İlgili ürünler 3
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Electrical properties Standards Material data Packing Classifications

Approvals

ROHS
Conform

General ordering data

Version
OMNIMATE Data - RJ45 transformer jack, PCB plug-in connector, THT solder connection, 90°, bottom, No, Plugging cycles: 750, Number of poles: 10, PA 66, Tray (manual assembly)
Order No.
2661690000
Type
RJ45MP T1D 3.3E4N TY
GTIN (EAN)
4050118675146
Qty.
120 adet
Packaging
Tray (manual assembly)

Dimensions and weights

Net weight
7,128 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

LED
No
Mounting onto the PCB
THT solder connection
Number of poles
10
Outgoing elbow
90°
Performance-Category
100 MBit/s, POE
Pitch in inches (P)
0,05 "
Pitch in mm (P)
1,27 mm
Plugging cycles
750
Product family
OMNIMATE Data - RJ45 transformer jack
Protection degree
IP20
Shielding
Yes
Side termination, characteristic
Solder flange
Solder pin dimensions
Octagonal
Solder pin length (l)
3,3 mm
Soldering process
Manual soldering
Wave soldering
Tolerance of solder pin position
± 0.15 mm
Transmission rate
100 MBit/s, POE
Type of connection
Solder connection
Varianta se západkou
bottom

Electrical properties

Dielectric strength, contact / contact
1000 V DC
Névleges feszültség
57 V
Resistencia a tensiones eléctricas, contacto/apantallado
1500 V DC
Szigetelési ellenállás
≥ 500 MΩ

Standards

Connettori a norma
IEC 60603-7

Material data

Insulating material
PA 66
Colour
black
Colour chart (similar)
RAL 9011
Insulation resistance
≥ 500 MΩ
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
Gold over nickel
Storage temperature, min.
-40 °C
Storage temperature, max.
85 °C
Operating temperature, min.
-40 °C
Operating temperature, max.
85 °C

Packing

Packaging
Tray (manual assembly)
VPE length
322 mm
VPE width
191 mm
VPE height
70 mm

Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
