SAIL-M12GM12G-S3-3.5P
SAIL-M12GM12G-S3-3.5P
Dimensioned drawing
SAIL-M12GM12G-S3-3.5P
Dimensioned drawing
SAIL-M12GM12G-S3-3.5P
Pole scheme
SAIL-M12GM12G-S3-3.5P
Pole scheme
SAIL-M12GM12G-S3-3.5P
Wiring diagram
SAIL-M12GM12G-S3-3.5P
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12GM12G-S3-3.5P

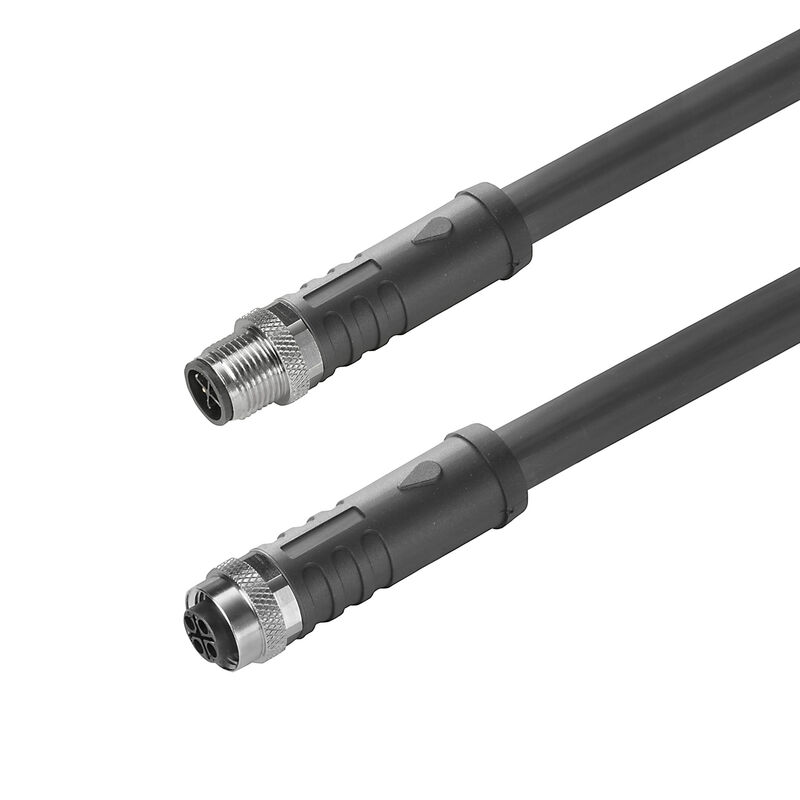

Power cable, Connecting line, M12 / M12, Number of poles : 3 (2 + PE), 3.5 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Tuotteen tunnus 2050060350
Lataa tietosivu
Samankaltaiset tuotteet 18
Approvals General ordering data Dimensions and weights Environmental Product Compliance 케이블의 기술 사양 일반 기술 데이터 Electrical properties General standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N.º de certificado (cULus)
E310075

General ordering data

Version
Power cable, Connecting line, M12 / M12, Number of poles : 3 (2 + PE), 3.5 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
N. d’ordine
2050060350
Type
SAIL-M12GM12G-S3-3.5P
GTIN (EAN)
4050118661194
Qty.
1 items

Dimensions and weights

Net weight
348 g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

케이블의 기술 사양

Acceleration
5 m/s²
Außendurchmesser
8.5 mm ± 0.3 mm
Bending cycles
10 Mio
Bending radius, min., moving
7.5 x cable diameter
Bending radius, min., stationary
4 x cable diameter
Cable length
3,5 m
Colour coding
blue
brown
Green/yellow
Core cross-section
1,5 mm²
Halogen
No
Insulation
PP
Konfigurovatelná délka kabelu
No
PE function
Yes
Polzahl
3 (2 + PE)
Rychlost
5 m/s
Schweißperlenfest
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Suitable for cable carriers
Yes
Temperaturbereich, bewegt
-40...80 °C
Temperaturbereich, fest verlegt
-50...80 °C
Vnější potah v souladu se stylem UL AWM
20234 (80 °C / 1000 V)
Welding spark resistance
No
Zesítěné vyzařování
No

일반 기술 데이터

IP67
스크류된 경우
AF size
13 mm
Coding
S-coded
Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
LED
No
Nominal current
12 A
Nominal voltage
600 V
Plugging cycles
≥ 100
Pollution severity
3
Temperature range of housing
-40 … +85 ° C
Tightening torque
M12: 1.0 Nm
Version
pin, straight - socket, straight

Electrical properties

Isolationswiderstand
108 Ω
Nominal voltage
600 V

General standards

Certificate no. (cULus)
E310075

Plug, left

Clavija de conexión izquierda
M12, S-coded, IP67, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M12, S-coded, IP67, female contact, straight, Plastic, unshielded

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
