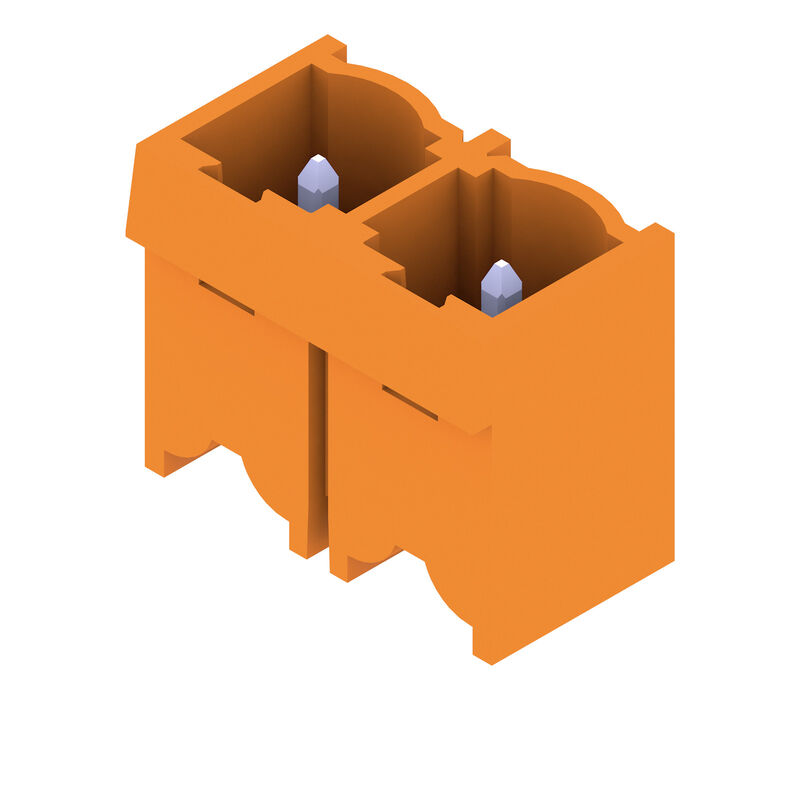

SL 7.62HP/02/180G 3.2SN OR BX
Product image

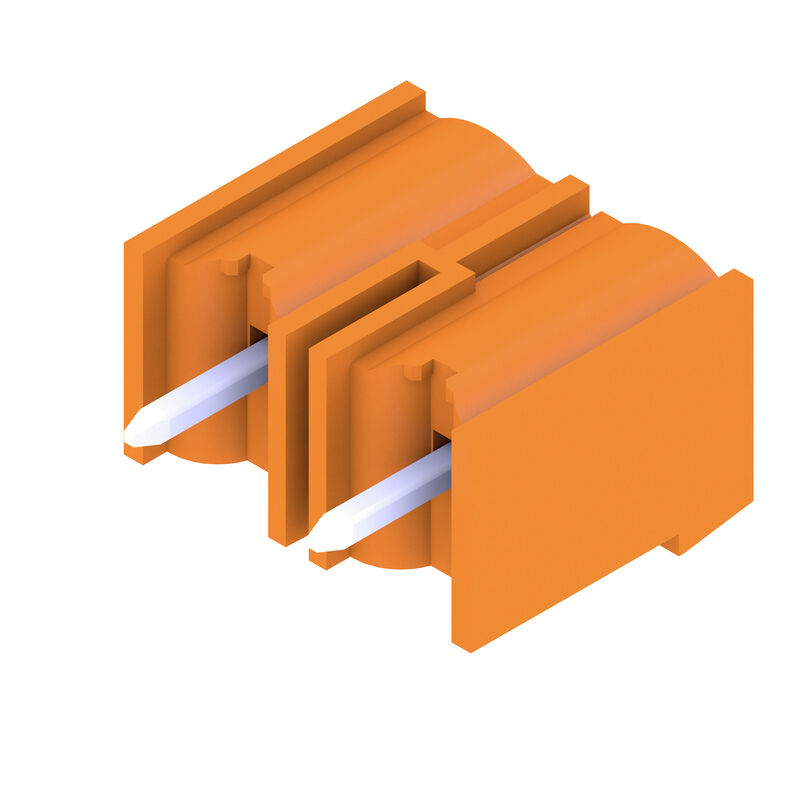

SL 7.62HP/02/180G 3.2SN OR BX
Product image
SL 7.62HP/02/180G 3.2SN OR BX
Dimensional drawing

SL 7.62HP/02/180G 3.2SN OR BX

PCB plug-in connector, male header, closed side, THT solder connection, 7.62 mm, Number of poles: 2, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Box

Produkt ID 1048870000
Download datablad Engineering-support Produktdownloads
Tilbehør 2 Er et modstykke til 4 Anvendte produkter 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

버전
PCB plug-in connector, male header, closed side, THT solder connection, 7.62 mm, Number of poles: 2, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Box
Order No.
1048870000
유형
SL 7.62HP/02/180G 3.2SN OR BX
GTIN (EAN)
4032248786848
Qty.
100 Styk
Product data
IEC: 630 V / 29 A
UL: 300 V / 20 A
Packaging
Box

Dimensions and weights

깊이
8,4 mm
Depth (inches)
0,331 inch
Height
15 mm
Height (inches)
0,591 inch
Height of lowest version
11,8 mm
너비
14,42 mm
Width (inches)
0,568 inch
Net weight
0,977 g

Temperatures

Continuous operating temp., min.
-25 °C
Continuous operating temp., max.
100 °C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0,010 kg CO2 eq.

System specifications

Product family
OMNIMATE Power - series BL/SL 7.62HP
Type of connection
Board connection
Montaje sobre placas c.i.
THT solder connection
Paso en mm (P)
7,62 mm
Pitch in inches (P)
0,3 "
Outgoing elbow
180°
Number of poles
2
Number of solder pins per pole
1
Solder pin length (l)
3,2 mm
Forrasztótüske méretei
1.0 x 1.0 mm
Forrasztótüske méretei=d Tűrés
+0,01 / -0,03 mm
Solder eyelet hole diameter (D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
7,62 mm
L1 in inches
0,3 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch, plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged
Protection degree
IP10
Can be coded
Yes
Plugging cycles
25

Material data

Insulating material
PBT
Colour
orange
Colour chart (similar)
RAL 2000
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 200
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
Layer structure of plug contact
1...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
29 A
Rated current, max. number of poles (Tu=20°C)
26 A
Rated current, min. number of poles (Tu=40°C)
25 A
Rated current, max. number of poles (Tu=40°C)
21 A
Rated voltage for surge voltage class / pollution degree II/2
630 V
Rated voltage for surge voltage class / pollution degree III/2
500 V
Rated voltage for surge voltage class / pollution degree III/3
400 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
6 kV
Short-time withstand current resistance
3 x 1s with 180 A
Clearance, min.
6,5 mm
Creepage distance, min.
8,1 mm

Rated data acc. to CSA

Jmenovité napětí (aplikační skupina B / CSA)
300 V
Jmenovité napětí (aplikační skupina C / CSA)
300 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group B / CSA)
20 A
Rated current (Use group C / CSA)
20 A
Courant nominal (groupe d'utilisation D / CSA)
5 A

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Névleges feszültség (C felhasználási csoport / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
600 V
Rated current (Use group B / UL 1059)
20 A
Névleges áram (C felhasználási csoport/ UL 1059)
20 A
Corrente nominale (Gruppo D / UL 1059)
5 A
Clearance distance, min.
6,5 mm
Creepage distance, min.
11,2 mm
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
Longitud de VPE
166 mm
Šířka VPE
69 mm
Výška VPE
43 mm

Important note

IPC 标准的符合性
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Hänvisningstext
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
