ACT20D-LED-FI-AO-2RC-AC-DC

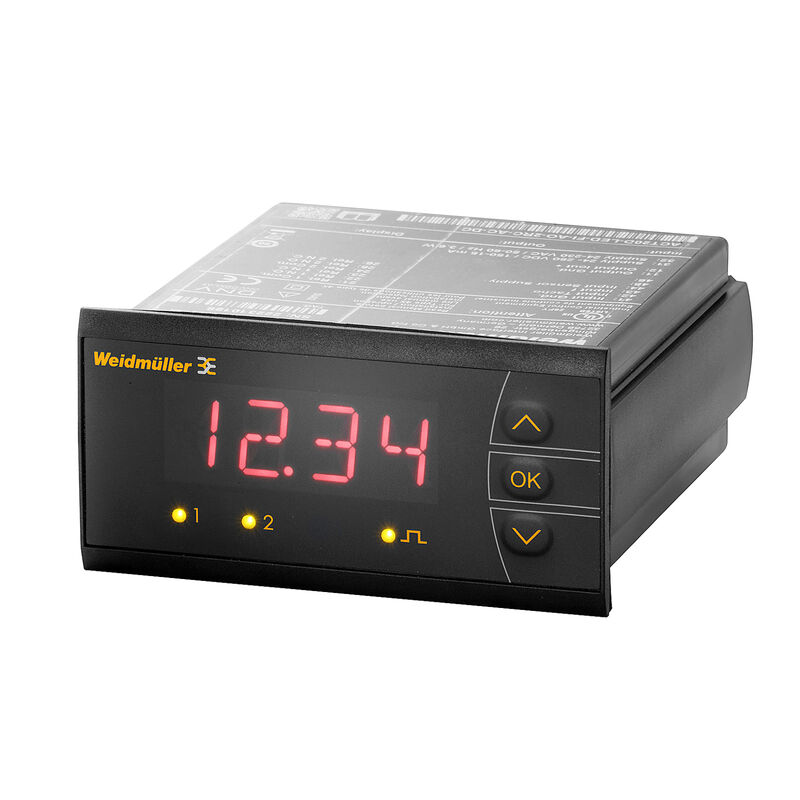

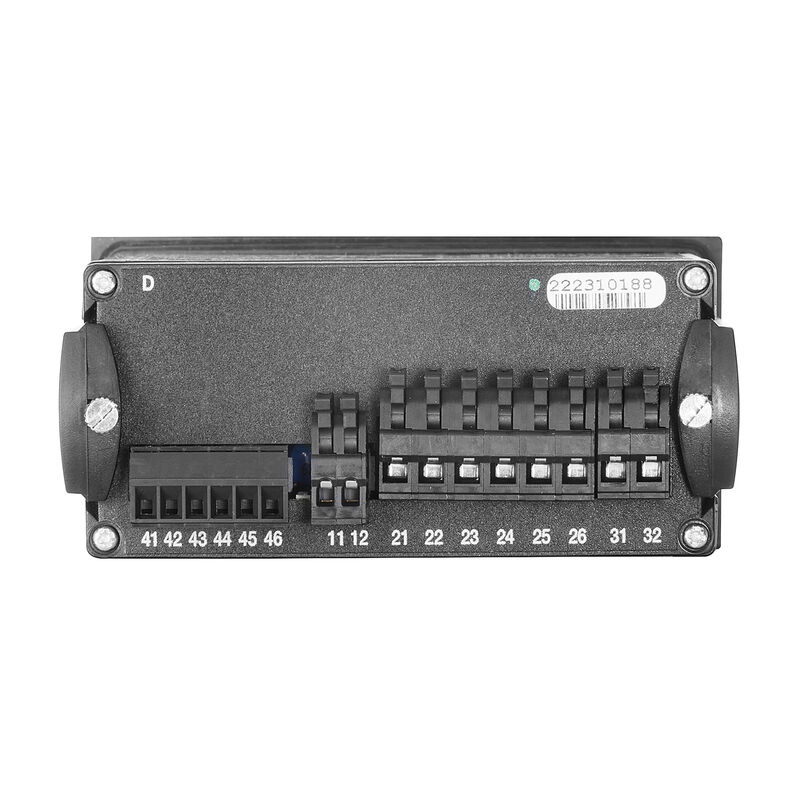

Product image
ACT20D-LED-FI-AO-2RC-AC-DC
ACT20D-LED-FI-AO-2RC-AC-DC

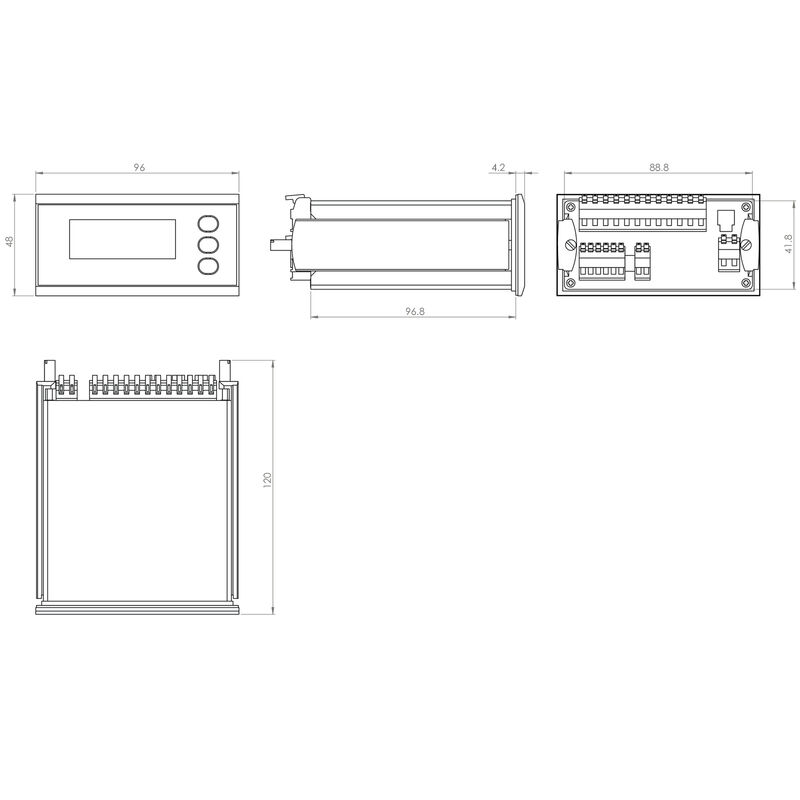

Dimensioned drawing
ACT20D-LED-FI-AO-2RC-AC-DC

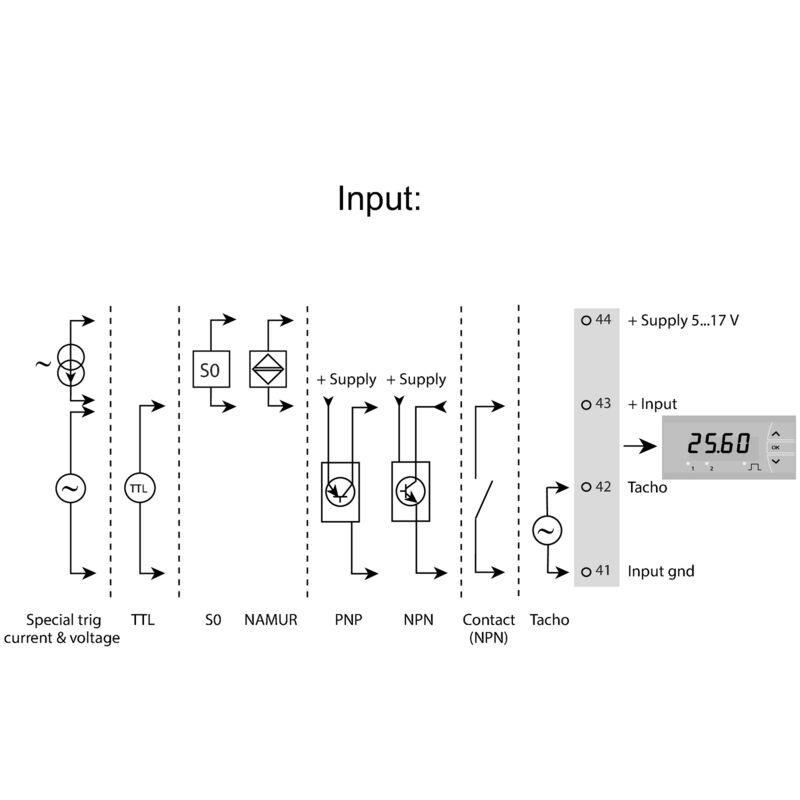

Wiring diagram
ACT20D-LED-FI-AO-2RC-AC-DC

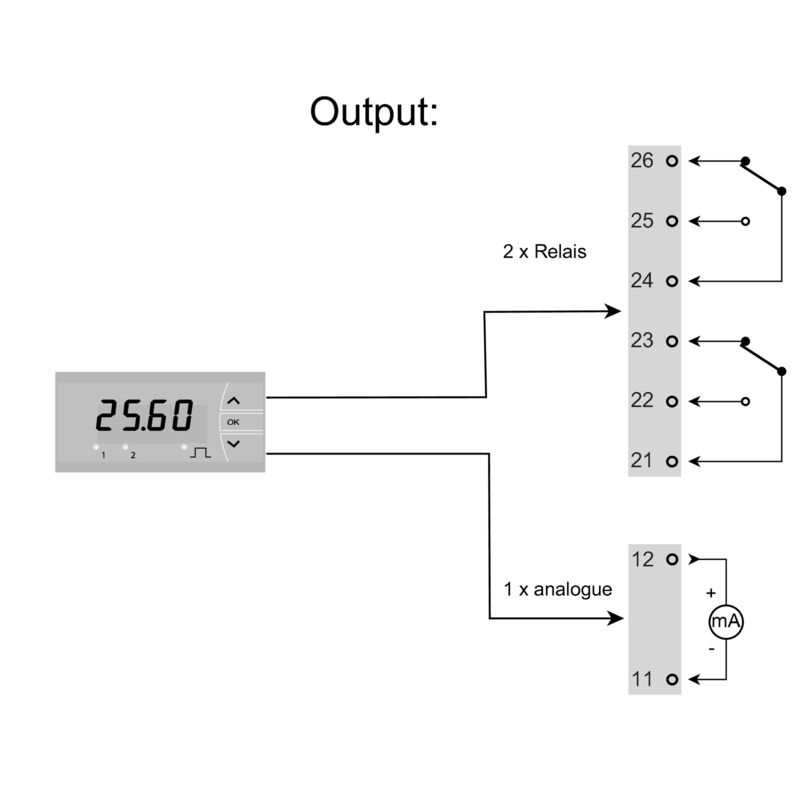

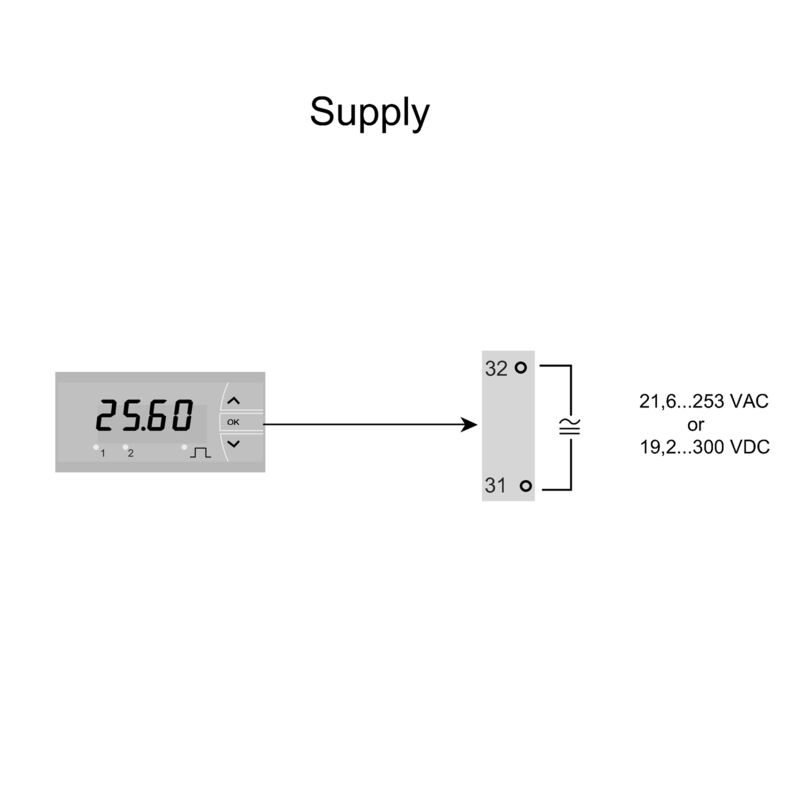

Wiring diagram
ACT20D-LED-FI-AO-2RC-AC-DC
ACT20D-LED-FI-AO-2RC-AC-DC

ACT20D-LED-FI-AO-2RC-AC-DC

Display, Input : Frequency, Output : Display, analogue V / mA

Produkt ID 2920070000
Download datablad Engineering Support Produkt Downloads
Tilbehør 1 Anvendte produkter 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Display General data Input Output (digital) Output (analogue) Insulation coordination Connection data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Display, Input : Frequency, Output : Display, analogue V / mA
Order No.
2920070000
Type
ACT20D-LED-FI-AO-2RC-AC-DC
GTIN (EAN)
4099986580367
Qty.
1 Styk

Dimensions and weights

Depth
120 mm
Depth (inches)
4,724 inch
Height
48,8 mm
Height (inches)
1,921 inch
Width
96,6 mm
Width (inches)
3,803 inch
Net weight
295 g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
f4905d12-f516-4eb5-90a8-8c87685bc956

Display

Cycle time
2.2 times / s
Decimal point
configurable
9.999
99.99
999.9
9999
Dimmable
Yes
Display range
-1999...9999
Display value
current measured value
Percentage or real value display
Switching status
Format
14 segment (numbers + letters)
Scrolling text in 8 languages in case of error (e.g. sensor wire breakage, input overrange…)
Scaling
Variable
Type
red LED
4-character display
Digit size: 13.8 mm

General data

Accuracy
absolute accuracy: <±0.1 % of the measurement range
Configuration
Front push-button
DIN Rail compatibility
No
Power consumption
≤ 3.5 W
Protection degree
IP65
Supply voltage
21.6...253 VAC, (50...60 Hz) or 19.2...300 VDC
Temperature coefficient
≤0,01% of measurement range⁄°C
Type of connection
Tension clamp connection with actuator
Type of mounting
Frontpanel mounting
Front mounting

Input

Input frequency
0.001…50 kHz
Min. pulse duration (reset input)
20 μs...999,9 s
Number inputs
1
Response time
≤ 1 Period + 100 ms
Sensor
S0 (trig-level low: ≤2.2 mA high: ≥9.0 mA )
Special current (trig-level: user-defined)
Special voltage (trig-level: user-defined)
TTL (trig-level low: ≤0.8 V high: ≥2.0 V)
Tacho (trig-level low: ≤-50 mV high: ≥+50 mV)
NAMUR sensor, according to EN60947-5-6
NPN / PNP transistor (trig-level low: ≤4 V high: ≥7 V )
Trigger level adjustable
Switch
Sensor supply
5…17 V
Type
Adjustable frequencies

Output (digital)

Alarm function
Over / under frequency
Overspeed / underspeed
Holding function can be activated
Gränsvärden
All values in display range are configurable
Hiszterézis
0...100 %
Intens. de conexión nominal
2 A
Kapcsolási kapacitás
500 VA
Kikapcsolási késleltetés
0...3600 s
Max. kapcsolási feszültség, AC
250 V
Max. kapcsolási feszültség, DC
30 V
Rated switching voltage
24 V AC ... 250 V AC
Ritardo all'inserzione
0...3600 s
Sorties digitales
2
Típus
2 x 1 CO contact (hard gold-plated)
Тип функции коммутатора
direct or inverted

Output (analogue)

Anzahl analoge Ausgänge
1
Chování výstupu při zvýšení rozsahu poruchy
23 mA
Load resistance current
≤ 800 Ω
Output behaviour on failure downscale
3,5 mA
Signal output
direct or inverted
Type (analogue output)
'active','connected control must be passive'

Insulation coordination

EMC standards
EN 61326-1
Galvanic isolation
between input ⁄ output ⁄ supply ⁄ relay
Insulation voltage
2.3 kVAC (Test) / 250 VAC (operating state)
Pollution severity
2
Surge voltage category
II

Connection data

Wire connection method
Clamping yoke
pluggable
Type of connection
Tension clamp connection with actuator
Wire connection cross section AWG, min.
AWG 30
Wire connection cross section AWG, max.
AWG 16
Wire connection cross section, finely stranded, min.
0,13 mm²
Wire connection cross section, finely stranded, max.
2,8 mm²

Classifications

ETIM 8.0
EC000677
ETIM 9.0
EC000677
ETIM 10.0
EC000677
ECLASS 14.0
27-14-31-10
ECLASS 15.0
27-14-31-10
