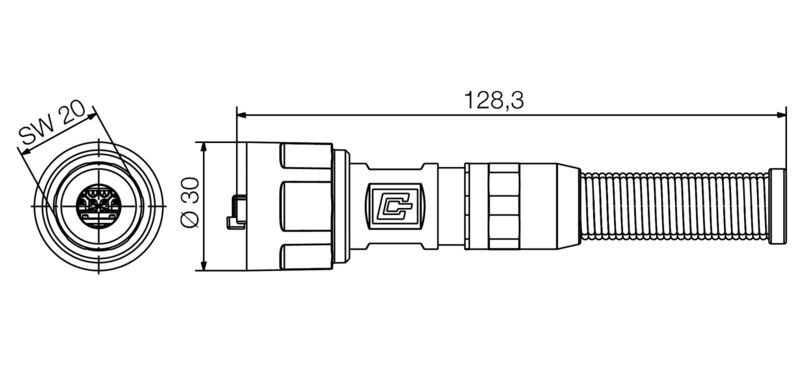

Dimensioned drawing

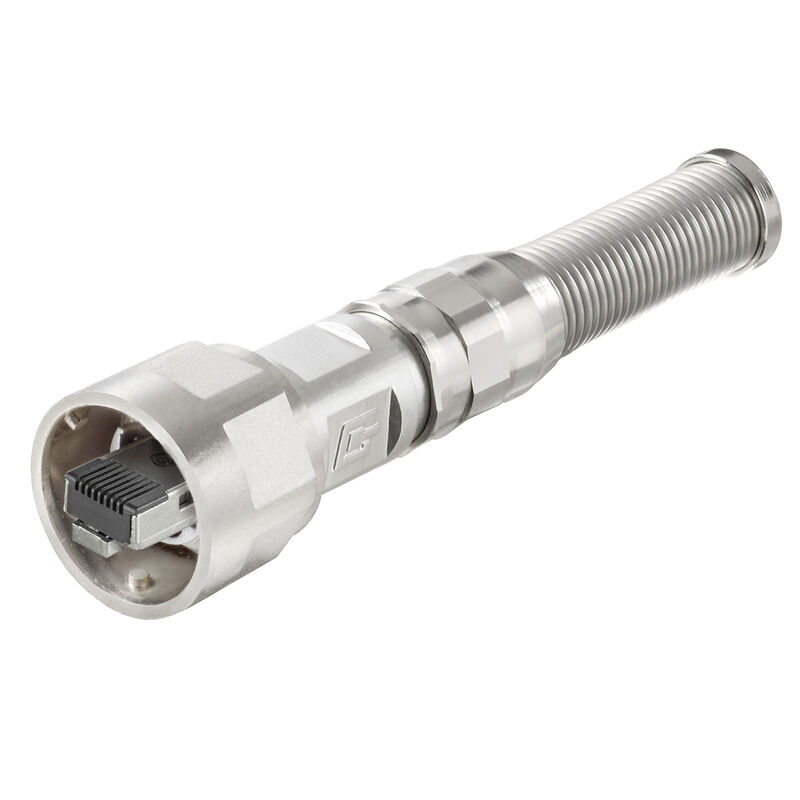

IE-PS-V01M-RJ45-FH-BP

RJ45 plug, no tools required, Variant 1 metal, with kink prevention, Cat.6A / Class EA (ISO/IEC 11801 2010)

Tuotteen tunnus 1963130000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 3 On vastine kohteelle 2 Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Electrical properties General standards Classifications

Approvals

Schválení
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Č. osvědčení (cULus)
E316369

General ordering data

Version
RJ45 plug, no tools required, Variant 1 metal, with kink prevention, Cat.6A / Class EA (ISO/IEC 11801 2010)
Order No.
1963130000
Type
IE-PS-V01M-RJ45-FH-BP
GTIN (EAN)
4032248651634
Qty.
10 items

Dimensions and weights

Net weight
143,16 g

Temperatures

Operating temperature
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1
SCIP
e5bbf197-73b5-420b-90c0-0173b7b3b6b7

General data

Connection 1
RJ45
Connection 2
IDC
Description of article
Variant 1 metal, with kink prevention
Colour
black
Housing main material
Zinc diecast
Insulation cross-section, min.
0,85 mm
Insulation cross-section, max.
1,6 mm
Category
Cat.6A / Class EA (ISO/IEC 11801 2010)
Contact surface
Gold over nickel
Connection diameter, solid
0.4...0.64 mm
Průřez připojení vodiče, pevný (AWG)
AWG 24...AWG 22
Leiteranschlussdurchmesser, feindrähtig
0.48...0.76 mm
Przekrój poprzeczny przyłącza przewodu, elastyczny (AWG)
AWG 26...AWG 22
MICE-Klassificering M
M3
MICE classification I
I3
MICE classification C
C1
MICE classification E
E3
Sheath diameter, min.
5 mm
Sheath diameter, max.
10 mm
Shielding
360° all-round enclosure
Protection degree
IP67
Plugging cycles
750
Ability to reconnect
≥ 10 cycles (for the same or larger cross-section)

Electrical properties

Dielectric strength, contact / contact
≥ 1000 V AC/DC
Dielectric strength, contact / shield
≥ 1500 V AC/DC

General standards

Application-specific communication cable facilities
PROFINET installation instructions
Certificate no. (cULus)
E316369
Connector standard
IEC 61076-3-106 Var. 1
IEC 60603-7-51

Classifications

ETIM 8.0
EC001121
ETIM 9.0
EC001121
ETIM 10.0
EC001121
ECLASS 14.0
27-44-03-90
ECLASS 15.0
27-44-03-90
