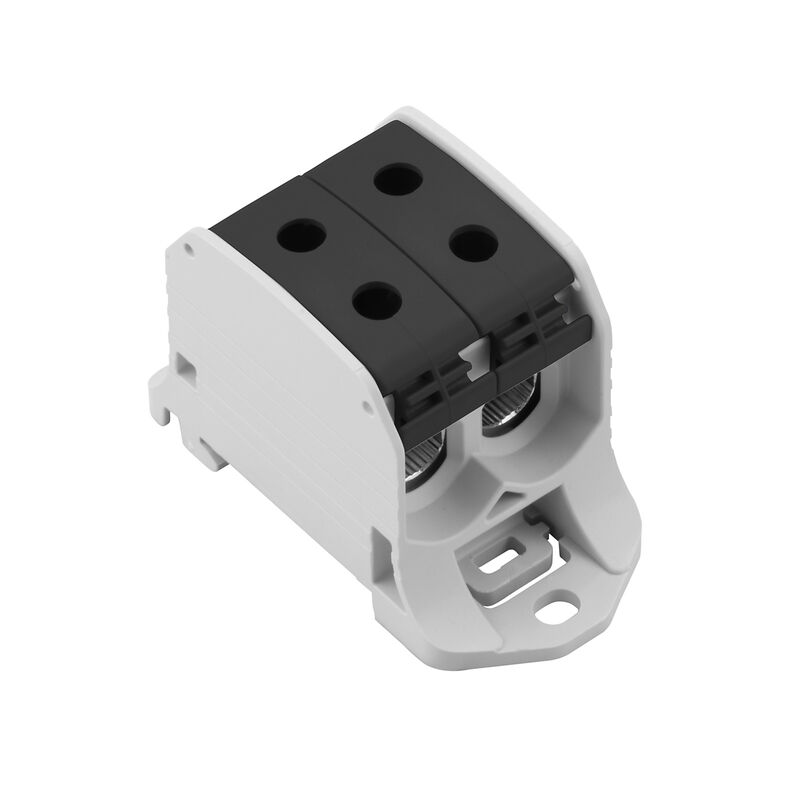

Potential distributor terminal, Screw connection, black, 50 mm², 150 A, 1000 V, Number of connections: 4, Number of levels: 1

Ürün No. 2502950000
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 6 İlgili ürünler 54
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) General Rating data UL rating data Important note Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/1eda190c-1eea-43bb-9dc8-922367553621/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Utförande
Potential distributor terminal, Screw connection, black, 50 mm², 150 A, 1000 V, Number of connections: 4, Number of levels: 1
Art.nr.
2502950000
Typ
WPD 230 2X50/2X50 BK
GTIN (EAN)
4050118516777
Qty.
5 adet

Dimensions and weights

Djup
45 mm
Depth (inches)
1,772 inch
Höjd
70 mm
Height (inches)
2,756 inch
Bredd
35,6 mm
Width (inches)
1,402 inch
Net weight
66 g

Temperatures

Lagertemperatur
-25 °C...55 °C
Omgivningstemperatur
-50 °C…75 °C
Continuous operating temp., min.
−50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
black
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certifikat nr. (ATEX)
CNEX18ATEX0016U
Certifikat nr. (IECEX)
IECEXNEX18.0010U
Max. voltage (ATEX)
880 V
Ström (ATEX)
150 A
Wire cross section max. (ATEX)
50 mm²
Max. voltage (IECEX)
880 V
Current (IECEX)
150 A

System specifications

Version
Screw connection
End cover plate required
No

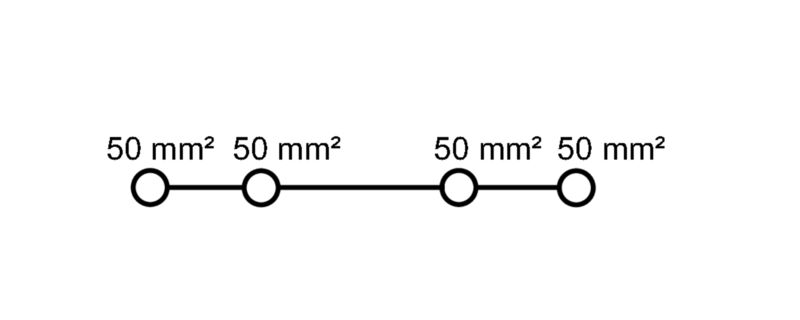

Number of potentials
1
Number of levels
1
Number of clamping points per level
4
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
PE function
No

Additional technical data

Explosion-tested version
Yes
Installation advice
Terminal rail / mounting plate
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Anslutningstyp, ytterligare anslutning
Screw connection

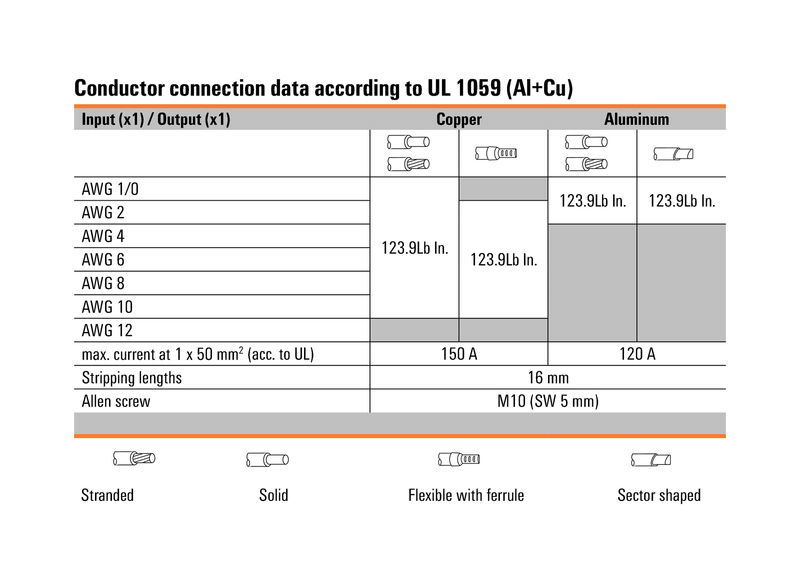

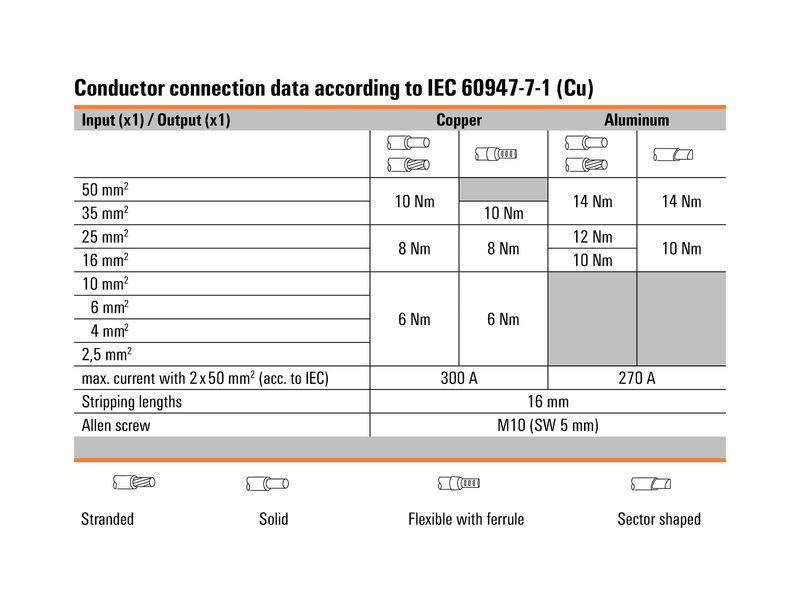

Conductors for clamping (rated connection)

Anslutningsområde, max.
50 mm²
Anslutningsområde, min.
4 mm²
Anslutningsriktning
on side
Anslutningstyp
Screw connection
Anslutningstyp 2
Screw connection
Antal anslutningar
4
Connection cross-section, stranded, max.
50 mm²
Connection cross-section, stranded, min.
4 mm²
Ledardiameter, AWG, max
AWG 1/0
Ledardiameter, AWG, min.
AWG 12
Wire connection cross section, finely stranded, max.
50 mm²
Wire connection cross section, finely stranded, min.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
4 mm²
Wire connection cross-section, solid core, max.
50 mm²
Wire connection cross-section, solid core, min.
4 mm²
导线连接截面积，多股细导线，带管状端头 DIN 46228/1，最小
4 mm²

General

Antal poler
1
Ledardiameter, AWG, max
AWG 1/0
Ledardiameter, AWG, min.
AWG 12
Montageskena obestyckad
TS 35
Monteringsanvisning
Terminal rail / mounting plate
Normer
IEC 60947-7-1
UL 1059
CSA

Rating data

Rated cross-section
50 mm²
Rated voltage
1 000 V
Rated AC voltage
1 000 V
Rated DC voltage
1 000 V
Nominal current
150 A
Current at maximum wires
150 A
Standards
IEC 60947-7-1
UL 1059
CSA
Volume resistance according to IEC 60947-7-x
0,21 mΩ
Rated impulse withstand voltage
8 kV

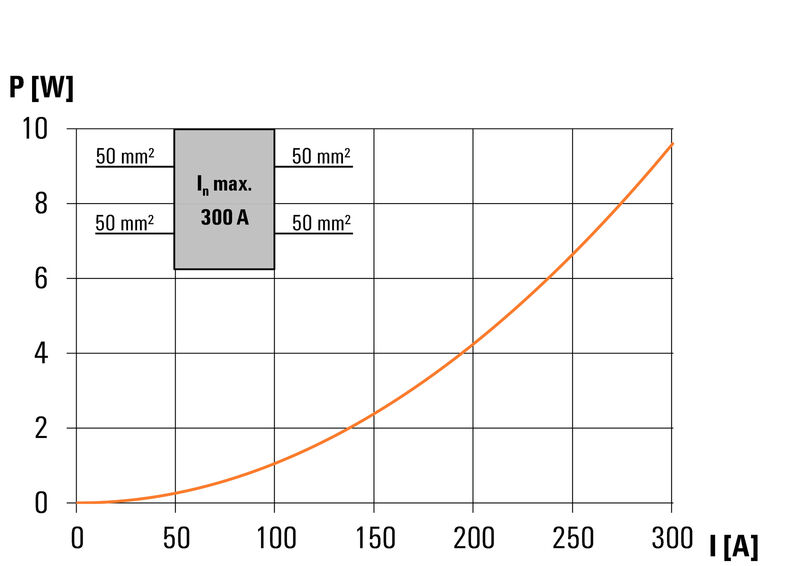

Power loss in accordance with IEC 60947-7-x
4,8 W
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693

Important note

Produktinformation
You will find additional information in the downloadsection of the onlinecatalogue

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-19
ECLASS 15.0
27-25-01-19
