CABTITE EP A 24/42 GY
CABTITE EP A 24/42 GY

CABTITE EP A 24/42 GY

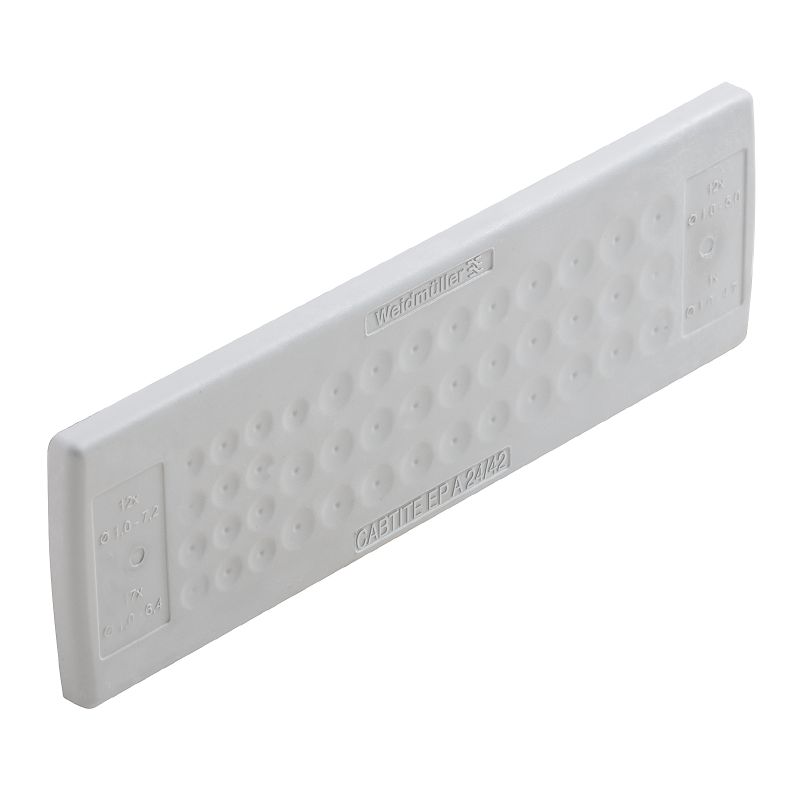

Cable entry plate, Cabtite (cable entry system), TPE, grey, Height: 44 mm, Width: 142 mm, Depth: 12 mm, -40 °C…90 °C, IP54

Tuotteen tunnus 2743600000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 1 Samankaltaiset tuotteet 18
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General information Number of connectable cables Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E223801

General ordering data

Version
Cable entry plate, Cabtite (cable entry system), TPE, grey, Height: 44 mm, Width: 142 mm, Depth: 12 mm, -40 °C…90 °C, IP54
Order No.
2743600000
Type
CABTITE EP A 24/42 GY
GTIN (EAN)
4064675123316
Qty.
10 items

Dimensions and weights

Depth
12 mm
Depth (inches)
0,472 inch
Height
44 mm
Height (inches)
1,732 inch
Width
142 mm
Width (inches)
5,591 inch
Wall thickness, min.
1,5 mm
Wall thickness, max.
2,5 mm
Net weight
49 g

Temperatures

Operating temperature
-40 °C...90 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

Basic material
TPE
Protection class (UL)
Type 1
Type 12
Protection degree
IP54
Silicone
No
UL 94 flammability rating
V-0

Number of connectable cables

Type of mounting
Snap-on
Number of connectable cables
42
Cable entries
  • Number:
    12
  • Cable diameter, min.:
    1 mm
  • Cable diameter, max.:
    7,2 mm
  • Cable type:
    Round cable
  • Number:
    17
  • Cable diameter, min.:
    1 mm
  • Cable diameter, max.:
    6,4 mm
  • Cable type:
    Round cable
  • Number:
    12
  • Cable diameter, min.:
    1 mm
  • Cable diameter, max.:
    5 mm
  • Cable type:
    Round cable
  • Number:
    1
  • Cable diameter, min.:
    1 mm
  • Cable diameter, max.:
    4,7 mm
  • Cable type:
    Round cable

Classifications

ETIM 6.0
EC002624
ETIM 7.0
EC002624
ETIM 8.0
EC002624
ETIM 9.0
EC002624
ETIM 10.0
EC002624
ECLASS 9.0
27-18-28-15
ECLASS 9.1
27-18-92-65
ECLASS 10.0
27-18-28-15
ECLASS 11.0
27-18-28-15
ECLASS 12.0
27-18-28-15
ECLASS 13.0
27-18-28-15
ECLASS 14.0
27-18-28-15
ECLASS 15.0
27-18-28-15
